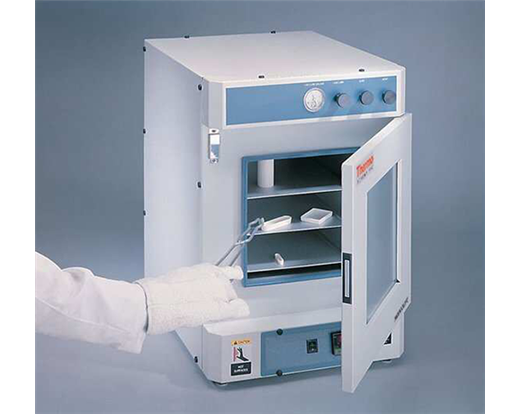

Ovens, Lindberg/Blue M™ Vacuum Oven, Thermo Scientific

Thermo Scientific™ Lindberg/Blue M™ovens include digital electronic control, built-in overtemperature protection, and a fully flexible vacuum/purge/release system for a range of uses. Ovens are designed for drying, curing, outgassing, aging, process control and other applications that require elevated temperature in reduced atmospheres or vacuum/purge with nonflammable and inert atmospheres.

Ovens are not suitable for use with hazardous vapor. For use with nonflammable, noncorrosive inert gases only.

• Maximum temperature: 260°C (500°F) with nominal uniformity of ±3.5% of setpoint
• Simultaneous LED display of setpoint and actual temperature with push-button view; resolution to within 1°C
• Keypad data entry and pull-out control module for easy service
• Independent overtemperature safety system factory set with reset pushbutton

• 1 inch (2.54cm) manifold, chamber rear, exterior, connects to pump or in-house vacuum source
• With inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port
• 1000 microns (1 torr) capacity
• Vacuum gauge, vacuum, gas and inlet valves located on front

• Corrosion-resistant stainless-steel cabinet includes three aluminum shelves with painted or stainless-steel finish
• Rear-mounted vacuum manifold connects to pump (not included) or in-house vacuum source
• Low-watt heating element extends oven life
• Heavy-gauge steel, dual-wall construction with fiberglass insulation for minimum heat loss in walls and door
• High-temperature silicone gasket is specially molded for a positive seal
• Magnetic latch for positive door seal (4.5 cu.ft. capacity models include mechanical latches)
• Viewing windows: 0.5 inch (1.3cm) thick in two smaller capacity models or 0.75 inch (1.9cm) thick in 4.5 cu.ft. model; permit observation of work in progress without loss of heat
• Stainless-steel exterior models come with double door—a solid outer door over inner window door
