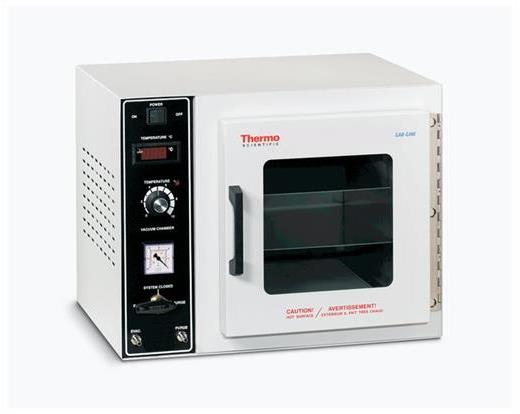

Ovens, Vacuum Oven, Model 3606, 3608, and 3618, Barnstead Lab-Line

Achieve maximum temperatures of 220°C (428°F) with Thermo Scientific™ Vacuum Ovens, while benefiting from two control configurations and display options. These ovens feature independent vacuum and purge needle valves. Radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications.

Small 3606 Models
Top-mounted independent evacuation and venting vacuum fittings

Medium and large 3608 and 3618 Models
Front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on the front of the unit

• Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications.
• 3” glass wool insulation prevents heat loss from working chamber.
• Silicone door gasket and positive latch door maintain seal at all vacuum levels.
• Exclusive polycarbonate safety shield protects door glass.
• Vacuum fittings require 0.25" I.D. tubing.
• Easy-to-clean #304 stainless steel chamber interior.
• Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
• Two removable stacking aluminum shelves included standard.
• Powder coated heavy gauge steel exterior construction.

• Operating temperature range from ambient +5 to 220°C.
• Vacuum level displayed on gauges from 0 to 30” Hg.
• Type 3606, 3608 and 3618 Vacuum Ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C and built-in over temperature protection.
• Models 3606 and 3606-1 have top-mounted independent evacuation and venting vacuum fittings; all other models feature front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on front on unit.
