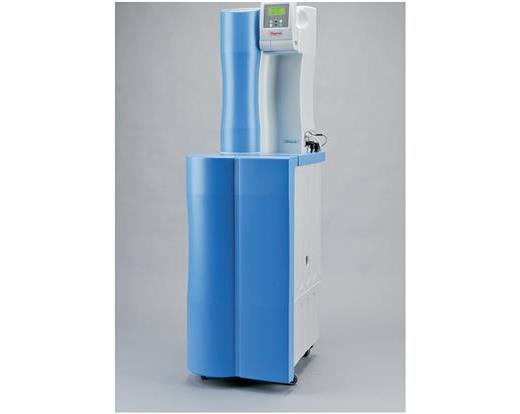

LabTower™ RO Water Purification System, Barnstead®
Thermo Scientific® Barnstead® LabTower™ RO water purification system delivers RO water from an integrated system. The Barnstead LabTower RO converts tap water into RO water with integrated 100L storage.
Advanced technology in a mobile design
- An ultra-modern microprocessor control provides easy-to-read system parameters
- Completely drainable integrated 100L high-purity water reservoir has a low-noise pressure booster as a standard component
- Mounted on casters, the compact LabTower RO system is an ideal pure water supply for any laboratory
- Ideally suited as a feed water source for dishwashers, autoclaves and general laboratory use
- A built-in pretreatment unit, consisting of a hardness stabilizer for protection of the reverse osmosis module from hardness formers, and an activated carbon/5µm combi-cartridge protects the system against free chlorine and particles, ensures the long service life of downstream purification stages
Compact and mobile design
- Two system options with permeate flows of 20 or 40L/hr.
- Stand-alone design with integrated 100L tank takes up ZERO bench space—casters allow for easy relocation
- Systems can be upgraded later to accommodate growing water capacity demands
Integrated 100L reservoir
- 100L RO water storage in a high-purity polyethylene PE opaque reservoir
- Adjustable reservoir volume can be programmed for times of low demand—dispense from the reservoir to supply autoclaves, dishwashers, ultrapure water systems, etc.
Easy-to-operate clear display
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
- Status of current operating mode clearly indicating “production”, “stand-by”, “cleaning” or “disinfection” modes
- Reservoir fill-level shown as %
- System parameters are code-protected to prevent accidental changes to set points
GLP-compliant documentation
- LabTower RO has been developed to fulfill GLP requirements
- Recorded and traceable data can be obtained by print out via the RS-232 interface and accessory printer
- Highly qualified and precise measurement of the conductivity is ensured by the cell constant of 0.16 cm-1
Optional Hand Dispenser
- Gain increased flexibility by adding a hand dispenser with 3 meter cord (Part #D626-92)
| |
| Operating pressure min./max. |
2 to 6 bar |
| Bacterial retention |
99% |
| Silica removal |
98% |
| Electrical requirements |
230V/50 Hz |
| Power consumption |
0.25kW |
| Feedwater connector |
3/4 inch NPT |
| Dimensions (D x W x H) |
580 x 450 x 1500mm |
| Weight |
50kg |
| Temperature min./max. |
2° - 35°C |
