Thermolyne Industrial Benchtop Muffle Furnaces, Thermo Scientific



You have not viewed any products recently.


View Larger
  • Furnace, Benchtop, Industrial, Type FD1500, Barnstead Thermolyne

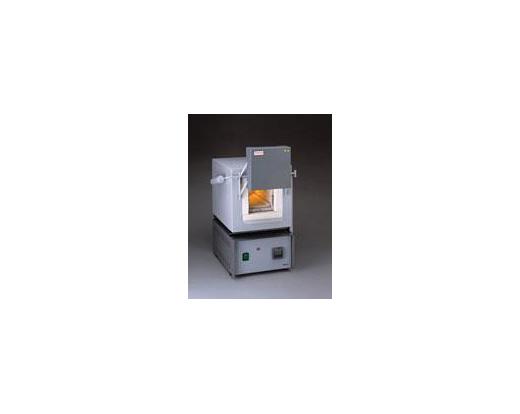

  • F942-1.jpg

  • alt view name
  • alt view name

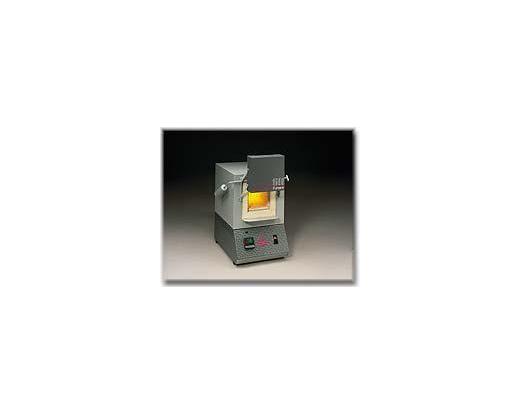

Thermolyne Industrial Benchtop Muffle Furnaces, Thermo Scientific

The rugged Thermo Scientific™ Thermolyne Benchtop Industrial Furnace is designed with multiple safety features and includes a choice of two temperature control options. Thermo Scientific Thermolyne Benchtop Industrial Furnaces reach a 1200°C maximum temperature. Heavy-duty firebrick insulation surrounds the opening for added durability.
  • Adjustable Alarm or Overtemperature Protection (OTP) setting can be used to protect the furnace or loaded chamber from excessive heat
  • Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition
  • Counter-weighted door swings upward, directing heat away from operator
  • Heavy-duty firebrick insulation surrounds chamber opening for added durability
  • Four individual embedded elements in special refractory cement permit excellent heat distribution in the chamber
  • Door safety switch protects operator by removing power to the heating elements upon opening the door
  • Rear-mounted 0.38 inch (0.95cm) diameter port for monitoring chamber temperatures with independent measuring devices
  • LED display simultaneously shows both setpoint and actual furnace temperatures in either °C or °F (programmable models only)
Single-setpoint Controller (B1)
  • Single ramp to setpoint and a dwell
  • Single display shows actual temperature or setpoint
8-step Programmable Controller (C1)
  • Ramps to vary heat-up rate and dwell cycles to hold temperature at set levels from 0.1 to 999.9 minutes
  • “Holdback” feature “holds” program until furnace temperature heats up or cools down to preprogrammed parameters—program will never outrun furnace performance
GSA


Includes: Oven, Platinel™ II thermocouple and a ceramic hearth plate to protect the bottom heating element.

Warranty and Service Offering: 12 months

Certifications: All units cUL, UL listed; -33 units also CE marked. 120V models require fixed wiring and are not supplied with a power cord.

Type Chamber Chamber WxHxD Overall WxHxD
FD1500 136 cu.inch 4 x 3.75 x 9 inch 11 x 25 x 18 inch



Temperature 100° to 1200°C
Capacity 2.2L (0.08 cu.ft.)
Interior D x W x H 22.8 x 10.1 x 9.5cm (9 x 4 x 3.75 inch)
Exterior L x W x H 45.7 x 27.9 x 41.9cm (18 x 11 x 16.5 inch)
Shipping Weight 23.5kg (52 lb.)
GSA Link

Ordering Info

Cat No Vendor Part No ControlPowerTemp Control Group Qty Price Qty UOM
F942-1 FD1535M Digital Single Setpoint120V 50/60Hz; 18.6A; 2230WB In Stock 1 $3,369.00 EA
F942-2 FD1530M Digital Single Setpoint240V 50/60Hz; 9.3A; 2230WB In Stock 1 $3,369.00 EA
F942-4 FD1545M Digital Programmable 1-Program/8-Segments120V 50/60Hz; 18.6A; 2230WC In Stock 1 $3,998.00 EA
F942-5 FD1540M Digital Programmable 1-Program/8-Segments240V 50/60Hz; 9.3A; 2230WC In Stock 1 $3,924.00 EA
F942-7 FD1530M-33 Digital Single Setpoint240V 50/60Hz; 6.5A; 1560WB In Stock 1 $3,369.00 EA
F942-8 FD1540M-33 Digital Programmable 1-Program/8-Segments240V 50/60Hz; 6.5A; 1560WC In Stock 1 $3,900.00 EA

Options

Cat No DescriptionOverall WxHxD Qty/UOM Price Qty UOM
F942-10 Hearth Tray4 x 0.5 x 3.3 in In Stock 1 $37.70 EA
F942-11 Hearth Tray3.9 x 0.75 x 8 in In Stock 1 $54.30 EA
