Balances, Analytical, Galaxy HR-A/HR-AZ Series, A&D Weighing

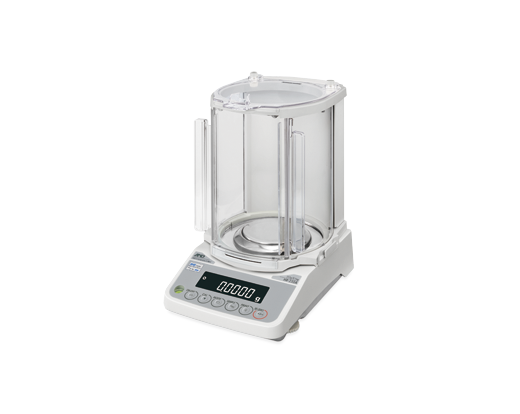

Galaxy Analytical HR-A / HR-AZ Balance Series
The HR-A Series of Compact Analytical Balances are fast, accurate and reliable. They feature solid construction based on the A&D Super Hybrid Sensor (SHS) technology which has delivered consistent weighing results day-in and day-out in thousands of laboratories and production facilities worldwide. The HR-AZ models add highly reliable internal calibration. One-touch automatic calibration ensures consistent balance accuracy.
- Removable, shatterproof breeze break with antistatic coating
- Compact footprint: 20x30cm / 8x12 inch
- GLP/GCP/LIMS/ISO Compliant
- 14 weighing units and functions: g, mg, oz, ozt, ct, dwt, GN, mom, tael, tola, %, pieces,density, statstical function and user-defined units
- Automatic internal calibration (HR-AZ)
- Underhook weighing
- Clear, reverse-backlit LCD
| Catalog No |
B125-8 / B125-18 |
B125-9 / B125-19 |
B125-10 / B125-20 |
| Model |
HR-100A / HR-100AZ |
HR-150A / HR-150AZ |
HR-250A / HR-250AZ |
| Weighing capacity |
102g |
152g |
252g |
| Minimum weighing value |
0.1mg |
| Repeatability/Std Dev |
0.01mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2mg |
±0.3mg |
| Stabilization Time (set to FAST) |
Approx. 2 second* |
| Sensitivity Drift |
±2ppm/°C (10°C-30°C/50°F-86°F) |
| Calibration |
HR-A |
External |
| HR-AZ |
Internal |
| Clock and calendar function |
HR-A |
No |
| HR-AZ |
Yes |
| Operating temperature |
5 to 40°C (41 to 104°F), 85%RH or less (non-condensing) |
| Display Refresh rate |
5 times / second or 10 times / second, selectable |
| Measurement Units (Display mode) |
g, mg, oz, ozt, ct, momme, dwt, GN, tael, tola,
pieces (counting mode), % (percent mode), DS (density mode), user definable functions |
| Counting mode |
Minimum unit mass = 0.1mg / Number of samples = 10, 25, 50 or 100 pieces |
| Percent mode |
Minimum 100% ref. mass = 10.0 mg / Minimum 100% display = 0.01%, 0.1%, or 1% (depends on the reference mass stored) |
| Standard interface |
RS-232C standard (see Accessories for more interface options) |
| Applicable calibration weight value |
100g, 50g |
150g, 100g, 50g |
250g, 200g, 100g, 50g |
| Weighing pan diameter |
Ø90 mm |
| External dimensions |
198 (W) x 294 (D) x 315 (H) mm / 8 (W) x 12 (D) x 12.4 (H) in |
| Net weight |
HR-A |
3.5 kg / 7.8 lb |
| HR-AZ |
3.9 kg / 8.9 lb |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
Options
| Cat No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| B128-9 |
*USB Interface with cable (Uni-directional)
*Options B128-9, B128-10, and B128-13 can NOT be combined and are factory installed, select only one. |
In Stock |
1 |
$105.00 |
|
EA |
| B128-10 |
*Ethernet Interface with WinCT-Plus software
*Options B128-9, B128-10, and B128-13 can NOT be combined and are factory installed, select only one. |
In Stock |
1 |
$340.00 |
|
EA |
| B128-13 |
*Built-in Rechargeable Battery
*Options B128-9, B128-10, and B128-13 can NOT be combined and are factory installed, select only one. |
In Stock |
1 |
$380.00 |
|
EA |
| B125-6 |
Anti-Theft Device |
In Stock |
1 |
$90.00 |
|
EA |
| B121-19 |
Density Determination Kit |
In Stock |
1 |
$935.00 |
|
EA |
| B128-24 |
Static Eliminator |
In Stock |
1 |
$1,300.00 |
|
EA |
| B147-46 |
Electrostatic Fieldmeter |
In Stock |
1 |
$1,730.00 |
|
EA |
| B147-47 |
Weighing Data Logger |
In Stock |
1 |
$360.00 |
|
EA |
| B147-48 |
Calibration Weight Tweezers |
In Stock |
5 |
$220.00 |
|
PK |
| B147-41 |
Compact Printer |
In Stock |
1 |
$540.00 |
|
EA |
| B128-14 |
Ethernet Adapter D-Sub 9 with WinCT Plus (Serial/Ethernet converter) |
In Stock |
1 |
$620.00 |
|
EA |
| B147-49 |
Universal Remote Display |
In Stock |
1 |
$315.00 |
|
EA |
| B147-50 |
Remote Controller |
In Stock |
1 |
$750.00 |
|
EA |
| B128-15 |
Main Unit Clear Protective Cover |
In Stock |
1 |
$20.00 |
|
EA |
| B147-55 |
AC Adapter (120V / 220V) - Standard with unit |
In Stock |
1 |
$50.00 |
|
EA |
| B147-56 |
USB to 9-pin RS-232 Converter |
In Stock |
1 |
$65.00 |
|
EA |
