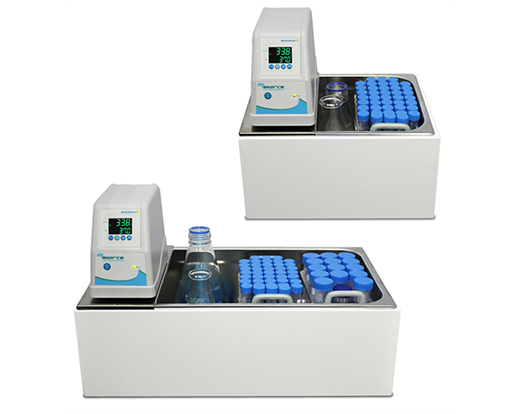

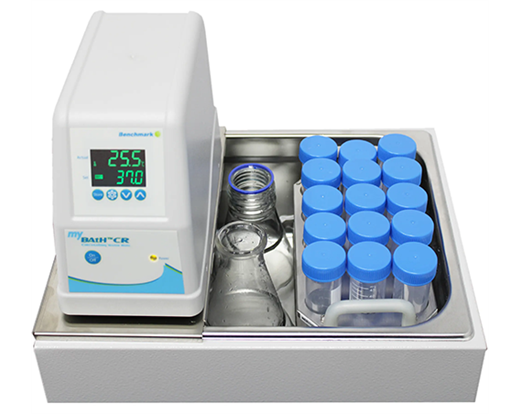

Water Baths, Circulating Water Bath, myBath™, Benchmark
View Larger
Water Baths, Circulating Water Bath, myBath™, Benchmark
Circulating Water Baths
Benchmark’s myBath CR circulating water baths offer the same accuracy and convenience of our static myBath™ series, but with faster heat ramping and enhanced stability/uniformity. With constant circulation, water temperature is uniform throughout the chamber, eliminating “cold-spots” and allowing for quick recovery following insertion of frozen samples. The myBath CR utilizes digital PID processing control that accurately maintains and adjusts the temperature to the set parameters. Once the desired temperature has been programmed, the instrument begins to heat, while indicating both the set and actual temperatures on the large, digital display.
The chamber and heating coil are constructed of stainless steel, resulting in easy cleaning. Optional accessories are available for securing test-tubes and an optional gabled lid can be purchased to improve efficiency.
- Constant water circulation ensures even temperature distribution
- Digital PID processing for precise temperature control
- Stainless steel chamber and coil
- Ambient +5° to 100°C
- Stainless steel Chamber and Circulating Coil
- Optional gabled cover and stainless steel test tube racks
| |
H139-52/52E |
H139-53/53E |
| Capacity |
10L |
20L |
| Temperature Range |
Ambient +5 to 100°C |
| Temperature Stability |
+/- 0.2°C |
| Temperature Uniformity |
0.1°C |
| Exterior Dimensions |
13.2 x 10.8 x 11.9 inch
33.5 x 27.5 x 30.3cm |
21.2 x 13.4 x 11.9 inch
54 x 34 x 30.3cm |
| Interior Dimensions |
11.8 x 9.4 x 6 inch
30 x 24 x 15cm |
19.2 x 11.4 x 6 inch
49 x 29 x 15cm |
| Weight |
19.8 lbs / 9kg |
25.3 lbs / 11.5kg |
| Electrical |
115 / 230V, 50-60Hz |
| Power Draw |
1200W |
| Warranty |
2 Years |
