Washers, Glassware Washer, Hei-Dro Clean, Heidolph

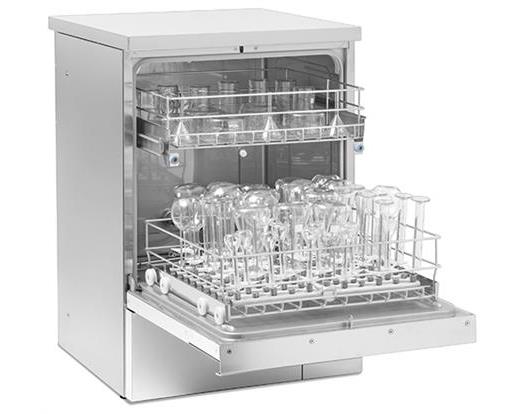

Hei-Dro Clean 165UC Glassware Washer
Introducing the Heidolph Tuttnauer Hei-Dro Clean 165UC Glassware Washer! This new under counter glassware washer comes with an assortment of features and accessories to meet all your laboratory washing needs. The Hei-Dro Clean 165UC Glassware Washer is designed to sanitize, clean, and dry all labware.
- Containers- Beakers, bottles, graduated cylinders, and ampoules
- Narrow-neck glassware- Erlenmeyer flasks, evaporation and receiving flasks, Soxhlet’s, and condensers
- Other Glassware- Petri dishes, funnels, test tubes, Lids, spatulas, magnetic laboratory stir bars, stoppers, etc.
Customizable Control
The unit utilizes a color touch screen which provides easy operation and control of wash loads helping to ensure reproducible results. During a cycle, all wash parameters such as water temperature, number of stages, the active stage of the cycle, wash and rinse times, and cycle length are shown on the display.
Reproducible Results at the tip of your Fingers
Once a cycle is completed, HEPA-filtered forced air circulates throughout the chamber to dry the load. The unit comes with 20 preset programs and has the capacity to store up to 20 user-created custom programs. Different interfaces are available for on-board data logging, connecting to a PC, and an external printer.
- Large viewing window of entire washing chamber

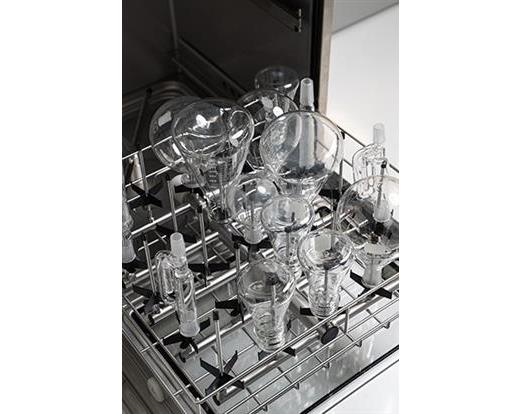

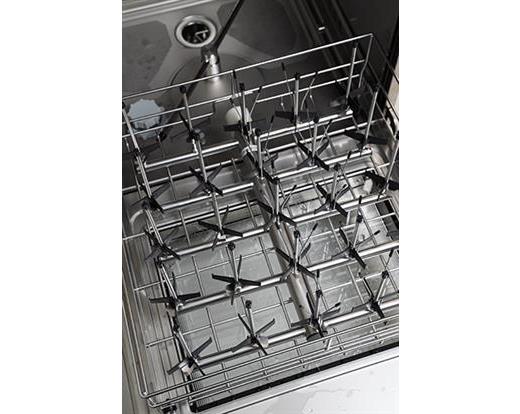

- Lower spindle rack with 25 positions and 10 glassware holders
- Upper standard rack
- 20 preset programs (up to 20 user-created custom programs)
- Built-in water softener
- Purified water rinse
- Spray arm monitoring
- HEPA filter– HEPA-filtered forced air drying (through spindles with spindle rack)
- RS232 Port for connection to an external printer
- USB-B Port for connection to a PC
- USB-A Port for on-board datalogging
- Additional accessories, inserts, and spindles available
| Cold Water |
Temperature |
Min. 5°C - Max. 20°C |
| Hot Water |
Temperature |
Min. 45°C - Max. 70°C |
| RO/DI Water |
Temperature |
Min. 5°C - Max. 20°C |
| Water Pressure and Flow |
Recommended flow pressure |
44 psi (Min. 29 psi to Max. 73 psi) |
| Connection thread (with flat gasket) |
G 3/4 inch (BSPP 3/4 inch) |
| Length of water inlet hose |
1.85 m/6.07’ |
| Max drain water temperature |
93°C/199°F |
| Drain |
Max pressure |
2.9 psi |
| Max drain pump head height from floor level |
1 m/3.28’ |
| Max drain hose delivery |
20 l/min. |
| Washer Dimensions |
Chamber Dimensions
(w x h x d) |
21.7 x 23.6 x19.7 inch |
External Dimensions
(w x h x d) |
23.6 x 33.3 x 25.6 inch |
| Power Supply |
Voltage |
230V (208 - 240V), 3-phase, 60 Hz |
| Plug type |
NEMA L15-30 |
| RO Water System |
Hei-Dro Clean 165UC |
9.2 gallon expansion tank |
| Includes |
Washer |

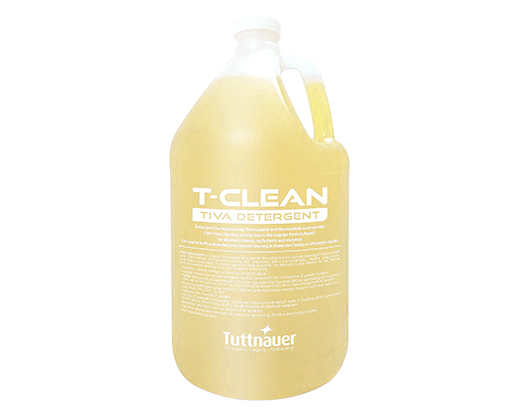

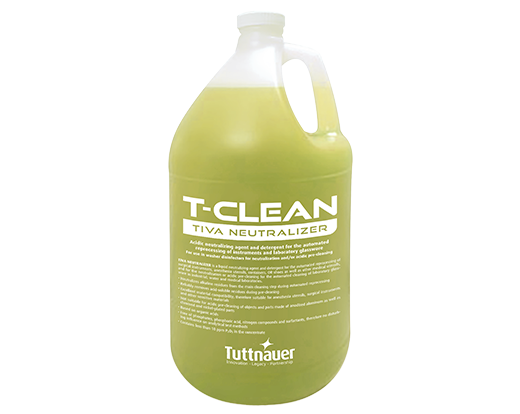

Detergent (C635-5); Neutralizer (C635-7); Water Softener Salt |
| Bundles |
Detergent (C635-5); Neutralizer (C635-7); Water Softener Salt; Autoclave Stand (A552-15); Chamber Brite; Printer Paper- Pkg. of 5 (A552-14) |
