Stirrers, Overhead Stirrer, Stirrer Systems

home > stirrers > stirrers - specialty > stirrers, overhead stirrer, stirrer systems
Print Recently Viewed


You have not viewed any products recently.

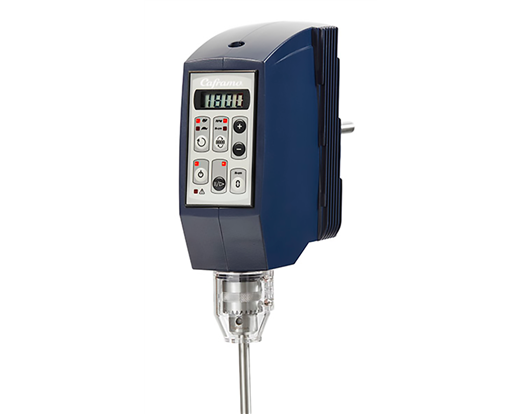

Ultra Torque Model BDC1850 Stirrer
View Larger
Ultra Torque Model BDC1850 Stirrer
  • System stand with two threaded holes for A300 rod
  • Collapsible Straight blade impeller
  • Pitched Blades (blade only)
  • Passivated stainless steel shaft for impeller blades
  • Stirrer Fastening Clamp
  • Ultra Torque Model BDC1850 Stirrer

  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name

Stirrers, Overhead Stirrer, Stirrer Systems

Laboratory Overhead Stirrers
Make your job easy with fully featured mixer that are powerful, portable plug-in installation. Capture data- speed, torque, time, date. Mix batches- Media, buffers, creams with no motor burn out. Build into a modular system and control by a PLC- LabVIEW compatible. Safety certified to applicable standards with a 3 Year Warranty. Immediate customer service and technical application support. In stock quality product manufactured in North America.

Ultra Torque- S472-3
Popular high torque model for creams, polymers, inks and mining pilot plants. Digital display of speed and torque, adjustable chuck up to 10mm (3/8 inch), quiet and maintenance free.

Ultra Speed- S472-11
Provides the high speeds ideal for emulsions, homogenization, and high sheer dispersion. Digital display of speed and torque, adjustable chuck up to 10mm (3/8 inch), quiet and maintenance free.

Universal- S472-12
General purpose stirrer with versatility for buffers, media, gels, lotions and slurries. Digital display of speed and torque, adjustable chuck up to 10mm (3/8 inch), quiet and maintenance free.



  • Brushless DC motor
  • Totally enclosed metal housing
  • Electronic control
  • Smart two-speed transmission
  • Through shaft
  • Chuck guard included
  S472-3 S472-11 S472-12
Speed 12-1800rpm 40-6000rpm 20-3000rpm
Volume Maximum 80L (21 Gallons) 25L (6.5 Gallons) 60L (15.5 Gallons)
Viscosity Maximum 90,000 mPas (90,000 cP) 20,000 mPas (20,000 cP) 50,000 mPas (50,000 cP)
Output Power 150 Watts (1/5 hp)
Speed Display Yes
Speed - Low Range 12-360rpm 40-1200rpm 20-600rpm
Speed - High Range 360-1800rpm 1200-6000rpm 600-3000rpm
Speed Accuracy ±1 rpm or ±1% of reading
Torque Display Yes
Torque Max- Low Speed 568 Ncm (50 in-lbs = 800 in-oz) 170 Ncm (15 in-lbs = 240 in-oz) 341 Ncm (30 in-lbs = 480 in-oz)
Torque Max- High Speed 114 Ncm (10 in-lbs = 160 in-oz) 34 Ncm (3 in-lbs = 48 in-oz) 68 Ncm (6 in-lbs = 96 in-oz)
Torque Accuracy ±12 Ncm (±1 in-lb) or ±5% of reading
Zero Torque Yes
Timer No
Through Shaft Yes
Chuck Maximum Shaft Diameter 10mm (3/8 inch)
Chuck Guard Yes
Rotation Direction Clockwise only
Housing Cast aluminum
Weight 5kg (11 lb)
Voltage 120 volt/220 volt
Frequency 50/60 Hz
Ambient Temperature Operation 5-40°C (41-104°F)
Relative Humidity Operation 80%
Approvals CSA listed to Canada and US standards
Warranty 3 years

Ordering Info

Cat No Model NumberCapacitySpeed RangeViscosityPower Qty Price Qty UOM
S472-3 BDC185080L (21 gallon)12-1800rpmmax 90,000120-220V / 50/60 Hz In Stock 1 $2,023.00 EA
S472-11 BDC601525L (6.5 gallon)40-6000rpmmax 20,000120-220V / 50/60 Hz In Stock 1 $2,023.00 EA
S472-12 BDC303060L (15.5 gallon)20-3000rpmmax 50,000120-220V / 50/60 Hz In Stock 1 $2,023.00 EA

Options

Cat No Description Qty/UOM Price Qty UOM

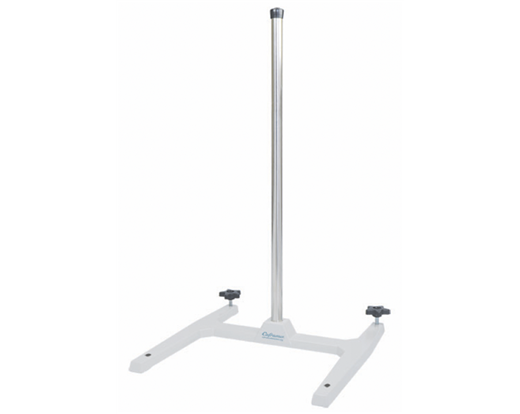

S472-27 System Stand- 416 x 430mm (16-3/8 x 16-15/16 inch); Rod- 25 x 965mm (1 x 38 inch) In Stock 1 $463.10 EA

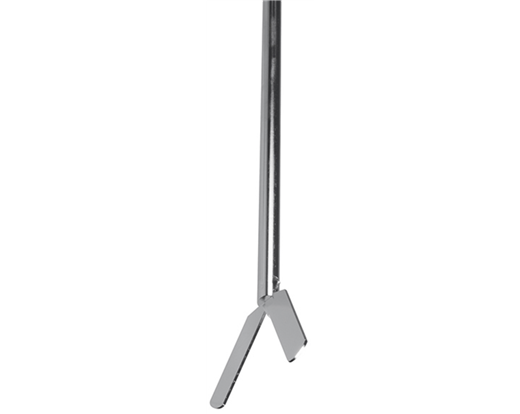

S472-21 Blade- Collapsible, Radial Flow, 10-90mm (3/8-3-1/2 inch); Shaft- 8 x 400mm (5/16 x 16 inch) In Stock 1 $237.60 EA

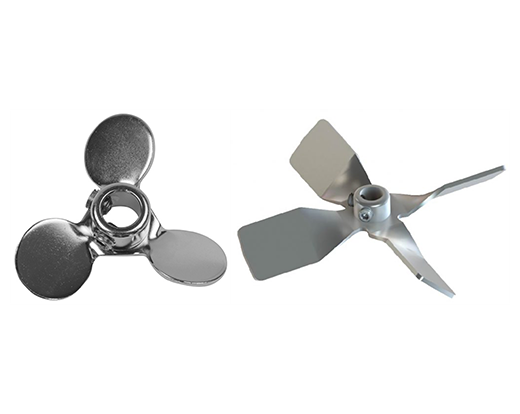

S472-22 Blade- Pitched (blade only), Axial Flow, Bore- 8mm (5/16 inch) Blade Diameter- 50mm (2 inch), Left hand rotation In Stock 1 $77.55 EA
S472-25 Blade- Pitched (blade only), Axial Flow, Bore- 8mm (5/16 inch) Blade Diameter- 100mm (4 inch), Left hand rotation In Stock 1 $153.45 EA

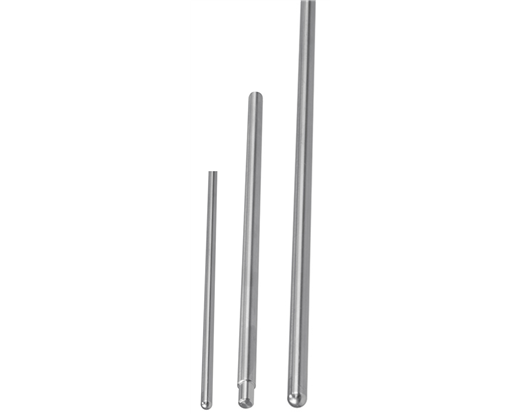

S472-24 Shaft- Passivated 316L SS, 8 x 305mm (5/16 x 12 inch) In Stock 1 $58.00 EA
S472-26 Shaft- Passivated 316L SS, 9.5 x 457mm (3/8 x 18 inch) In Stock 1 $93.00 EA
S472-23 Shaft- 316 Stainless Steel, 8 x 610mm (5/16 x 24 inch) In Stock 1 $122.00 EA

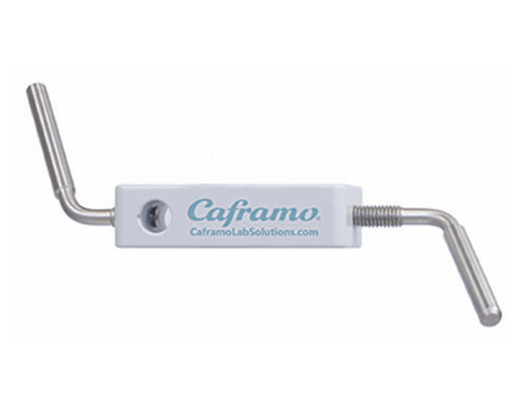

S472-28 Fastening Clamp- Cast zinc-aluminum alloy, Support Rod Diameter Max- 12.5mm (1/2 inch), Stand Rod Diameters- 15-30mm (9/16-1-3/16 inch) In Stock 1 $130.90 EA
