Stirrers - Hot Plate, SuperNuova+, US and Alternative plug type, Thermo Scientific
The new Thermo Scientific™ SuperNuova+™ Stirring Hotplate series provides reliable performance, dependable safety and simple operation. Units are available in two sizes, 7" and 10", including a multi-position model with optimized controls and settings for applications that demand advanced precision.
Intuitive design
- Top plate choices in ceramic or aluminum

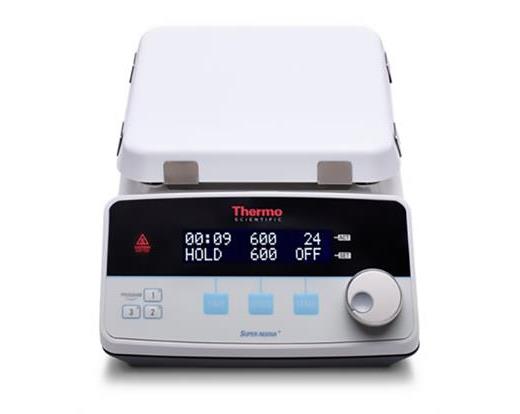

- Easy-to-read LED display for heating and stirring
- Raised display design protects electronics from spills
- Ability to set programs (ramp/dwell) as well as save settings

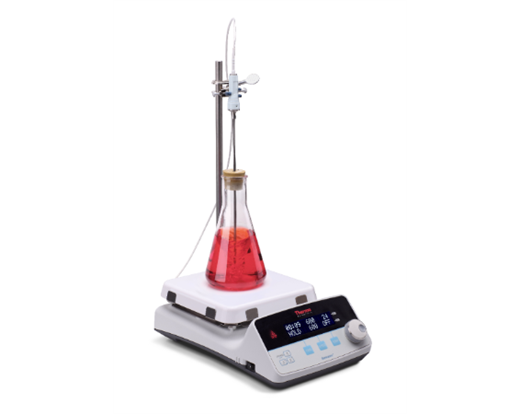

- Stainless steel PT1000 temperature probe, supporting rod and clamp kit included with both hotplate and stirring hotplate
- Stir bar comes standard with stirrer and stirring hotplate models

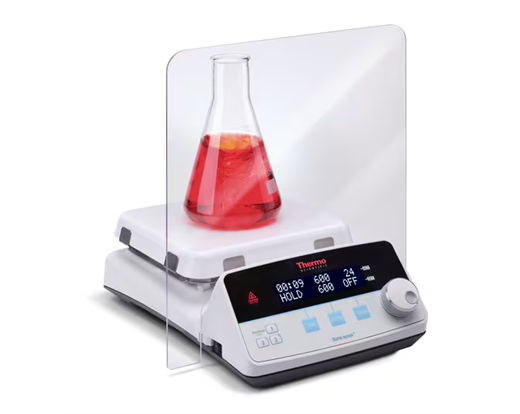

- Optional PT1000 temperature probe and splash guard protection shield
Advanced technology
- StirTrac features innovative engineering for slow-speed stirring, consistent speed control, and stronger magnetic coupling
- HOT TOP warning system designed to protect from accidental burns with prominent display when heating surface is above 50°C (122°F)
- Easy read Character LCD of temperature, rpm and time
- Excellent slow-speed stirring, consistent speed control and stronger magnetic coupling
- Hot Top caution when heating surface >50°C (122°F)
- Adjustable Over-temperature protection
- Adjustable 1 degree increments
- Ability to program (ramps/dwells)
- 2 sizes: 7”, 10” (Ceramic)
- 2 top plate choices: Ceramic, Aluminum
- PT100 stainless steel temperature probe included
- Temperature display resolution connected with probe: <100C, 0.1 degree; >100C, 1 degree
Optional: Temperature Probe (P1000), Splash guard/safety protection shield, rod and clamps
| |
H195-54 |
H195-55 |
H195-56 |
H195-57 |
H195-58 |
H195-59 |
| Top Plate Material |
Aluminum |
Ceramic |
| Power |
100-120V, 50/60Hz |
230V, 50/60Hz |
100-120V, 50/60Hz |
230V, 50/60Hz |
100-120V, 50/60Hz |
230V, 50/60Hz |
| Max. Temperature |
300°C |
450°C |
400°C |
| Heating Surface Area (metric) |
7.25 x 7.25" (18.4 x 18.4cm) |
10.25 x 10.25"
(26 x 26cm) |
| Stirring Range |
50 to 1,500rpm |
| Cert./Compliance |
cCSAus, CE |
Dimensions
(L x W x H) |
13 x 8.2 x 3.8" (33 x 20.8 x 9.7cm) |
16.2 x 11.3 x 4"
(41.1 x 28.7 x 10.2cm) |
| Plug Type |
US |
EU / UK / AUS / CHN |
US |
EU |
AUS / CHN |
UK |
| Weight (metric) |
11.0 lb (5.0kg) |
12.1 lb (5.5kg) |
11.2 lb (5.1kg) |
12.3 lb (5.6kg) |
16.5 lb (7.5kg) |
17.6 lb (8.0kg) |
