Spectrophotometers, Fluorometer, Smart-Q™
Smart-Q Fluorometer and Accessories
The Accuris™ Smart-Q 100 & Smart-Q 800 Fluorometers are designed for the precise quantification of DNA, RNA, and protein samples. By utilizing well-established methodologies for fluorescence detection, the Smart-Q Fluorometers provide higher specificity and enhanced accuracy compared to the traditional method of UV-absorbance detection. Accurate results are particularly crucial in workflows involving
- Next Generation Sequencing
- PCR
- Transfection
- Western blotting
- Immunoassays

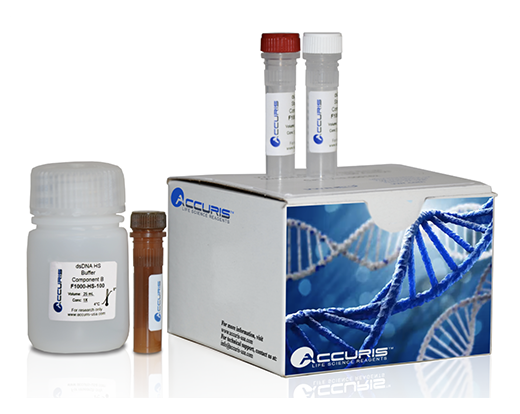

The Smart-Q Fluorometers are engineered to achieve optimal performance with Accuris’ Fluorescent DNA Quantification Kits and assay tubes; however, they also maintain compatibility with a range of kits offered by various other suppliers.
Options for Throughput

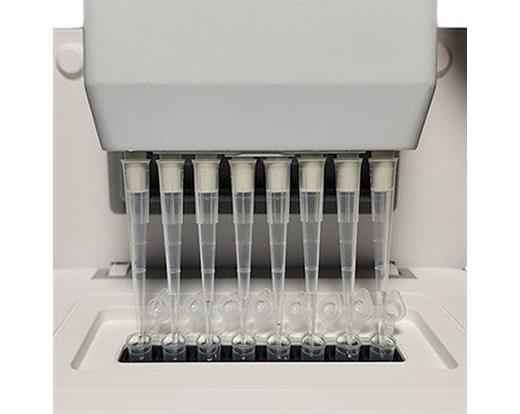

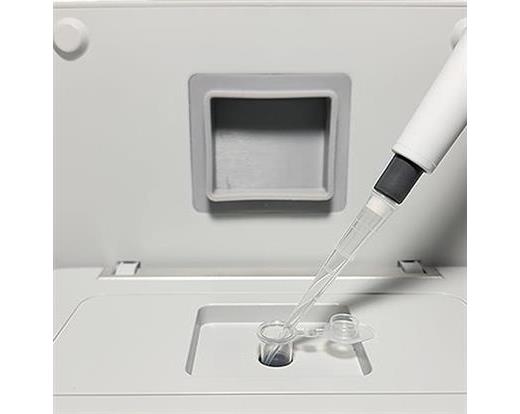

Smart-Q 100 allows for single-sample processing in 0.5mL assay tubes. This renders the Smart-Q 100 ideal for laboratories processing fewer samples. The Smart-Q 800 caters to high-throughput workflows and allows for up to eight samples to be evaluated at once using individual 0.2mL tubes or 8 x 0.2mL strips tubes. The use of a standard 8-channel pipettor can streamline both the reagent preparation and sample transfer, making the Smart-Q 800 an efficient solution for workflows requiring parallel processing of multiple samples.
- Sensitive quantitation down to 0.1pg/ul ds DNA

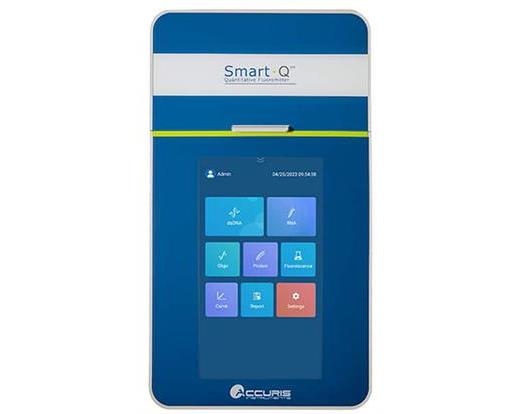

- Large color touch screen for programming and operation

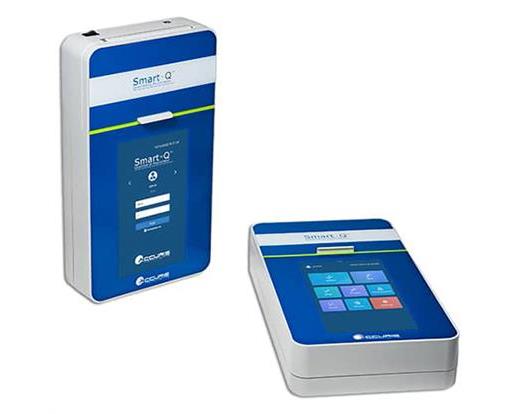

- Two models for single or 8-sample processing
- Built-in reagent calculators for sample preparation
- Compact and portable (11 x 6 inch footprint)
- Smart-Q Fluorometers include two distinct models, each designed to meet specific laboratory requirements
| Model |
Smart-Q™ 100 Fluorometer (S285-30/E) |
Smart-Q™ 800 Fluorometer (S285-31/E) |
| Display |
7.0-inch, color touch screen |
| Dynamic Range |
5 orders of magnitude |
4 orders of magnitude |
| Light Source |
Blue and Red LED |
| Excitation Wavelengths |
Blue: 460 ± 20nm and Red: 625 ± 20nm |
| Emission Wavelengths |
Green: 525 – 570nm and Red: 670 – 725nm |
| Stability |
≤1.5% |
| Detector |
Photodiodes (300-1000nm) |
| Measurement Speed |
≤5 seconds |
≤6 seconds |
| Consumable type |
0.5mL assay tubes |
0.2mL assay tubes (single and 8-tube strip) |
| Input Voltage |
24 VDC 2A |
| Dimensions (WxDxH) |
6.34 x 11.30 x 2.40 inch (16.1 x 28.7 x 6.1cm) |
6.3 x 11.3 x 3.0 inch (16.1 x 28.7 x 7.6cm) |
| Weight |
1.6kg / 3.5lbs |
2.0kg / 4.4lbs |
