Refrigerators, TSG Series, General Purpose Chromatography Refrigerator, Thermo Scientific

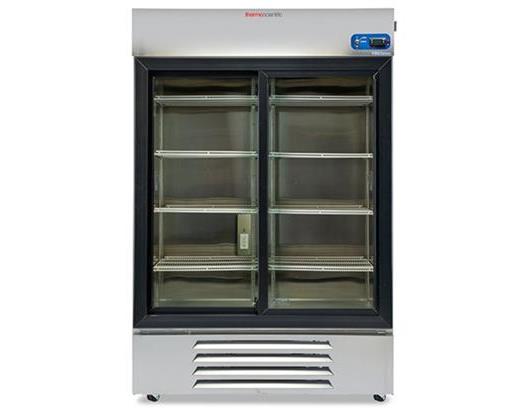

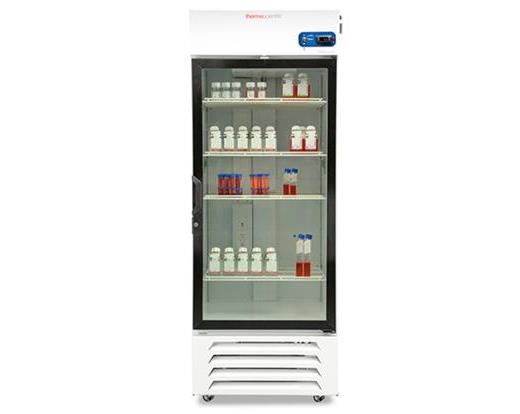

TSG Series General Purpose Chromatography Refrigerators
Thermo Scientific™ TSG Series general-purpose chromatography refrigerators are designed with your needs in mind. The TSG Series is ideal for the demanding requirements of daily use in research, clinical, and industrial laboratories storing non-critical products such as reagents, media, proteins, and other samples requiring a 2°to 10°C controlled environment.
- Hydrocarbon safety sensor ensures cargo and lab personnel are kept saf
- Featuring a wide range of cabinet sizes from 30 cu.ft. to 72 cu.ft.
- Whisper-quiet operation
- ENERGY STAR certified
- Temperature, door ajar (except R203-122), and power failure (with battery back-up) alarms
- Green, natural refrigerants
- Adaptive defrost
- Glass (double pane) or solid door configurations
- Choice of white painted interior and exterior, or stainless steel interior and gray exterior
- Digital controller
- Rear access port
- Remote alarm contacts
- Keyed door lock(s)
- LED interior lighting
- Low heat output
- 2 years parts and labor, plus 3 year compressor warranty
| Industry Leading Parts and Labor Warranty: 4 years; Industry Standard Compressor Warranty: 5 years |
| |
R203-121 |
R203-140 |
R203-122 |
R203-141 |
R203-124 |
R203-142 |
R203-143 |
R203-144 |
| Capacity |
27cu.ft. (764L) |
45cu.ft. (1274L) |
49cu.ft. (1387L) |
72cu.ft. (2038L) |
Exterior Dimensions
(L x W x H) |
32 x 30.75 x 81 inch
(81.3 x 78 x 81.3cm) |
32 x 52.7 x 81 inch
(81.3x134x81.3cm) |
32 x 52.7 x 81 inch
(81.3x134x81.3cm) |
32 x 75.7 x 81 inch
(81.3x192.4x81.3cm) |
| Exterior Finish |
White |
Gray |
White |
Gray |
White |
Gray |
White |
Gray |
Interior Dimensions
(D x W x H) |
28.5 x 27 x 61.8 inch
(72.4x 68.6x 157cm) |
27 x 49 x 61.8 inch
(68.6x124.5x157cm) |
28.5 x 49 x 61.8 inch
(72.4x124.5x157cm) |
28.5 x 72 x 61.8 inch
(72.4x182.9x157cm) |
| Interior |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
| Shipping Weight |
386 lb (175kg) |
561 lb (255kg) |
597 lb (271kg) |
733 lb (332kg) |
| Electrical Requirements |
115V / 60Hz / 3A |
115V / 60Hz / 5A |
115V / 60Hz / 8.8A |
115V / 60Hz / 9.9A |
| Ports |
1 Rear access port and 2 side access ports |
| Temperature Range |
2° to 10°C |
| Plug Type |
(2X) NEMA 5-15P |
| Doors, Door Style |
1, Glass |
2, Sliding Glass |
2, Glass |
3, Glass |
| Access Security |
Keyed door lock |
| Shelves |
4 full plus 3 half |
8 full plus 2 half |
12 full plus 2 half |
| Shelf Capacity |
Full: 100 lbs (45kg); Half: 50 lbs (22.5kg) |
| Temperature Control |
Digital Microprocessor |
| Refrigerant |
R290 |
| Defrost |
Adaptive Defrost |
| Certifications/Compliance |
cULus, Energy Star |
