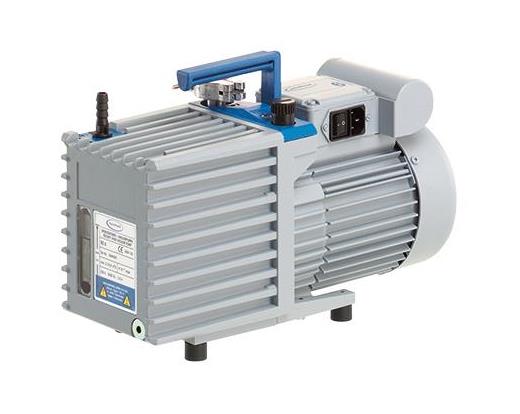

Pumps, Rotary Vane Pump, BrandTech®
Rotary Vane Pumps
For applications requiring a greater vacuum depth than an oil-free diaphragm pump can provide, BrandTech offers rotary vane pumps. VACUUBRAND® Rotary Vane Vacuum Pumps have been designed from the ground up for the best performance in laboratory applications. They are extremely low noise and low vibration, even compared to earlier VACUUBRAND rotary vane models.
- Rugged- Exceptional tolerance to water vapor with minimal impact on ultimate vacuum.
- Energy Efficient- Low power consumption and low levels of waste heat generation compared to competitive models.
- Compact- Take up less space and weigh less than comparable models.
- Reliability- All VACUUBRAND pumps and systems must pass rigorous product testing before leaving the factory. It's your assurance of a reliable pump.
|
Model
|
Ultimate Vacuum mbar
|
Free Air Capacity
at 60Hz
|
Flange Inlet
Connection
|
Outlet
Connection
|
|
w/o gas ballast
|
w/ gas ballast
|
cfm
|
lpm
|
|
RZ 2.5
(dual voltage)
|
2 x 10-3
|
1 x 10-2
|
1.6
|
47
|
KF 16
|
10mm
hose nozzle
|
|
RZ 6
(dual voltage)
|
2 x 10-3
|
1 x 10-2
|
4.0
|
113
|
KF 16
|
10mm
hose nozzle
|
