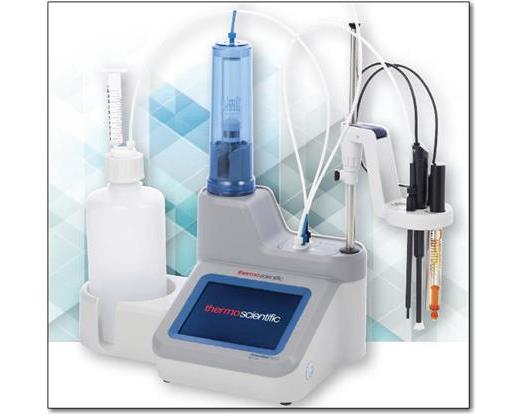

pH Meters, Orion Star™ T900 Series pH Titrator

The Thermo Scientific™ Orion™ T9000 series pH titrators (Star T910, Star T920, Star T930, and Star T940) are designed to increase your laboratory productivity by automating titrations. The core electrochemistry technology is integrated with a state-of-the-art reagent dispensing system to create modern, simplified automated titrators designed to make performing titrations easier, more reliable and more reproducible than manual titrations.

Use the Orion Star T910 pH titrator for dedicated acid-base titrations including-

Titratable acidity of juices and wines
Acidity of food products
Alkalinity of waters
Acidity and alkalinity of consumer products
Total acid number (TAN)
Total base number (TBN)

Use the Orion Star T920 redox titrator for dedicated redox titrations including-

Sulfite/SO2 in juice and wine
Reducing sugar in juice and wine
Ascorbic acid (vitamin C) in food products
Peroxide value in food products
Dissolved oxygen in wastewater by Winkler
Organic matter in soil

Use the Orion Star T930 ion titrator for dedicated ion concentration titrations including-
Salt/chloride in food products, calcium in juice and milk, total hardness of drinking water and wastewater, chloride in wastewater, ammonia and Total Kjeldahl Nitrogen (TKN) of wastewater and surfactants in consumer products. Titration techniques include equivalence point titrations and preset mV endpoint titrations plus multiple known addition (MKA) mode. Using MKA mode, the titrator performs an automated calibration and calculation of sample concentration by adding aliquots of standard to sample, removing the need for a separate calibration and minimizing matrix effects.

Use the Orion Star T940 all-in-one titrator for flexible pH, redox and ion concentration titrations including-
Equivalence point titrations, preset pH or mV endpoint titrations plus multiple known addition (MKA) mode* for automated known addition of various ions.

Titration techniques include equivalence point titrations and preset pH endpoint titrations for versatile sample analysis. The automated titrant delivery system with high-accuracy burette and dispenser provides consistent results. Automatic results calculations simplifies analysis and reduces computational errors.

These compact titrator is designed to:

Offer easy-to-use navigation from setup to live titration analysis to data transfer
Showcase titrations, onscreen instructions and help menus on a large color graphic touchscreen display
Create and save up to ten user-defined methods
Save up to 100 titration data sets with date/time stamp
Facilitate data transfer to printer, computer or USB drive

Features
Specifications

Benefits of Orion Star T9000 series pH Titrators:

Accurate, Reproducible Results- Automating the titration workflow enables analysis to be run using the same setup parameters and calculations every time.
Fast Setup Time- Setup and save electrode, titrant and titration parameters once using methods.
Prioritize Lab Throughput- Start the titration, and let the instrument run unattended.
Minimal Cost and Downtime- Easily replace titrator parts to minimize maintenance downtime while long lasting electrodes may reduce the cost of ownership.
Securely Document Test Results- View results live, in the summary table and within the 100-point data log.
Applications Database- Tested and validated preprogrammed methods can be easily loaded onto your titrator via USB flash drive.

	Orion Star T910	Orion Star T920	Orion Star T930	Orion Star T940
Type	Dedicated Acid/base titrator	Dedicated Redox titrator	Ion titrator	Acid/base, redox, and ion titrator
Calibration Mode	1 to 5 points	1 point relative mV	1 to 5 points	1 to 5 points
Direct Measure Mode	pH with mV and temperature	mV and temperature	N/A	pH, mV, ion concentration (ISE) and temperature
Range (pH)	-2.000 to 20.000	N/A	N/A	-2.000 to 20.000
Resolution (pH)	0.001, 0.01, 0.1 (user selectable)	N/A	N/A	0.001, 0.01, 0.1 (user selectable)
Accuracy (pH)	±0.002pH	N/A	N/A	±0.002pH
mV Range	-2000.0 to 2000.0 mV
Precision	0.5% RSD, dependent on environment and handling conditions
Material	ABS plastic
Display Type	5.7” color capacitive touchscreen, 640 x 480 resolution
Accuracy (mV)	±0.2 mV
Accuracy (Temperature)	±0.2°C
Alarm Output	Notifications for Titration Cycle Complete, Maximum Titrant Volume, Data Log Full, Calibration Due, Maintenance Reminder
Data Management Details	Data log export as CSV or PDF file, short or long format
Data Points	100 data sets each: sample titration, titrant standardization, calibration and direct measure
Inputs	BNC (pH electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe)
Memory	Non-volatile memory preserves data logs and settings
Methods	Up to 10 methods with optional password protection; import/export methods via USB flash drive
Outputs	3 USB ports for printer, USB flash drive and computer software connections
Range (Temperature)	-5.0 to 100.0°C; 23.0 to 212°F
Relative Humidity Range	5 to 85%, non-condensing
Temperature Selection	Manual or automatic
Titration Technique	Equivalence point or preset endpoint
Titration Types	Direct or back titration
Cycles Per Titration Run	1 to 5 cycles, option to exclude cycle results from average results and RSD calculation
Titration Setup Wizard	Yes, using Start a New Titration workflow
Dimensions (L x W x H)	10” x 16” x 14”; 25.4cm x 40.6cm x 35.6cm
Warranty	1 year replacement warranty
Certifications/Compliance	CE, TUV 3-in-1, FCC, EN/EIC61326-1, IEC 61010

Ordering Info

Cat No	Vendor Part No	Description	Includes	Power	Qty	Price	Qty
T528-1	START9100	Orion Star T910 pH titrator without electrode	20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports, desiccant tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$3,650.00	EA

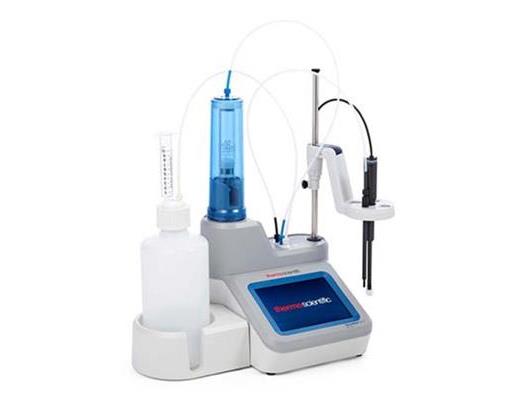

T528-2	START9101	Orion Star T910 pH titrator standard ROSS kit	8102BNUWP ROSS Ultra pH electrode, 927007MD ATC probe, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports, desiccant tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$3,980.00	EA
T528-3	START9102	Orion Star T910 pH titrator ROSS Sure-Flow kit	8172BNWP ROSS Sure-Flow pH electrode, 927007MD ATC probe, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with two ports, desiccant tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$4,010.00	EA
T528-4	START9200	Orion Star T920 redox titrator w/o electrode	20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240 V power supplies	100-240V / 50/60 Hz	In Stock	1	$4,190.00	EA
T528-5	START9201	Orion Star T920 redox titrator kit	9778BNWP glass-body redox electrode, 20mL burette, stirrer probe, dispenser probe, standard tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$4,350.00	EA
T528-6	START9300	Orion Star T930 ion titrator without electrode	20mL burette, stirrer probe, dispenser probe, tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$4,860.00	EA
T528-7	START9301	Orion Star T930 ion titrator chloride/salt kit	9780SC silver billet electrode, 91CBNC electrode cable, 20mL burette, stirrer probe, dispenser probe, tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$5,040.00	EA
T528-8	START9400	Orion Star T940 all-in-one titrator without electrode	20mL burette, stirrer probe, dispenser probe, tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$5,660.00	EA
T528-9	START9401	Orion Star T940 all-in-one titrator standard kit	8102BNUWP ROSS Ultra pH electrode, 927007MD ATC temperature probe, 20mL burette, stirrer probe, dispenser probe, tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$6,020.00	EA
T528-10	START9402	Orion Star T940 all-in-one titrator difficult sample kit	8172BNWP ROSS Sure-Flow pH electrode, 927007MD ATC temperature probe, 20mL burette, stirrer probe, dispenser probe, tubing kit, 1L plastic bottle, GL38 bottle cap with drying tube, computer cable, literature on USB drive, 110-240V power supplies	100-240V / 50/60 Hz	In Stock	1	$6,050.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
T528-11	START-B00	STAR T900 SERIES Burette Cover	In Stock	1	$55.50	EA
T528-12	START-B10	STAR T900 SERIES 10mL Burette	In Stock	1	$482.00	EA
T528-13	START-B20	STAR T900 SERIES 20mL Burette	In Stock	1	$482.00	EA
T528-14	START-B50	STAR T900 SERIES 50mL Burette	In Stock	1	$482.00	EA
T528-15	START-BT0	STAR T900 SERIES Reagent Bottle Holder	In Stock	1	$55.50	EA
T528-16	START-BT1	STAR T900 SERIES 1L Plastic Bottle	In Stock	1	$31.00	EA
T528-16P	START-BT3	STAR T900 SERIES 1L Plastic Bottle	In Stock	12	$214.00	PK
T528-17	START-BT2	STAR T900 SERIES 1L Glass Amber Bottle	In Stock	1	$31.00	EA
T528-17P	START-BT4	STAR T900 SERIES 1L Glass Amber Bottle	In Stock	12	$214.00	PK
T528-18	START-CP1	STAR T900 SERIES GL38 Reagent Bottle Cap	In Stock	1	$67.80	EA
T528-19	START-CP2	STAR T900 SERIES GL45 Reagent Bottle Cap	In Stock	1	$67.80	EA
T528-20	START-DS1	STAR T900 SERIES Dispenser Probe	In Stock	1	$117.00	EA
T528-21	START-DVK	STAR T900 SERIES Dispenser Verify Kit	In Stock	1	$55.50	EA
T528-22	START-EH1	STAR T900 SERIES Electrode Holder	In Stock	1	$117.00	EA
T528-23	START-EH2	STAR T900 SERIES Stopper for Holder	In Stock	1	$43.20	EA
T528-24	START-EH3	STAR T900 SERIES Cable Management	In Stock	1	$24.90	EA
T528-25	START-PS1	STAR T900 SERIES 110V US Power Supply	In Stock	1	$43.20	EA
T528-26	START-TB1	STAR T900 SERIES Standard Tubing Kit	In Stock	1	$135.00	EA
T528-27	START-TB2	STAR T900 SERIES Light Block Tubing Kit	In Stock	1	$135.00	EA
T528-28	START-TB3	STAR T900 SERIES Drying Tube	In Stock	1	$37.00	EA
T528-29	START-TB4	STAR T900 SERIES Tubing w/ Blue Fitting	In Stock	1	$49.30	EA
T528-30	START-TB5	STAR T900 SERIES Tubing w/ White Fitting	In Stock	1	$49.30	EA
T528-31	START-TB6	STAR T900 SERIES Tubing w/ Black Fitting	In Stock	1	$49.30	EA
T528-32	START-UM1	STAR T900 SERIES User Manual w/USB Drive	In Stock	1	$43.20	EA
T528-33	START-USB	STAR T900 SERIES USB Computer Cable	In Stock	1	$43.20	EA
T528-34	START-VK1	STAR T900 SERIES Replacement Valve Kit	In Stock	1	$796.00	EA
