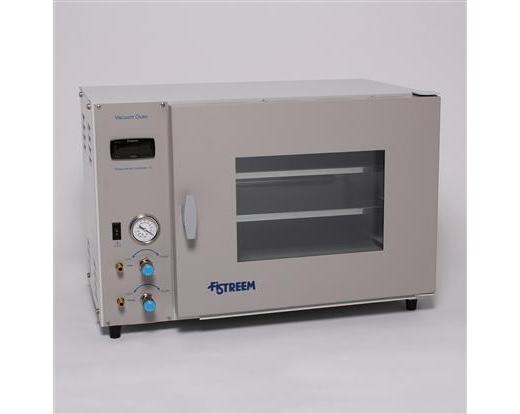

Ovens, Digital Vacuum Oven, Fi-Streem
This Fi-Streem Digital Vacuum Oven has been upgraded to incorporate a user friendly and easy to operate digital electronic PID controller. The easier and faster control settings improve performance accuracy of the oven. All of the other great features of the proven Gallenkamp Oven remain including the tough construction, safety features, and versatility.
Excellent Temperature Stability and Uniformity
- Digital PID controller for accurate temperature setting
- High quality construction and insulation provide temperature uniformity with excellent stability
- Independent over-temperature safety circuit protects sensitive samples from over-heating
Tough Construction
- Outer case constructed of a tough steel construction
- Vacuum chamber is a robust aluminum casting

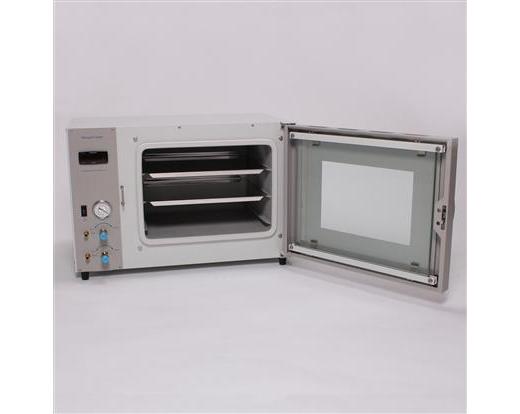

- Spacious rectangular chamber with toughened glass viewing window and shatter-resistant safety screen
- Glass fiber insulation increases energy efficiency
- Supplied with 2 shelves (3 positions, 2.95’’ intervals)
Vacuum Controls

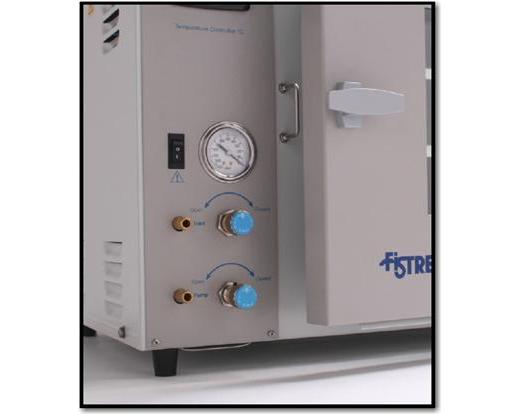

- Vacuum gauge and valves conveniently located near bottom of front panel allow for convenient connection to vacuum pump, vapor trap or exhaust
- Reliable, needle type inlet and exhaust valves
- Serrated nozzles accept flexible vacuum tubing of .39 to .47 inches (10 to 12 millimeters) bore
Safe
- Viewing window allows for safe inspection of materials
- Integral over temperature alarm indication
- Pressure warning provided by vacuum meter
- Glass fiber insulation maintains safe, low outer case temperatures
- Door closure achieved via a strong and positive twist action latch
Versatile
- Highly versatile oven for atmospheric or reduced atmosphere operation
- Reduced pressure allows for heat sensitive materials to be dried at low temperatures
- Stable samples may be dried more rapidly at high temperatures, without fan circulation
- Suitable for solvent removal work (subject to adequate exhaust and ventilation conditions)
| Capacity |
1.1 cubic feet (31 liters) |
| Temperature Range |
30 to 200 degrees Celsius at ambient temperatures less than 25 degrees Celsius |
| Power Rating |
120V at 1000 watts, 10 amps |
| Certification |
CE |
| Shelf Dimensions (L x W)
| 11.4 x 14.4 inches (290 x 366 millimeters) |
| Number of Shelves Supplied
| 2 |
| Number of Shelf Positions
| 3 |
| Interval Between Shelf Positions
| 2.95 inches (75 millimeters) |
| Overall Dimensions (L x W x H)
| 16.7 x 24.8 x 16.5 inches (425 x 630 x 420 millimeters) |
| Internal Dimensions (L x W x H)
| 12.2 x 14.8 x 10.2 inches (310 x 375 x 260 millimeters) |
| Weight
| 94.8 pounds (43 kilograms) |
| Tubing Connections
| .39 to .47 inches (10 to 12 millimeters) |
| Leakage Rate (at 0.01 mbar)
| 10 mbar/24 hr i.e. 4x10-6 mbar/l/s |
| Warranty Period
| 1 year parts and labor |
