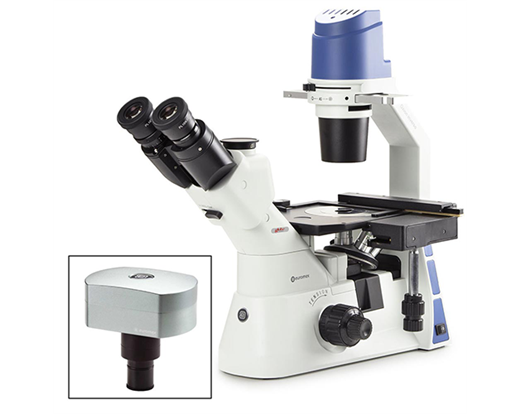

Microscopes, Inverted Microscope, Trinocular, Oxion Inverso
Oxion Inverso Inverted Microscopes
The inverted Oxion Inverso biological microscopes are available for phase contrast applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes. The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks.
Inverted Microscope, Biological, Phase Contrast, 10x/22mm Eyepieces, LWD Plan Phase 10/20/40x Objectives, Mechanical Stage (250x230mm with Coaxial 120x78mm X-Y Stage, including metallic insert for Ø 35mm cell culture dish dishes, 76 x 26mm slide holder and glass insert with hole).
- WF 10x/18mm eyepiece(s)
- Life Science applications
- Phase contrast
- Revolving quintuple nosepiece
- 100W mercury vapor lamp for fluorescence
- Observation of tissue cultures, living cells
- Long working distance IOS
- 5W LED transmitted illumination
| |
M201-17 and M201-18 |
| Head |
Trinocular 45º inclined, 54-75mm interpupillary, Diopter adjustment on left eye tube |
| Eyepiece |
HWF plan 10x/22mm |
| Nosepiece |
Quintuple |
| Objective |
Plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives |
| Stage |
250x230mm, XY: 120x78mm, Includes: stage extension, Metal insert Ø65mm stage, Metal insert 76x26mm for slides |
| Condenser |
A.N. 0,30 with iris diaphragm, Slider with PH rings for 4x/10 and 20x/40x objectives |
| Illumination |
5W NeoLed™ |
