Meters, pH/ORP Bench Meter, PH211, Orion™ Pro Star

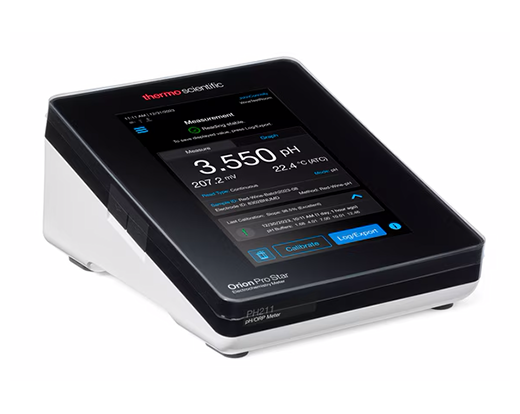

Orion Pro Star PH211 pH/ORP Bench Meter with Stand
Designed to provide accurate and reliable pH, ORP and temperature analysis, the Orion Pro Star PH211 bench meter is well suited for laboratories that desire a modern meter with advance performance. Featuring a 7-inch, high-resolution color display with responsive capacitive touchscreen, the Orion Pro Star meter focuses on ensuring a streamlined, easy to use, innovative meter for your testing needs. The Orion Pro Star meter offers onscreen guidance with step-by-step instructions and supports GLP compliance with date and time stamped calibration logs and data logs. Orion Pro Star PH211 pH/ORP bench meters are designed to provide accurate and reliable testing in laboratories that need a modern, easy-to-operate meter with advanced performance and reliable data reporting.
First time meter startup is made easy with the meter setup wizard, which guides the user through important meter and measurement settings. Utilize onscreen meter tours and guides for calibration, measurements, meter connections and electrode stand assembly to better understand meter operation, warnings and required maintenance. Activate the secure mode and assign up to 3 administrators and up to 30 users with individual account logins and password protection. Administrators can select from pre-defined user access levels to meter functions. Control access to date and time settings, instrument settings, data logs, and calibration logs, or customize each user's access level from full access to basic data collection only.
- Large 7-inch, high-resolution color display
- Responsive touchscreen operable with gloves
- Angled display to help ensure ergonomic viewing
- Streamlined, easy to operate user interface
- Vertical meter orientation helps optimize bench space
- Supports GLP compliance
- Stores 20 calibration logs per parameter with date and time
- Stores 10,000 data log sets with date and time
- Outputs to a printer, computer, or USB flash drive for long-term data retention
- Inputs sample ID with optional USB barcode scanner, USB keyboard or USB mouse
- Stirs samples with meter-controlled and meter-powered stirrer probe
- pH, mV or ORP with temperature
| Accuracy (Temperature) |
±0.3°C, ±0.5°F |
| Accuracy |
±0.2 mV or ±0.05% of the reading, whichever is greater |
| Accuracy (pH) |
±0.002 pH |
| Calibration |
pH, ORP, Temperature |
| Calibration Points |
1 to 5 (pH), 1 (ORP), 1 to 2 (Temperature) |
| Temperature Selection |
Automatic with ATC temperature sensor, ambient or manual |
| Temperature Range |
-30°C to +130°C (-22°F to +266°F) |
| Range |
-2 to 20 pH |
| Range (mV) |
-2000 to 2000 mV |
| Range (ORP) |
-2000 to 2000 mV |
| Range (Relative mV) |
-2000 to 2000 mV |
| Resolution |
0.1, 0.01 or 0.001 pH |
| Resolution (mV) |
0.1 mV |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Inputs |
BNC for pH or ORP, 8-pin MiniDIN for ATC, pin-tip for reference |
| Outputs |
USB flash drive, computer or printer |
| Measurement Modes |
pH with mV and Temperature, ORP with mV and Temperature |
| Display Type |
7-inch High-resolution Color Graphic LCD with Backlight option |
| Memory |
Non-volatile |
| Data Points |
10,000 with Date and Time Stamp |
| Log Function Type |
Automatic with Auto-Read and Timed Read Modes, Manual with Continuous Read Mode |
| Alarm Output |
Calibration reminder alarm, high and low limit alarm per parameter |
| IP Rating |
IP54 |
| Keypad |
Capacitive touchscreen user interface |
| Languages |
Chinese, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Isopotential Point |
7.000 pH |
| Channels |
1 |
| Dimensions (L x W x H) |
218.9 x 153.2 x 91.33mm (8.62 x 6.03 x 3.60 inch) |
| Weight |
1kg (2.20 lbs) |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| Warranty |
2 year meter warranty |
Ordering Info
| Cat No |
Vendor Part No |
Type | Includes |
Qty |
Price |
Qty |
UOM |
| H244-6 |
PSTAR2110 |
pH/ORP Bench Meter with Stand | Meter with electrode stand, USB flash drive, computer cable, 100-240V 50/60Hz universal power adapter (purchase electrode separately) |
In Stock |
1 |
$1,300.00 |
|
EA |
| H244-7 |
PSTAR2114 |
pH/ORP Bench Meter Difficult Sample Kit | Meter with stand (H244-6); ROSS Sure-Flow refillable glass-body pH electrode (H250-2WP); stainless steel ATC temperature probe (H252-39MD); meter-controlled stirrer probe (H224-4); pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$1,890.00 |
|
EA |
| H244-8 |
PSTAR2115 |
pH/ORP Bench Meter Standard Kit | Meter with stand (H244-6); ROSS Ultra Triode refillable glass-body pH/ATC electrode (H250-29MD); pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$1,600.00 |
|
EA |
| H244-9 |
PSTAR2116 |
pH/ORP Bench Meter Durable Kit | Meter with stand (H244-6); ROSS Ultra Triode refillable epoxy-body pH/ATC electrode (H250-26MD); pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$1,600.00 |
|
EA |
| H244-10 |
PSTAR2117 |
pH/ORP Bench Meter Low Maintenance Kit | Meter with stand (H244-6); ROSS Ultra Triode gel-filled epoxy-body pH/ATC electrode (H250-27MD); pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$1,580.00 |
|
EA |
| H244-11 |
PSTAR2118 |
pH/ORP Bench Meter Micro Kit | Meter with stand (H244-6); ROSS Micro refillable glass-body pH electrode (H250-28WP); micro stainless steel ATC temperature probe; pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$2,010.00 |
|
EA |
| H244-12 |
PSTAR2119 |
pH/ORP Bench Meter ORP Kit | Meter with stand (H244-6), refillable epoxy-body ORP/ATC electrode (H260-80MD), ORP standard, electrode storage solution and cleaning solution |
In Stock |
1 |
$1,570.00 |
|
EA |
