Meters, pH/ion Bench Meter, PI214, Orion™ Pro Star
View Larger
Meters, pH/ion Bench Meter, PI214, Orion™ Pro Star
Orion Pro Star PI214 pH/ion Bench Meter with Stand
Designed to provide accurate and reliable pH, ORP, ion concentration and temperature analysis, the Orion Pro Star PI214 bench meter is well suited for laboratories that desire a modern meter with advance performance. Featuring a 7-in., high-resolution color display with responsive capacitive touchscreen, the Orion Pro Star meter focuses on ensuring an easy to use, innovative meter for your testing needs. The Orion Pro Star meter offers onscreen guidance with step-by-step instructions and supports GLP compliance with date and time stamped calibration logs and data logs. Orion Pro Star PI214 pH/ion bench meters are designed to provide accurate and reliable testing in laboratories that need a modern, easy-to-operate meter with advanced performance and reliable data reporting.
First time meter startup is made easy with the meter setup wizard, which guides the user through important meter and measurement settings. Utilize onscreen meter tours and guides for calibration, measurements, meter connections and electrode stand assembly to better understand meter operation, warnings and required maintenance. Activate the secure mode and assign up to 3 administrators and up to 30 users with individual account logins and password protection. Administrators can select from pre-defined user access levels to meter functions. Control access to date and time settings, instrument settings, data logs, and calibration logs, or customize each user's access level from full access to basic data collection only.
- Large 7-inch, high-resolution color display
- Responsive touchscreen operable with gloves
- Angled display to help ensure ergonomic viewing
- Streamlined, easy to operate user interface
- Vertical meter orientation helps optimize bench space
- Supports GLP compliance
- Stores 20 calibration logs per parameter with date and time
- Stores 10,000 data log sets with date and time
- Outputs to a printer, computer, or USB flash drive for long-term data retention
- Inputs sample ID with optional USB barcode scanner, USB keyboard or USB mouse
- Stirs samples with meter-controlled and meter-powered stirrer probe
- pH, mV or ORP with temperature
| Accuracy (Temperature) |
±0.3°C, ±0.5°F |
| Accuracy (mV) |
±0.2 mV or ±0.05% of the reading, whichever is greater |
| Accuracy (pH) |
±0.002 pH |
| Calibration |
pH, ORP, Ion Concentration, Temperature |
| Calibration Points (ISE) |
up to 5 |
| Temperature Range |
-30°C to +130°C (-22°F to +266°F) |
| Temperature Selection |
Automatic with ATC temperature sensor, ambient or manual |
| Range (pH) |
-2 to 20 pH |
| Range (mV) |
-2000 to 2000 mV |
| Range (ISE) |
0.0001 to 19999 |
| Range (Relative mV) |
-2000 to 2000 mV |
| Resolution (pH) |
0.1, 0.01 or 0.001 pH |
| Resolution (mV) |
0.1 mV |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Resolution (ISE) |
0.0001 minimum, 1 to 5 digits |
| Inputs |
BNC for pH, ORP or ion selective electrode (ISE), 8-pin MiniDIN for ATC, pin-tip for reference |
| Outputs |
USB flash drive, computer or printer |
| Measurement Modes |
pH with mV and Temperature, ORP with mV and Temperature, Ion Concentration (ISE) with Temperature |
| Display Type |
7-inch High-resolution Color Graphic LCD with Backlight option |
| Memory |
Non-volatile |
| Data Points |
10,000 with Date and Time Stamp |
| Log Function Type |
Automatic with Auto-Read and Timed Read Modes, Manual with Continuous Read Mode |
| Alarm Output |
Calibration reminder alarm, high and low limit alarm per parameter |
| Keypad |
Capacitive touchscreen user interface |
| Languages |
Chinese, English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Isopotential Point |
7.000 pH; 1.000 ion concentration |
| Channels |
1 |
| Dimensions (L x W x H) |
218.9 x 153.2 x 91.33mm (8.62 x 6.03 x 3.60 inch) |
| Weight |
1kg (2.20 lbs) |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| Warranty |
2 year meter warranty |
Ordering Info
| Cat No |
Vendor Part No |
Type | Includes |
Qty |
Price |
Qty |
UOM |
| H244-17 |
PSTAR2140 |
pH/ion Bench Meter with Stand | Meter with electrode stand, USB flash drive, computer cable, 100-240V 50/60Hz universal power adapter (purchase electrode separately) |
In Stock |
1 |
$1,630.00 |
|
EA |

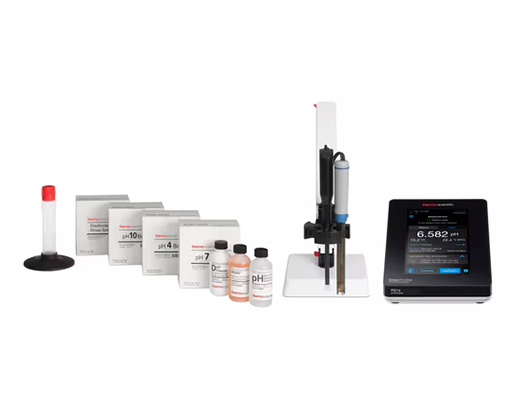

| H244-18 |
PSTAR2145 |
pH/ion Bench Meter pH Kit | Meter with stand (H244-17); ROSS Ultra Triode refillable epoxy-body pH/ATC electrode (H250-26MD); stirrer probe; pH 4, 7, 10 buffers and rinse solution pouches; pH electrode storage solution and cleaning solution; pH electrode storage sleeve and base |
In Stock |
1 |
$2,260.00 |
|
EA |

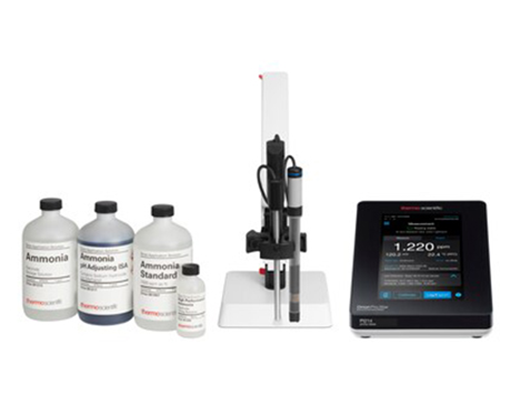

| H244-19 |
PSTAR2146 |
pH/ion Bench Meter Ammonia Kit | Meter with stand (H244-17), high-performance ammonia ion selective electrode (H260-78WP), stainless steel ATC temperature probe (H252-39MD), stirrer probe, ammonia 1000 ppm standard, ammonia ISA, ammonia electrode storage solution |
In Stock |
1 |
$2,540.00 |
|
EA |

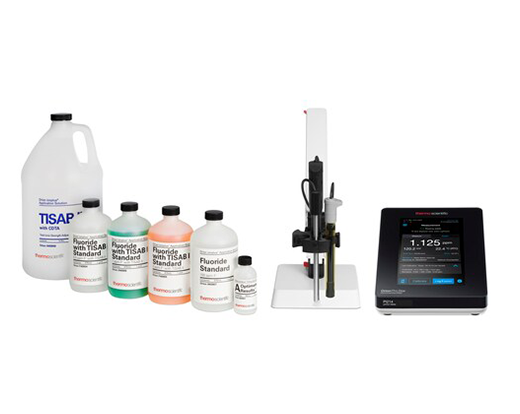

| H244-20 |
PSTAR2147 |
pH/ion Bench Meter Fluoride Kit | Meter with stand (H244-17); fluoride ion selective electrode (H260-23WP); stainless steel ATC temperature probe (H252-39MD); stirrer probe; fluoride 100 ppm standard; fluoride 0.5, 1 and 5 ppm standards premixed with TISAB II; TISAB II solution |
In Stock |
1 |
$2,590.00 |
|
EA |

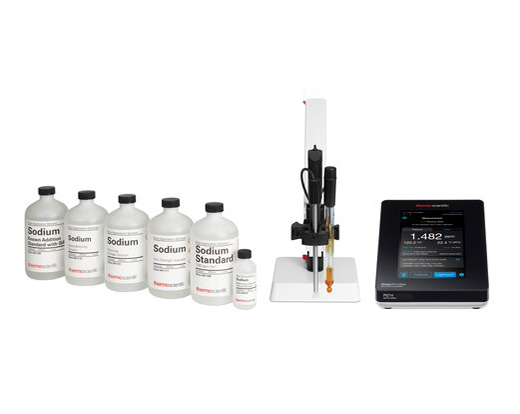

| H244-21 |
PSTAR2148 |
pH/ion Bench Meter Sodium Kit | Meter with stand (H244-17), ROSS sodium ion selective electrode (H260-52WP), stainless steel ATC temperature probe (H252-39MD), stirrer probe, sodium 1000 ppm standard, sodium ISA, sodium electrode conditioning solution, sodium electrode storage solution |
In Stock |
1 |
$2,500.00 |
|
EA |
