Meters, pH Meter, Lab Star Benchtop Meter, Orion™

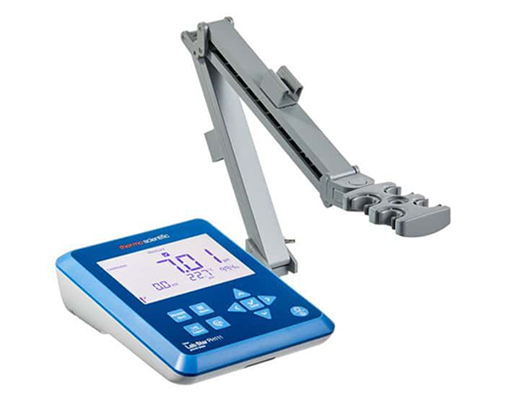

Lab Star PH111 pH Benchtop Meters
Measure pH or ORP simultaneously with mV and temperature using the Orion Lab Star PH111 pH/mV bench meter. Featuring a large, backlit display for easy viewability and small footprint to save bench space, this pH meter is ideal for simplified, budget-friendly lab testing. Use the onscreen stabilizing and ready indicators to help identify when pH meter and ORP meter readings are complete. View active pH, ORP and temperature calibration logs with date and time stamp, record key measurements using the 500-point data log with date and time stamp, and output all logs to a printer or computer.
- H243-73 is the pH meter and stand option, which allows you to purchase your pH electrode separately

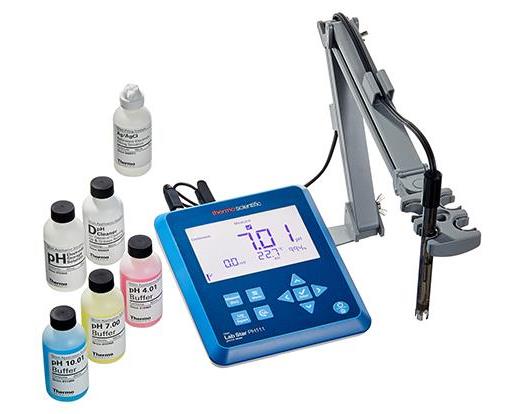

- H243-74 is the standard pH meter kit option, for common pH samples such as drinking water, tap water, buffers (non-TRIS) and general purpose student use

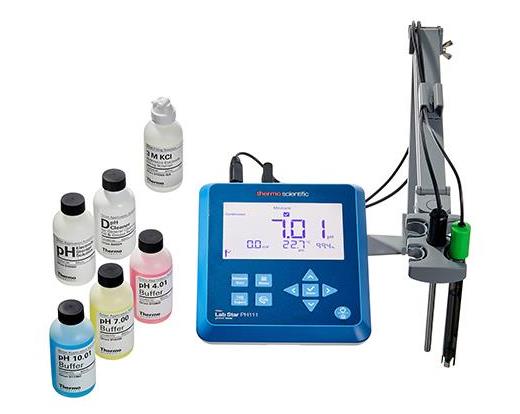

- H243-75 is the easy-to-clean bio pH meter kit option, for pH samples containing TRIS buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included refillable pH electrode is easy-to-clean and restore
- H243-76 is the low-maintenance bio pH meter kit option, for pH samples containing TRIS buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included gel-filled pH electrode is low-maintenance and easy to operate
- H243-77 is the difficult sample pH meter kit option, for pH samples that are thick, viscous or semi-solid including foods, beverages, wastewaters, emulsions, soils, slurries, suspended solids or sludges
- Budget-friendly pH meter for simplified pH and ORP testing
- Display shows pH, mV and temperature simultaneously for accurate data recording
- Measure -2.000 to 18.000pH, -2000.0 to +2000.0mV and -5.0 to 105.0°C or 23.0 to 221.0°F to ensure comprehensive measurement capabilities
- Perform one to five point pH calibrations, one point ORP calibrations and one point temperature adjustment calibrations for proficient SOP compliance
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- pH electrode condition icon helps ensure reliable electrode performance
- Date and time data stamped data and calibration logs support GLP compliance
- View active pH, ORP and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
| |
LabStar pH/mV Bench Meters |
| Measurement Modes |
pH with mV and temperature or ORP with mV and temperature |
| Calibration |
pH, ORP and temperature |
| Range (pH) |
-2.000 to +18.000 |
| Resolution (pH) |
0.001, 0.01, 0.1 |
| Accuracy (pH) |
±0.005, ±1 LSD |
| Calibration Points (pH) |
1 to 5 points |
| Range (mV) |
±2000.0 |
| Range (ORP) |
±2000.0 mV with ±250 mV offset |
| Resolution (mV) |
0.1 mV |
| Accuracy (mV) |
±0.2 or ±0.05%, whichever is greater |
| Calibration Points |
1 (ORP) |
| Temperature Range |
-5.0°C to +105.0°C, 23.0°F to 221.0°F |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Accuracy (Temperature) |
±0.3°C/±0.5°F |
| Temperature Selection |
Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration |
1 point temperature offset calibration |
| Display Type |
LCD, 5 inch Backlit |
| Backlight Option |
Yes |
| Memory |
Non-volatile |
| Data Points |
500 with Date and Time Stamp |
| Log Function Type |
Automatic with Auto-Read and Timed Read Modes, Manual with Continuous Read Mode |
| Data Management Details |
Transfer single or all data points to printer or computer |
| Alarm Output |
Calibration reminder alarm |
| Inputs |
BNC for pH or ORP, 8-pin MiniDIN for ATC |
| Outputs |
Computer or printer |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| IP Rating |
IP54 |
| AC Adapter |
Universal 100-240V 50/60Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Dimensions (L x W x H) |
198.3 x 155.2 x 61.7mm, 7.81 x 6.11 x 2.43 inch |
| Weight |
700 grams, 1.54 ibs |
| Warranty |
3 year meter warranty |
Ordering Info
| Cat No |
Vendor Part No |
Model | Includes |
Qty |
Price |
Qty |
UOM |
| H243-73 |
LSTAR1110 |
pH/mV Bench Meter with Stand | Meter, Electrode stand, PC cable, Universal power adapter |
In Stock |
1 |
$670.00 |
|
EA |
| H243-74 |
LSTAR1115 |
pH/mV Bench Meter with Standard Kit | Meter, Electrode stand, PC cable, Universal power adapter; H252-53 refillable epoxy-body pH/ATC electrode, H267-89 pH 4/7/10 buffer, storage and cleaning solution 60mL kit |
In Stock |
1 |
$918.00 |
|
EA |
| H243-75 |
LSTAR1116 |
pH/mV Bench Meter Easy-to-Clean Bio kit | Meter, Electrode stand, PC cable, Universal power adapter; H252-4GD double junction refillable epoxy-body pH electrode H252-39MD stainless steel ATC temperature probe H267-89 pH 4/7/10 buffer, storage and cleaning solution 60mL kit |
In Stock |
1 |
$986.00 |
|
EA |
| H243-76 |
LSTAR1117 |
pH/mV Bench Meter Low-Maintenance Bio kit | Meter, Electrode stand, PC cable, Universal power adapter; H256-2GD double junction gel-filled epoxy-body pH electrode H252-39MD stainless steel ATC temperature probe H267-89 pH 4/7/10 buffer, storage and cleaning solution 60mL kit |
In Stock |
1 |
$928.00 |
|
EA |
| H243-77 |
LSTAR1118 |
pH/mV Bench Meter Difficult Sample kit | Meter, Electrode stand, PC cable, Universal power adapter; H252-28WP Sure-Flow refillable epoxy-body pH electrode H252-39MD stainless steel ATC temperature probe H267-89 pH 4/7/10 buffer, storage and cleaning solution 60mL kit |
In Stock |
1 |
$1,070.00 |
|
EA |
