Meters, Dissolved Oxygen Meter, Lab Star Benchtop Meter, Orion™

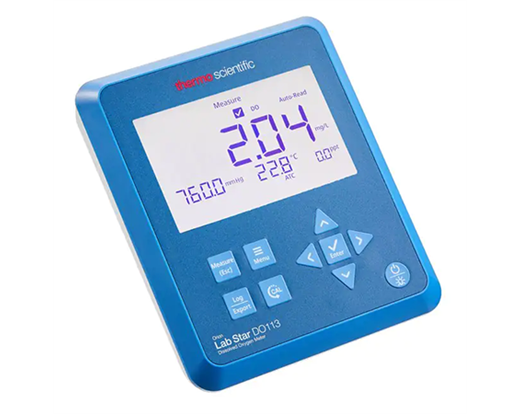

Lab Star DO113 Dissolved Oxygen Bench Meters
Measure dissolved oxygen as percent saturation or concentration in ppm or mg/L with temperature using the Orion Lab Star DO113 DO bench meter. Featuring a large, backlit display for easy viewability and small footprint to save bench space, this DO meter is ideal for simplified, budget-friendly testing. Use the onscreen stabilizing and ready indicators to help identify when DO meter readings are complete. View active calibration logs with date and time stamp, record key measurements using the 500-point data log with date and time stamp, and output all logs to a printer or computer.
- G133-12 is the DO meter and stand option, which allows you to purchase your DO electrode separately
- G133-13 is the standard DO meter kit option, for a wide variety of dissolved oxygen samples including BOD with the included adapter
- Budget-friendly DO meter for simplified dissolved oxygen as percent saturation or concentration testing
- Display shows dissolved oxygen, barometric pressure, temperature and salinity simultaneously for accurate data recording
- Measure 0.0 to 300.0 % saturation, 0.00 to 30.0 mg/L or ppm and -5.0 to 105.0°C or 23.0 to 221.0°F to ensure comprehensive measurement capabilities
- Perform 100% and 0% saturation calibrations, one point concentration calibration using a custom value (Winkler) and one point temperature adjustment calibrations for proficient SOP compliance
- Use automatic barometric pressure compensation for DO measurements with manual value entry in mmHg or bar
- Use automatic salinity compensation for DO measurements with value manual entry of 0.0 to 50.0 ppt
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- Date and time data stamped data and calibration logs support GLP compliance
- View active DO and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
| |
Lab Star Dissolved Oxygen Bench Meters |
| Measurement Modes |
Dissolved oxygen as percent saturation with temperature; dissolved oxygen as concentration in mg/L with temperature; dissolved oxygen as concentration in ppm with temperature |
| Sensor Types |
Polarographic |
| Range (Polarographic DO) |
0.0 to 300.0% saturation; 0.00 to 30.0mg/L or ppm |
| Resolution (Polarographic DO) |
0.1, 1% saturation; 0.01, 0.1mg/L or ppm |
| Accuracy (Polarographic DO) |
±2% saturation ±1 LSD; ±0.2mg/L ±1 LSD |
| Pressure Range |
400.0 to 850.0mm Hg; 0.533 to 1.133 bar |
| Calibration Modes |
100% saturation, 0% saturation, custom concentration value |
| Temperature Range |
-5.0°C to +105.0°C |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Accuracy (Temperature) |
±0.3°C, ±0.5°F |
| Temperature Selection |
Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration |
1 point temperature offset calibration |
| Display Type |
5 inch backlit LCD |
| Backlight Option |
Yes |
| Memory |
Non-volatile |
| Data Points |
500 data sets with time and date |
| Log Function Type |
Automatic with Auto-Read & Timed read modes, manual with Continuous read mode |
| Data Management Details |
Continuous, Auto-Read and Timed read modes |
| Alarm Output |
Calibration reminder alarm |
| Inputs |
9-pin MiniDIN for DO with built-in ATC |
| Outputs |
Computer or printer (STARA-106) |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| IP Rating |
IP54 |
| AC Adapter |
Universal 100-240V 50/60Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Dimensions (L x W x H) |
187.2 x 155.2 x 61.7mm, 7.37 x 6.11 x 2.43 inch |
| Weight |
700 grams, 1.54 lbs |
| Relative Humidity Range |
5 to 85%, non-condensing |
| Warranty |
3 year meter warranty |
| Percent Saturation Range Polarographic DO |
0.0 to 300.0% saturation |
