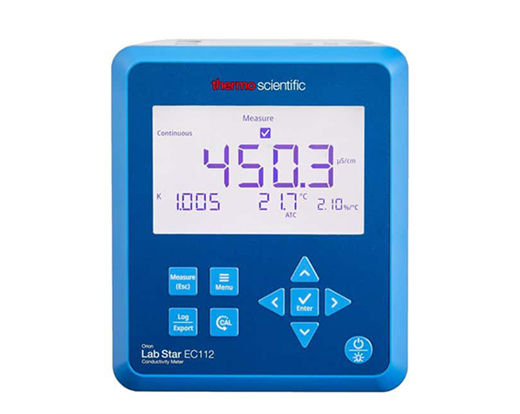

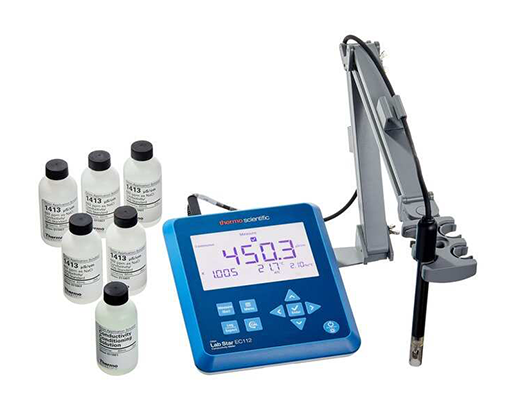

Lab Star Conductivity Bench Meters |
| Measurement Modes |
Conductivity with temperature; salinity with temperature; TDS with temperature |
| Compatible Probes |
2-cell and 4-cell conductivity electrodes |
| Cell Constant |
0.100 to 10.00 cm-1 |
| Calibration |
Conductivity, salinity, TDS and temperature |
| Calibration Points (Conductivity) |
1-5 points conductivity |
| Calibration Points |
1 point salinity, 1-5 points TDS, 1 point temperature |
| Range (Conductivity) |
0.00µS to 500.0 mS |
| Resolution (Conductivity) |
0.01, 0.1, 1µS; 0.01, 0.1 mS |
| Accuracy (Conductivity) |
±0.5% of the reading ±1 LSD |
| Temperature Compensation |
Linear (0 to 10%/°C) or off |
| Temperature Coefficient |
0 to 10%/°C |
| Temperature Reference |
15.0, 20.0, 25.0 or 30.0°C |
| Range (Salinity) |
0.00 to 80.0 ppt; 0.00 to 42.0 PSU |
| Resolution (Salinity) |
0.01, 0.1 ppt; 0.01, 0.1 PSU |
| Accuracy (Salinity) |
±0.5% of the reading ±1 LSD |
| Salinity Measurement Modes |
Natural Seawater (ppt) or Practical Salinity (PSU) |
| Range (TDS) |
0.00 ppm to 500.0 ppt (1.00 factor) |
| Resolution (TDS) |
0.01, 0.1, 1 ppm; 0.01, 0.1 ppt |
| Accuracy (TDS) |
±0.5% of the reading ±1 LSD |
| TDS Factor Range |
0.40 to 1.00 |
| Temperature Range |
-5.0°C to +105.0°C, 23.0°F to 221.0°F |
| Resolution (Temperature) |
0.1°C, 0.1°F |
| Accuracy (Temperature) |
±0.3°C, ±0.5°F |
| Temperature Selection |
Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration |
1 point temperature offset calibration |
| Display Type |
5 inch backlit LCD |
| Backlight Option |
Yes |
| Memory |
Non-volatile |
| Data Points |
500 data sets with time and date |
| Log Function Type |
Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Data Management Details |
Continuous, Auto-Read and Timed read modes |
| Alarm Output |
Calibration reminder alarm |
| Inputs |
8-pin MiniDIN for conductivity with built-in ATC |
| Outputs |
Computer or printer (STARA-106) |
| Certifications/Compliance |
CE, TUV 3-1, FCC Class A |
| IP Rating |
IP54 |
| AC Adapter |
Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Dimensions (L x W x H) |
187.2 x 155.2 x 61.7mm, 7.37 x 6.11 x 2.43 inch |
| Weight |
700 grams, 1.54 lbs |
| Warranty |
3 year meter warranty |
