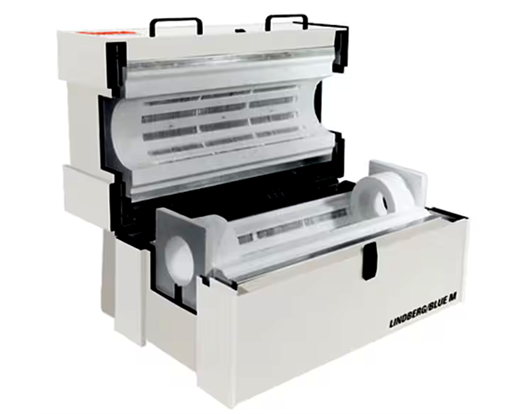

Lindberg/Blue M™ 1200°C Split-Hinge Tube Furnaces, Thermo Scientific
Thermo Scientific™ Lindberg/Blue M 1200°C Split-Hinge Tube Furnaces offer ease of observation and operation. These Thermo Scientific Lindberg/Blue M 1 split-hinge tube furnaces are configurable for horizontal or vertical use. Furnaces use independent digital temperature control modules (ordered separately) which are available in standard or programmable options.
- Patented Moldatherm™ LGO™ heating element modules for superior radial and linear temperature uniformity and fast heatup and cooldown
- Long-life, energy-efficient elements require little or no maintenance
- Unique cabinet design achieves lower exterior surface temperature
- Heat-reflecting element support assembly creates two highly effective insulating air spaces
- Compact cabinet with high temperature-resistant painted finish
- Accepts interchangeable Moldatherm tube adapters
- Long-life Platinel™ II thermocouple(s) with 10 ft. compensated lead wire and polarized plug
Three Zone Models
- Three independent power circuits (zones) with independent thermocouples for control references
- Full adjustment of each zone over entire operating range to 1200°C
- Center zone uniformity achieved and operating length maximized through adjustable profiling of end
Required Accessories: Independent digital temperature control module
Warranty and Service Offering: 12 months
| Temperature Range |
100° to 1200°C |
| Display |
LED |
| Hertz |
50/60 |
Catalog Number
(Manufacturer No.) |
Controller |
Heated Zone |
Exterior L x W x H |
Tube O.D. |
Shipping Weight |
Electrical Requirements |
| Single Zone |
F915-1
(HTF55122A) |
Independent CC58114A |
30.5cm (12 in.) |
33.0 x 53.3 x 30.5cm (13 x 21 x 12 in.) |
1.9 to 2.54cm (0.75 to 1 in.) |
28kg (60 lb.) |
120V 50/60Hz |
F915-2
(HTF55322A) |
Independent CC58114A |
30.5cm (12 in.) |
43.2 x 58.4 x 40.6cm (17 x 23 x 16 in.) |
2.54 to 7.62cm (1 to 3 in.) |
55kg (120 lb.) |
120V 50/60Hz |
F915-5
(HTF55322C) |
Independent CC58114C |
30.5cm (12 in.) |
43.2 x 58.4 x 40.6cm (17 x 23 x 16 in.) |
2.54 to 7.62cm (1 to 3 in.) |
55kg (120 lb.) |
208/240V 50/60Hz |
F915-3
(HTF55342C) |
Independent CC58114C |
61.0cm (24 in.) |
43.2 x 88.9 x 40.6cm (17 x 35 x 16 in.) |
2.54 to 7.62cm (1 to 3 in.) |
80kg (175 lb.) |
208/240V 50/60Hz |
| Three Zone |
F918-1
(HTF55347C) |
Independent CC58434C |
61.0cm (24 in.) |
43.2 x 88.9 x 40.6cm (17 x 35 x 16 in.) |
2.54 to 7.62cm (1 to 3 in.) |
89kg (195 lb.) |
208/240V 50/60Hz |
F915-8
(HTF55667C) |
Independent CC58434C |
91.4cm (36 in.) |
53.3 x 124.5 x 50.8cm (21 x 49 x 20 in.) |
76.2 to 152.4cm (3 to 6 in.) |
141kg (310 lb.) |
208/240V 50/60Hz |
Options
| Cat No |
Vendor Part No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| F920-1 |
CC58114A-1 |
Controller, Single-Zone Console; Digital; 120V |
In Stock |
1 |
$3,850.00 |
|
EA |
| F920-7 |
CC58114BA |
Controller, Single-Zone Console; Digital; OverTemperature Control; 120V |
In Stock |
1 |
Inquire |
|
EA |
| F920-15 |
CC58114PC-1 |
Controller, Single-Zone Console; Digital; Programmable; 208/240V |
In Stock |
1 |
$5,090.00 |
|
EA |
| F920-8 |
CC58114PBC-1 |
Controller, Single-Zone Console; Digital; Programmable; OverTemperature Control; 208/240V |
In Stock |
1 |
$7,210.00 |
|
EA |
| F920-9 |
CC58434C-1 |
Controller, Three-Zone Console |
In Stock |
1 |
$9,429.00 |
|
EA |
| F920-2 |
CC58114PA-1 |
Controller, Single-Zone Console; Programmble |
In Stock |
1 |
$5,080.00 |
|
EA |
| F920-10 |
CC58434PC-1 |
Controller, Three-Zone Console; Digital; Programmable Controller for Center Zone with Over Temperature Control; 208/240V |
In Stock |
1 |
$10,550.00 |
|
EA |
| F920-18 |
CC584343PBC-1 |
Controller, for 1200°C Split-hinge and 1500°C Box Furnaces, Three-Zone Digital Programmable; OverTemperature Control; 208/240V |
In Stock |
1 |
$17,000.00 |
|
EA |
| F920-19 |
CC584343PC-1 |
Controller, for 1200°C Split-hinge and 1500°C Box Furnaces, Three-Zone Digital Programmable; 208/240V |
In Stock |
1 |
$12,733.00 |
|
EA |

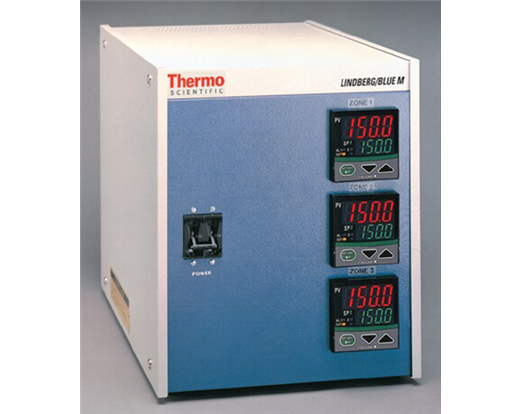

| F920-20 |
CC58434BC-1 |
Controller, for 1200°C Split-hinge and 1500°C Box Furnaces, Three-Zone Digital Programmable; OverTemperature Control; 208/240V |
In Stock |
1 |
$13,400.00 |
|
EA |
