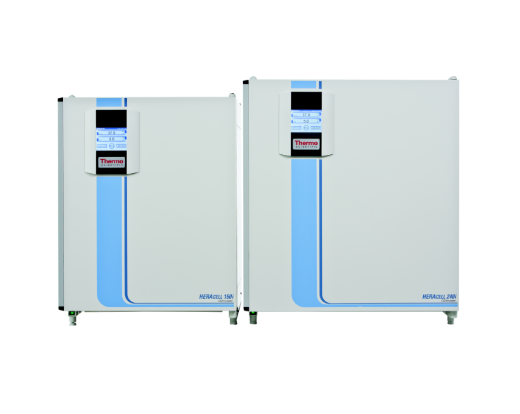

Heracell™ 150i / 240i CO2 Incubators, Thermo Scientific
Heracell™ 150i / 240i CO2 Incubators

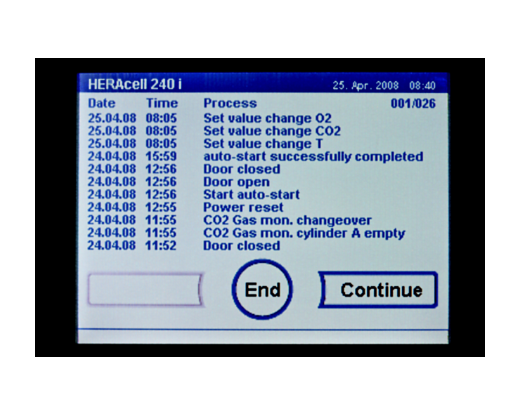

Protect valuable samples while optimizing cell growth. Thermo Scientific Heracell 150i & 240i CO2 Incubators with copper or stainless steel chambers provide the ideal in vitro environment. Clean, reliable and easy to use, they feature fast recovery characteristics and a convenient touchscreen user interface.

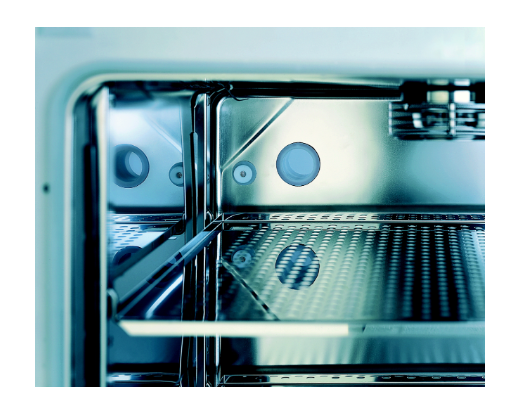

Direct Heat chamber
- 150L (5.3 cu.ft.) 100% solid copper chamber with compact footprint, easily stackable
- Standard left hand door swing, field reversible by qualified service support
- Minimal, easy-to-clean assembly with smooth inner chamber and rounded corners for easy cleaning
- In-chamber fan gently distributes conditioned, humidified air throughout the chamber ensuring homogeneous conditions
In situ sensors and probes designed for precise monitoring
- Choice of TC (thermal conductivity) CO2 sensor for long, reliable operation or IR (infrared) CO2 sensor for monitoring when humidity and temperature are less predictable
- Dual temperature probes with over temperature protection
Rapid response humidity reservoir
- Directly heated water reservoir designed to provide stable, high relative humidity, preventing culture desiccation
- Pan-less system provides recovery rates up to 5X faster than traditional water pans
- Water level sensor indicates when a refill is needed

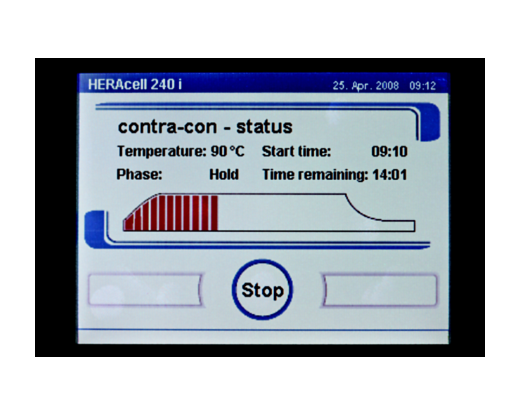

ContraCon 90°C moist heat disinfection cycle
- On-demand cycle simplifies cleaning and eliminates the need to separately autoclave components
- Operation is push-button simple and does not require removal of sensors or other components
Heracell™ 150i / 240i CO2 Incubators
- Direct Heat chamber
- In situ sensors and probes designed for precise monitoring
- Rapid response humidity reservoir
- ContraCon 90°C moist heat disinfection cycle
| |
model 150i |
model 240i |
| Capacity |
150L (5.3 cu.ft.) |
240L (8.4 cu.ft.) |
| Int. Dimensions (DxWxH) |
20.9 x 18.5 x 23.9 inch (53 x 47 x 60.7cm) |
23 x 23.9 x 26.4 inch (58.3 x 60.7 x 67cm) |
| Ext. Dimensions (LxWxH) |
30.8 x 25.1 x 34.1" (78.2 x 63.7 x 86.7cm) |
32.8 x 30.7 x 36.8 inch (83.4 x 78 x 93.4cm) |
| Chamber Material |
Electropolished Stainless-steel or Copper |
| Disinfection Time |
90°C/9 hr. |
| CO2 Concentration Range |
Optional 1 to 21% or 5 to 90% |
| CO2 Sensor Technology |
TC or IR |
| Oxygen Control |
Optional 1-21% or 5-90% |
| Humidity Delivery |
Integral Panless System (water reservoir) |
| Relative Humidity |
<90% at 37°C |
| Temperature Range (Metric) |
Ambient 3° to 55°C |
| Shelves |
3 supplied/ 10 max per unit |
| Data Outputs |
RS232 |
| Cabinet Material |
Cold-rolled Steel (18 gauge) |
| Ports |
1.6 inch (4.2cm) access (with silicon seal) |
| Shelf Material |
Electropolished Stainless-steel |
Ordering Info
| Cat No |
Vendor Part No |
Model | Capacity | Power | Chamber |
Qty |
Price |
Qty |
UOM |
| J207-1 |
51026282 |
Heracell 150i CO2 Incubator, TCD sensor | 150L | 120V 50/60Hz | Stainless Steel |
In Stock |
1 |
$12,500.00 |
|
EA |
| J207-3 |
50116048 |

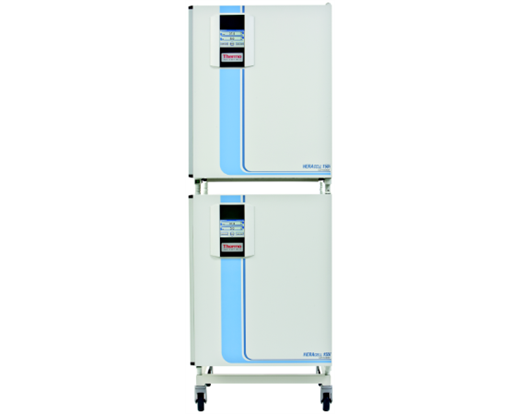

Heracell 150i CO2 Incubator, Dual chambers on support stand, TCD sensor | 2 x 150L | 120V 50/60Hz | Stainless Steel |
In Stock |
1 |
$26,000.00 |
|
EA |
| J207-6 |
51026406 |
Heracell 150i CO2 Incubator, IR sensor | 150L | 120V 50/60Hz | Stainless Steel |
In Stock |
1 |
$14,600.00 |
|
EA |
| J207-5 |
50116050 |
Heracell 150i CO2 Incubator, Dual 150L Stack, roller base | 2 x 150L | 120V 50/60Hz | Stainless Steel |
In Stock |
1 |
$31,100.00 |
|
EA |
| J207-78 |
51032878 |
Heracell 240i CO2 Incubator, TC sensor | 240L (8.4 cu.ft.) | 120V 50/60Hz | Copper |
In Stock |
1 |
$19,800.00 |
|
EA |
| J207-85 |
51026331 |
Heracell 240i CO2 Incubator, TC sensor | 240L (8.4 cu.ft.) | 120V 50/60Hz | Stainless Steel |
In Stock |
1 |
$21,200.00 |
|
EA |
