Hot Plates, Cimarec+, US and Alternative plug type, Thermo Scientific

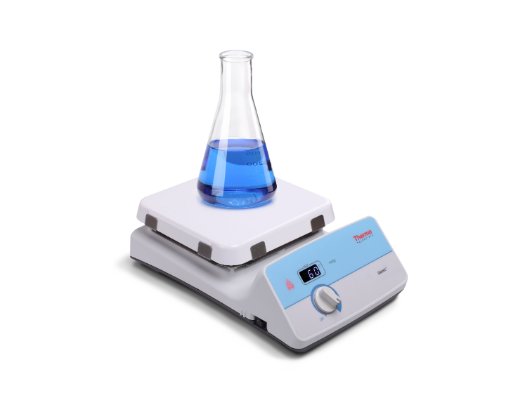

Cimarec+™ Hotplate Series
Get exceptional safety and temperature performance for your routine protocols with the Thermo Scientific™ Cimarec+ Hotplate series. You’ll find exceptional safety and temperature performance for your routine protocols. The Cimarec+ Series are available in three sizes, providing flexibility from microscale chemistries to production operations.
Exceptional performance
- Precise control for accuracy and reproducible results
Advanced technology
- Temperature adjustable in 1 degree increments
- HOT TOP warning system designed to protect from accidental burns with prominent display when heating surface is above 50°C (122°F)
Flexible, robust design
- Top plate choices in ceramic or aluminum
- Easy-to-read LED display for heating and stirring
- Raised display design protects electronics from spills
- Optional temperature probe and splash guard protection shield
- Variable sizes for different sample volumes
- Stir bar comes standard with stirrer and stirring hotplate models
| |
H166-36 |
H166-38 |
H166-40 |
H166-42 |
| Max. Temperature |
540°C |
300°C |
400°C |
| Top Plate Material |
Ceramic |
Aluminum |
Ceramic |
| Power |
100-120V, 50/60Hz |
| Heating Surface Area (metric) |
4.25 x 4.25"
(10.8 x 10.8cm) |
7.25 x 7.25" (18.4 x 18.4cm) |
10.25 x 10.25"
(26 x 26cm) |
| Certification/Compliance |
cCSAus, CE |
| Dimensions (L x W x H) |
10 x 5 x 3.6"
(25.4 x 12.7 x 9.1cm) |
13 x 8.2 x 3.8" (33 x 20.8 x 9.7cm) |
16.2 x 11.3 x 4"
(41.1 x 28.7 x 10.2cm) |
| Plug Type |
US |
| Includes |
1 Power Cord |
| Weight (metric) |
5.7 lb (2.6kg) |
9.7 lb (4.4kg) |
9.5 lb (4.3kg) |
15 lb (6.8kg) |
