Heratherm™ Advanced Protocol Ovens, Thermo Scientific
Thermo Scientific™ Heratherm Advanced Protocol Ovens include mechanical or gravity convection technology with excellent temperature values, providing flexibility, accuracy and dependability. Heratherm Advanced Protocol Ovens provide unsurpassed temperature performance–the flexible tool in the lab to be used for multiple applications.
Heratherm Advanced Protocol Ovens provide a choice of gravity or mechanical convection. Gravity convection units are designed to protect delicate samples while offering temperature uniformity of ±2.9°C or better, and temperature stability of at least ±0.3°C at 150°C. Mechanical convection models provide temperature uniformity of ±3.0°C or better, and temperature stability of at least ±0.2°C at 150°C.
Specially Priced and Promotional pricing valid on purchases January 1 through June 30, 2024
- Broad temperature range—up to 330°C
- Adjustable fan speed for application-related airflow in mechanical convection models (e.g. drying of powders)
- High speed for expedited drying and heating, quick recovery, and optimal temperature stability and uniformity
- Programmable controller for temperature ramps and dwells
- Up to 10 programs can be saved, each with 10 discrete stepsFeatures electronically controlled fan speed and damper positionPrograms can be repeated automatically
- Access port allows the introduction of sensors for independent data monitoring
- Simple calibration routine ensures temperature accuracy over time
- Boost function enables rapid heating up—no need to operate the oven 24/7 (not available in large capacity units)
| Controller |
Programmable Microprocessor control with vacuum fluorescent display |
| Timer |
weekly / real time / hour |
| Temperature Range |
50° to 330°C (60, 100, 180L) |
| Max. Shelf Load |
25kg (55 lbs.) (60, 100, 180L) |
Catalog Number
(Manufacturer No.) |
Chamber Volume |
Footprint |
Temperature Uniformity / Stability at 150°C |
Interior D x W x H |
Exterior L x W x H |
No. of Shelves Supplied / Max. |
Rated Voltage / Frequency / Rated Power / Max. Amp. / Plug |

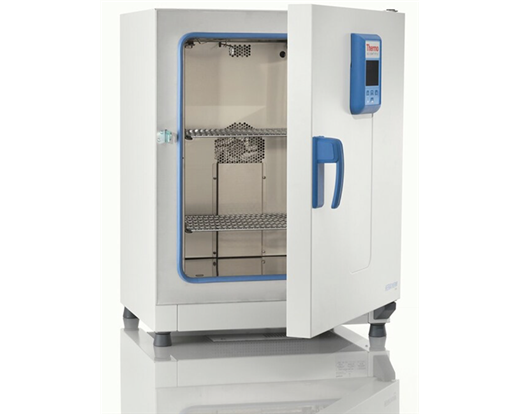

| Gravity convection, coated-steel exterior |
N109-11
(51028115) |
61L (2.15 cu. ft.) |
0.3 sq. m (3.2 sq. ft.) |
±2.5°C (±0.3°C) |
389 x 328 x 480mm (15.3 x 12.9 x 18.9 in.) |
565 x 530 x 720mm (22.2 x 20.9 x 28.3 in.) |
2 / 13 |
120VAC/60Hz / 1730w / 14.4A / Nema 6-20 |
N109-12
(51028116) |
99L (3.60 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±2.5°C (±0.3°C) |
389 x 438 x 580mm (15.3 x 17.2 x 22.8 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
208 -240VAC/60Hz / 3360w / 14A / Nema 6-20 |
N109-13
(51028117) |
168L (6.05 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±2.9°C (±0.3°C) |
564 x 438 x 680mm (22.2 x 17.2 x 26.8 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
208 -240VAC/60Hz / 3360w / 14A / Nema 6-20 |

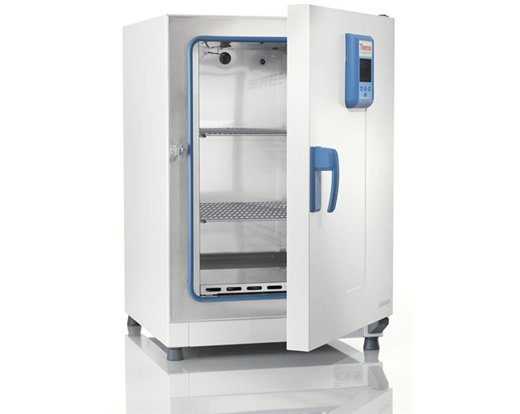

| Mechanical convection, coated-steel exterior |
N109-14
(51028124) |
62L (2.20 cu. ft.) |
0.3 sq. m (3.2 sq. ft.) |
±1.5°C (±0.2°C) |
343 x 354 x 508mm (13.5 x 13.9 x 20.0 in.) |
565 x 530 x 720mm (22.2 x 20.9 x 28.3 in.) |
2 / 13 |
120VAC/60Hz / 1440w / 12A / Nema 5-15 |
N109-15
(51028125) |
97L (3.50 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±1.3°C (±0.2°C) |
343 x 464 x 608mm (13.5 x 18.3 x 23.9 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
208 -240VAC/60Hz / 3360w / 14A / Nema 5-15 |
N109-16
(51028126) |
170L (6.10 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±1.5°C (±0.2°C) |
518 x 464 x 708mm (20.4 x 18.3 x 27.9 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
208 -240VAC/60Hz / 3360w / 14A / Nema 5-15 |
Ordering Info
| Cat No |
Vendor Part No |
Type | Exterior | Capacity | Power |
Qty |
Price |
Qty |
UOM |
| N109-11 |
51028115 |
Gravity Convection | Coated | 60L | 120VAC 60Hz |
In Stock |
1 |
$3,670.00 |
|
EA |
| N109-12 |
51028116 |
Gravity Convection | Coated | 100L | 208 -240VAC 60Hz |
In Stock |
1 |
$3,980.00 |
|
EA |
| N109-12PROMO |
51028116PM |
Gravity Convection | Coated | 100L | 208 -240VAC 60Hz |
In Stock |
1 |
$2,977.50 |
|
EA |
| N109-13 |
51028117 |
Gravity Convection | Coated | 180L | 208 -240VAC 60Hz |
In Stock |
1 |
$4,800.00 |
|
EA |
| N109-13PROMO |
51028117PM |
Gravity Convection | Coated | 180L | 208 -240VAC 60Hz |
In Stock |
1 |
$3,597.75 |
|
EA |
| N109-14 |
51028124 |
Mechanical Convection | Coated | 60L | 120VAC 60Hz |
In Stock |
1 |
$4,460.00 |
|
EA |
| N109-15 |
51028125 |
Mechanical Convection | Coated | 100L | 208 -240VAC 60Hz |
In Stock |
1 |
$4,970.00 |
|
EA |
| N109-15PROMO |
51028125PM |
Mechanical Convection | Coated | 100L | 208 -240VAC 60Hz |
In Stock |
1 |
$3,724.50 |
|
EA |
| N109-16 |
51028126 |
Mechanical Convection | Coated | 180L | 208 -240VAC 60Hz |
In Stock |
1 |
$5,970.00 |
|
EA |
| N109-16PROMO |
51028126PM |
Mechanical Convection | Coated | 180L | 208 -240VAC 60Hz |
In Stock |
1 |
$4,472.25 |
|
EA |
