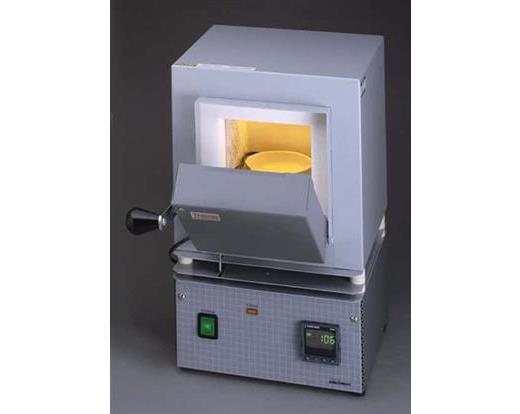

Thermolyne Benchtop 1100°C Muffle Furnaces, Thermo Scientific
Thermo Scientific™ Thermolyne Small Benchtop Muffle Furnaces feature fast heatup and reduced energy consumption. The Thermo Scientific Thermolyne Small Benchtop Muffle Furnace is ideal for ashing most types of organic and inorganic samples, heat treating small steel parts, performing ignition tests, conducting gravimetric analysis and for the determination of volatile and suspended solids.
The Thermo Scientific Thermolyne Small Benchtop Muffle Furnace is available in two capacities and reaches a maximum temperature of 1100°C.
- Digital single setpoint temperature control to 1100°C
- Single display shows actual temperature or setpoint
- Ceramic fiber insulation permits faster heatup, reducing energy consumption
- Embedded heating element on top and both sides improves temperature uniformity
- Drop-down door doubles as a shelf for loading and unloading
- Door safety switch stops power to heating elements when door is opened
- Thermocouple break protection cuts power to heating elements, preventing a thermocouple failure runaway condition
- 0.95cm (0.38 inch) diameter port in chamber rear for monitoring temperatures with independent measuring devices
Recommended for:
- Ashing most types of organic and inorganic samples
- Heat treating small steel parts
- Performing ignition tests
- Conducting gravimetric analysis
- Determination of volatile and suspended solids
Promotional pricing valid on purchases January 1 through June 30, 2024
- available in two capacities
- Digital single setpoint temperature control to 1100°C
- Single display shows actual temperature or setpoint
- Ceramic fiber insulation permits faster heatup, reducing energy consumption
- Embedded heating element on top and both sides improves temperature uniformity
- Drop-down door doubles as a shelf for loading and unloading
- Door safety switch stops power to heating elements when door is opened
- Thermocouple break protection cuts power to heating elements, preventing a thermocouple failure runaway condition
- 0.95cm (0.38inch) diameter port in chamber rear for monitoring temperatures with independent measuring devices
| Temperature Range |
100° to 1100°C |
| Hertz |
50/60 |
| Type |
Chamber |
Chamber WxHxD |
Overall WxHxD |
Uniformity at 1000°C |
Stability at 1000°C |
| FB1300 |
76 cu.inch |
4 x 3.8 x 5 inch |
9 x 14 x 13 inch |
± 7.8°C (chamber) |
± 0.3°C (chamber) |
| FB1400 |
129 cu.inch |
4.7 x 4.9 x 5.6 inch |
10 x 14.5 x 15.8 inch |
± 5.0°C (chamber) |
± 0.5°C (chamber) |
Catalog Number
(Manufacturer No.) |
Capacity |
Temperature Stability (Uniformity) |
Interior D x W x H |
Exterior L x W x H |
Electrical Requirements |
Power Consumption |
Shipping Weight |
F944-1
(FB1315M) |
1.3L (0.04 cu. ft.) |
±0.3°C at 1000°C (±7.8°C at 1000°C) |
13 x 10.3 x 9.8cm (5 x 4 x 3.8 in.) |
33 x 23 x 36cm (13 x 9 x 14 in.) |
120V 50/60Hz |
1060w |
9kg (20 lb.) |
F944-5
(FB1318M) |
1.3L (0.04 cu. ft.) |
±0.3°C at 1000°C (±7.8°C at 1000°C) |
13 x 10.3 x 9.8cm (5 x 4 x 3.8 in.) |
33 x 23 x 36cm (13 x 9 x 14 in.) |
208V 50/60Hz |
1060w |
9kg (20 lb.) |
F944-2
(FB1310M) |
1.3L (0.04 cu. ft.) |
±0.3°C at 1000°C (±7.8°C at 1000°C) |
13 x 10.3 x 9.8cm (5 x 4 x 3.8 in.) |
33 x 23 x 36cm (13 x 9 x 14 in.) |
240V 50/60Hz |
1060w |
9kg (20 lb.) |
F944-6
(FB1310M-33) |
1.3L (0.04 cu. ft.) |
±0.3°C at 1000°C (±7.8°C at 1000°C) |
13 x 10.3 x 9.8cm (5 x 4 x 3.8 in.) |
33 x 23 x 36cm (13 x 9 x 14 in.) |
240V 50/60Hz |
1060w |
9kg (20 lb.) |
F945-1
(FB1415M) |
2.1L (0.07 cu. ft.) |
±0.5°C at 1000°C (±5.0°C at 1000°C) |
15.2 x 12.7 x 10.8cm (6 x 5 x 4.25 in.) |
40 x 25 x 37cm (15.8 x 10 x 14.5 in.) |
120V 50/60Hz |
1450w |
12.7kg (28 lb.) |
F945-5
(FB1418M) |
2.1L (0.07 cu. ft.) |
±0.5°C at 1000°C (±5.0°C at 1000°C) |
15.2 x 12.7 x 10.8cm (6 x 5 x 4.25 in.) |
40 x 25 x 37cm (15.8 x 10 x 14.5 in.) |
208V 50/60Hz |
1520w |
12.7kg (28 lb.) |
F945-2
(FB1410M) |
2.1L (0.07 cu. ft.) |
±0.5°C at 1000°C (±5.0°C at 1000°C) |
15.2 x 12.7 x 10.8cm (6 x 5 x 4.25 in.) |
40 x 25 x 37cm (15.8 x 10 x 14.5 in.) |
240V 50/60Hz |
1520w |
12.7kg (28 lb.) |
F945-6
(FB1410M-33) |
2.1L (0.07 cu. ft.) |
±0.5°C at 1000°C (±5.0°C at 1000°C) |
15.2 x 12.7 x 10.8cm (6 x 5 x 4.25 in.) |
40 x 25 x 37cm (15.8 x 10 x 14.5 in.) |
240V 50/60Hz |
1520w |
12.7kg (28 lb.) |
Ordering Info
| Cat No |
Model No | Power | Operating Temp | Temp Control Group |
Qty |
Price |
Qty |
UOM |
| F944-1 |
FB1315M | 120V - 8.8A - 1050W | 100-1100°C | A |
In Stock |
1 |
$1,850.00 |
|
EA |
| F944-1PROMO |
FB1315M | 120V - 8.8A - 1050W | Single setpoint: 1100°C | A |
In Stock |
1 |
$1,383.00 |
|
EA |
| F944-5 |
FB1318M | 208V - 5.0A - 1050W | 100-1100°C | A |
In Stock |
1 |
$1,830.00 |
|
EA |
| F944-2 |
FB1310M | 240V - 4.4A - 1050W | 100-1100°C | A |
In Stock |
1 |
$1,840.00 |
|
EA |
| F944-6 |
FB1310M-33 | 240V - 4.4A - 1050W (CE marked) | 100-1100°C | A |
In Stock |
1 |
$1,970.00 |
|
EA |
| F945-1 |
FB1415M | 120V - 12.5A - 1500W | 100-1100°C | A |
In Stock |
1 |
$2,260.00 |
|
EA |
| F945-1PROMO |
FB1415M | 120V - 12.5A - 1500W | Single setpoint: 1100°C | A |
In Stock |
1 |
$1,687.50 |
|
EA |
| F945-5 |
FB1418M | 208V - 7.2A - 1500W | 100-1100°C | A |
In Stock |
1 |
$2,240.00 |
|
EA |
| F945-2 |
FB1410M | 240V - 6.3A - 1500W | 100-1100°C | A |
In Stock |
1 |
$2,260.00 |
|
EA |
| F945-6 |
FB1410M-33 | 240V - 6.3A - 1500W (CE marked) | 100-1100°C | A |
In Stock |
1 |
$2,190.00 |
|
EA |
