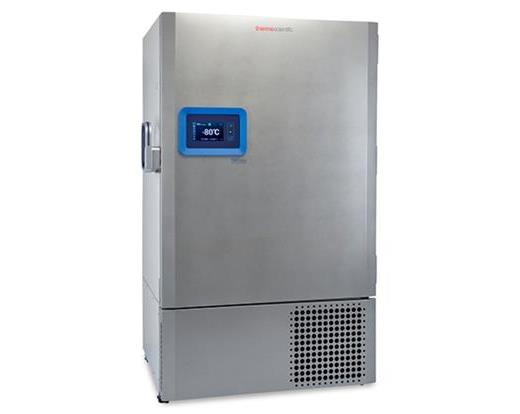

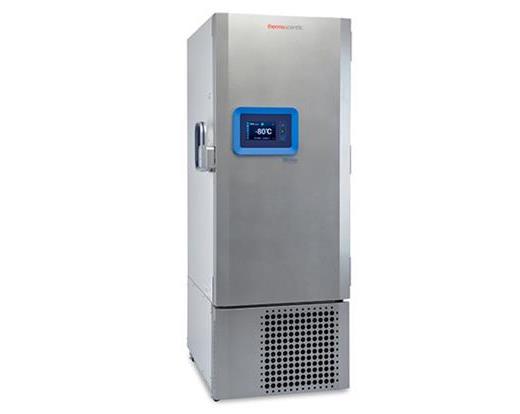

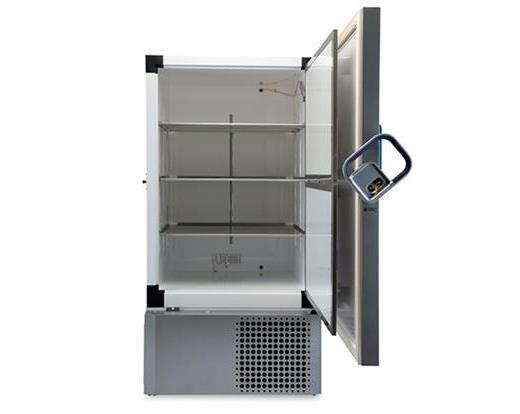

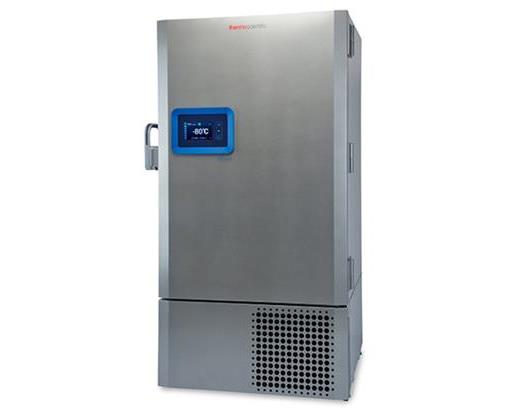

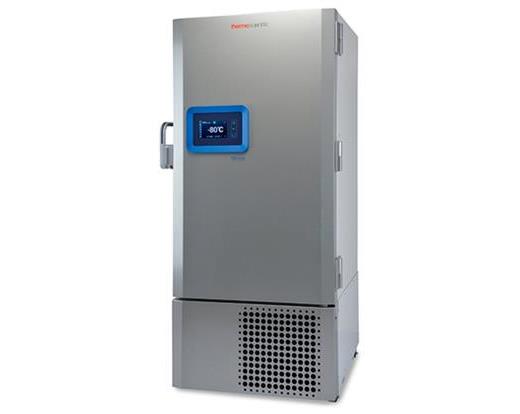

Freezers, TSX Series, -86°C Ultra-low Temperature Freezer, Thermo Scientific
View Larger
Freezers, TSX Series, -86°C Ultra-low Temperature Freezer, Thermo Scientific
Now available in an expanded range of capacities, Thermo Scientific™ TSX Series ultra-low freezers are designed to meet the highest standards in reliability, sustainability and temperature management. At the heart of the TSX Series is V-drive technology, designed to adapt to user patterns, substantially reducing energy and HVAC costs without compromising performance. All TSX Series freezers are manufactured in a zero-waste facility and are built with natural refrigerants and water-blown foam insulation, compliant with the U.S. EPA’s Significant New Alternatives Policy (SNAP), the European Union’s F-Gas compliance and other sustainability standards.
Performance
- No need to worry about where your samples are stored within the freezer. With peak variation less than 5°C, your samples are protected and safely stored throughout the entire cabinet space.
- Long warm-up time from -50°C to -80°C: 5.05 hours
- Quiet enough to reside directly in the laboratory, rather than in the hall. At just 45.5 dBA, the TSX Series’ sound level is comparable to a home refrigerator.
- V-drive’s adaptive control is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
Click to view this Refrigerator as a 3D image
Footnote
Typical freezer data based on internal testing with freezer setpoint at -80°C and ambient temperature at 20°C. Performance data varies across freezer size and electrical specifications.
User Friendly
- Newly re-designed touch-screen user interface with easy-to-use: set-up wizard, event log, temperature mapping and data downloads via a built-in USB port
- Eliminate the need for a separate chart recorder with the touch-screen’s datalogging and temperature mapping features, all exportable via a built-in USB port
- Ergonomic design including comfortable door handle, eye-level touch-screen and shelf-level placement that don’t require floor-level loading of racks
- Four capacities (400, 500, 600, and 700 2-inch box) to accommodate a variety of storage needs and lab footprint specifications
- Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific Matrix™ and Nunc CryoBank™ tubes
- Security features including alarm settings, padlock-compatible doors and optional access card entry
Sustainability
- Natural refrigerants and water-blown foam insulation, making the TSX Series compliant with the U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), the European Union’s F-Gas and other sustainability standards
- Manufactured in an award-winning, zero-waste to landfill facility
- Lower HVAC costs as a result of less heat emission into the environment
Freezer Packages*
- R208-102 includes: 10 sliding drawer racks and 250 2-inch boxes with 100-count cell dividers
- R208-88 includes: 10 sliding drawer racks, 250 2-inch boxes with 100-count cell dividers and a factory installed CO2 backup system
- R208-115 includes: 12 sliding drawer racks, 300 2-inch boxes with 100-count cell dividers
- R208-121 includes: 12 sliding drawer racks, 300 2-inch boxes with 100-count cell dividers and a factory installed HID access key
- R208-75 includes: 12 sliding drawer racks, 300 2-inch boxes with 100-count cell dividers and a factory installed CO2 backup system
Industry Leading Parts and Labor Warranty: 5 years; Industry Leading Compressor Warranty: 10 years
(orders after July 1, 2023) |
|
R208-51 |
R208-52 |
R208-53 |
R208-54 |
R208-55 |
R208-56 |
R208-57 |
R208-58 |
Capacity |
19.4cu.ft. / 549L |
24.1cu.ft. / 682L |
28.8cu.ft. / 816L |
33.5cu.ft. / 949L |
Cap-2"box/2mL vial |
400 / 40,000 |
500 / 50,000 |
600 / 60,000 |
700 / 70,000 |
Capacity/shelf |
165 lb / 75kg |
205 lb / 93kg |
245 lb / 111kg |
285 lb / 129kg |
Dimensions (exterior) |
37.6 x 28.3 x 78 inch
(95.5 x 71.9 x 198.1cm) |
37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) |
37.6 x 39.6 x 78 inch
(95.5 x 100.6 x 198.1cm) |
37.6 x 45.2 x 78 inch
(95.5 x 114.8 x 198.1cm) |
Dimensions (interior) |
28.3 x 23.1 x 52 inch
(71.9 x 58.8 x 130.1cm) |
28.3 x 28.8 x 52 inch
(71.9 x 73.0 x 130.1cm) |
28.3 x 34.4 x 52 inch
(71.9 x 87.3 x 130.1cm) |
28.3 x 40.0 x 52 inch
(71.9 x 101.6 x 130.1cm) |
Door Style |
1 outer, 2 inner |
Temperature Range |
-50°C to -86°C |
Electrical Requirements |
115V, 60Hz, 15A |
208-230V, 60Hz, 10A |
115V, 60Hz |
208-230V, 60Hz |
115V, 60Hz |
208-230V, 60Hz |
115V, 60Hz |
208-230V, 60Hz |
Weight |
573 lb / 260kg |
627 lb / 284kg |
679 lb / 308kg |
778 lb / 353kg |
Shelves |
3 |
Plug Type |
NEMA5-15 |
NEMA6-15 |
NEMA5-15 |
NEMA6-15 |
NEMA5-15 |
NEMA6-15 |
NEMA5-15 |
NEMA6-15 |
Certification,Compliance |
cULus, ENERGY STAR |
cULus |
cULus, ENERGY STAR |
cULus, ENERGY STAR |
Smart View Compatible |
Yes |
Display |
Touch-screen LCD |
Refrigerant |
R290 in First Stage, R170 With R290 Mix in Second Stage (SNAP compliant) |
Defrost |
Manual |
Ordering Info
Cat No |
Vendor Part No |
Capacity (2" box) | Dimensions (L x W x H) | Power |
Qty |
Price |
Qty |
UOM |
R208-51 |
TSX40086A |
400 boxes | 37.6 x 28.3 x 78 inch
(95.5 x 71.9 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$26,300.00 |
|
EA |
R208-113 |
TSX40086ARAK |
200 Boxes | 37.6 x 28.3 x 78 inch | 115 V / 60Hz |
In Stock |
1 |
$27,500.00 |
|
EA |
R208-114 |
TSX40086DRAK |
200 boxes | 37.6 x 28.3 x 78 inch | 208-230V / 60Hz |
In Stock |
1 |
$27,500.00 |
|
EA |
R208-116 |
TSX60086ARAK |
300 boxes | 37.6 x 39.6 x 78 inch | 115V / 60Hz |
In Stock |
1 |
$31,900.00 |
|
EA |
R208-119 |
TSX50086DRAK |
250 boxes | 37.6 x 34 x 78 inch | 208-230V / 60Hz |
In Stock |
1 |
$30,000.00 |
|
EA |
R208-118 |
TSX70086DRAK |
350 boxes | 37.6 x 45.2 x 78 inch | 208-230V / 60Hz |
In Stock |
1 |
$36,300.00 |
|
EA |
R208-117 |
TSX70086ARAK |
350 boxes | 37.6 x 45.2 x 78 inch | 115V / 60Hz |
In Stock |
1 |
$36,300.00 |
|
EA |
R208-52 |
TSX40086D |
400 boxes | 37.6 x 28.3 x 78 inch
(95.5 x 71.9 x 198.1cm) | 208-230 / 50-60Hz |
In Stock |
1 |
$26,300.00 |
|
EA |
R208-53 |
TSX50086A |
500 boxes | 37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$28,300.00 |
|
EA |
R208-102 |
TSX50086ARAK |
*500 boxes | 37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$30,000.00 |
|
EA |
R208-88 |
TSX50086ARAKCO |
*500 boxes | 37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$32,000.00 |
|
EA |
R208-121 |
TSX50086ARAKHID |
*500 boxes | 37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$30,000.00 |
|
EA |
R208-54 |
TSX50086D |
500 boxes | 37.6 x 34.0 x 78 inch
(95.5 x 86.4 x 198.1cm) | 208-230V / 50-60Hz |
In Stock |
1 |
$28,300.00 |
|
EA |
R208-55 |
TSX60086A |
600 boxes | 37.6 x 39.6 x 78 inch
(95.5 x 100.6 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$30,300.00 |
|
EA |
R208-56 |
TSX60086D |
600 boxes | 37.6 x 39.6 x 78 inch
(95.5 x 100.6 x 198.1cm) | 208-230V / 50-60Hz |
In Stock |
1 |
$30,300.00 |
|
EA |
R208-115 |
TSX60086DRAK |
*600 boxes | 37.6 x 39.6 x 78 inch
(95.5 x 100.6 x 198.1cm) | 208-230V / 60Hz |
In Stock |
1 |
$31,900.00 |
|
EA |
R208-75 |
TSX60086DRAKCO |
*600 boxes | 37.6 x 39.6 x 78 inch
(95.5 x 100.6 x 198.1cm) | 208-230V / 50-60Hz |
In Stock |
1 |
$35,000.00 |
|
EA |
R208-57 |
TSX70086A |
700 boxes | 37.6 x 45.2 x 78 inch
(95.5 x 114.8 x 198.1cm) | 115V / 60Hz |
In Stock |
1 |
$33,900.00 |
|
EA |
R208-58 |
TSX70086D |
700 boxes | 37.6 x 45.2 x 78 inch
(95.5 x 114.8 x 198.1cm) | 208-230V / 50-60Hz |
In Stock |
1 |
$33,900.00 |
|
EA |
