Centrifuges, Multipurpose, High Capacity, Models 5810 and 5810R, Eppendorf®

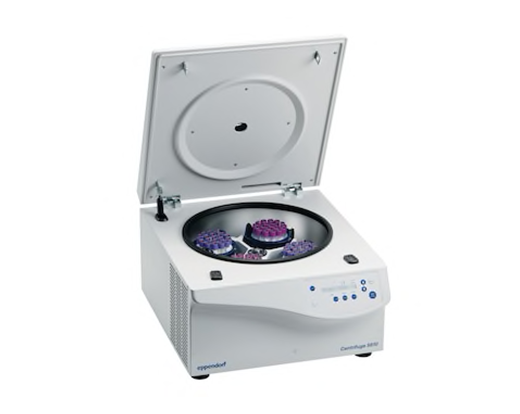

Eppendorf centrifuges 5810 and 5810R with their renowned quality and reliability offer you the most cost efficient solutions for your medium to high-throughput applications—now and in the future. Whether your applications require spinning many tubes at a time or centrifugation of larger volume vessels at high-speed, these multipurpose centrifuges with their variety of rotors and adapters cover virtually any application in tubes, bottles, flasks and microplates. They are literally three centrifuges in one: a high-capacity centrifuge for cell culture and clinical applications; a high-speed centrifuge for separating cell lysates; and a microcentrifuge for nucleic acid purification.

Designed to fit in every lab
  • Compact footprint saves valuable bench space
  • Low lid opening height and opening angle for use under shelves
  • Short depth and low weight for a multipurpose centrifuge allows placement on standard laboratory benches
New Eppendorf QuickLock® caps for one-hand operation
  • Significantly improved handling, easy operation with one or two hands
  • Handle allows the closed bucket to be carried to the biosafety cabinet where it can be opened in a safe environment
  • Aerosol-tightness has been tested and verified by HPA, Porton Down, UK
Aerosol-tight 6 x 50mL conical tube Rotor FA-45-6-30
  • Rotor for high-speed centrifugation of tubes up to 50mL
  • Aerosol-tight2 rotor rid for safe centrifugation of hazardous samples
  • Maximum speed: 16,639 x g (11,000 rpm) or 20,130 x g (12,100 rpm) when used in Model 5810R
  • Rotor features a unique QuickLock closure for fast and reliable lid locking
  • Eppendorf's advanced rotor design minimizes weight for easy lifting and carrying (weight includes lid- 3.17 kg)
  • 45° borehole angle for compact pellets at the bottom of the tube—minimizes pellets smear along the tube wall
  • Adapters for 15mL conical and other tubes available
GSA

  • High centrifugation speed up to 20,800 x g (14,000 rpm) for molecular applications in tubes from 0.2 to 750mL
  • Outstanding versatility for all your applications: Broad rotor and adapter selection to spin all commonly used tubes, bottles, flasks and plates
  • Aerosol-tight rotors and covers for all centrifuge applications involving hazardous materials (pathogenic bacteria, viruses, blood samples or radioactive material)
  • The benchmark for ergonomic operation: Low sound level to benefit your work environment
  • Low profile design for ergonomic loading/unloading of rotor
  • Advanced rotor design minimizes fixed-angle rotor weight for easy lifting and carrying
  • Automatic rotor recognition and imbalance detection for maximum operational safety
  • Centrifuge performance you can count on: Outstanding software control guarantees high accuracy of time (±2 s in 5 min), speed (1% ) and temperature (±2°C at 6°C ) for maximum run reproducibility
  • Temperature range from –9°C to 40°C , with FastTemp function for rapid cooling of the centrifuge chamber
  • Standby cooling maintains temperature when not in use
  • Centrifuge lid with soft-touch lid closure and low opening height for stress-free lid locking
  • Optional "At Set RPM" mode starts timer when set speed is reached for maximum run-to-run reproducibility independent of rotor load or acceleration speed setting
  • Possibility for adapter-specific rotor radius adjustment to guarantee maximum RCF accuracy
  • Designed to fit in every lab: Compact footprint saves valuable bench space
  • Low lid opening height and opening angle for use under shelves
  • Short depth and low weight for a multipurpose centrifuge allows placement on standard laboratory benches
  • 120 V power supply for use on standard outlets provides maximum placement flexibility
  • Compliant to international safety standards—no need to bolt the unit to the table
  • 2-year warranty
  Centrifuge 5810 Centrifuge 5810R
Max g-force 20,800 rcf 20,800 rcf
Speed range 200-14,000 rpm 200-14,000 rpm
Capacity 4 x 750mL (SB), 6 x 100mL (F), 4 x DWP 4 x 750mL (SB), 6 x 100mL (F), 4 x DWP
Number of rotors 18 18
Capacity for 1.5mL tubes 248 248
Capacity for 50mL conical tubes 28 28
Capacity for PCR plates 16 16
Refrigeration No Yes
Temperature control range N/A -9°C to 40°C
Power supply 120V, 50/60 Hz 120V, 50/60 Hz
Required current Standard 15 Amp Standard 15 Amp
Power consumption max. 950W max. 1300W
Acceleration time to max speed Depends on rotor and ramp speed Depends on rotor and ramp speed
Braking time from max speed Depends on rotor and ramp speed Depends on rotor and ramp speed
Timer 1 to 99 min, with cont. mode 1 to 99 min, with cont. mode
Noise level <53 dB(A) <59 dB(A)
Dimensions (W x D x H) 21 x 21 x 13 inch / 54 x 54 x 35 cm 28 x 21 x 13 inch / 70 x 54 x 35 cm
Height with lid open 31 inch / 80 cm 31 inch / 80 cm
Weight 150 lb / 68 kg 218 lb / 99 kg
GSA Link

Ordering Info

Cat No Vendor Part No Description Qty Price Qty UOM
C166-5 022625004 Eppendorf Centrifuge Model 5810, 115V In Stock 1 $6,840.00 EA
C166-6 022625055 Eppendorf Centrifuge Model 5810, 220V In Stock 1 $6,840.00 EA
C166-7 022625501 Eppendorf Refrigerated Centrifuge Model 5810R, 115V In Stock 1 $10,550.00 EA
C166-8 022625551 Eppendorf Refrigerated Centrifuge Model 5810R, 220V In Stock 1 $10,550.00 EA
C166-131 022628257 Centrifuge 5810R, with 6 x 50mL High-Speed Pack, 120V, 50/60Hz, includes 6 x 50mL conical fixed-angle rotor FA-45-6-30 plus 7 adapters for 15mL conical tubes (1 x 5820718005) In Stock 1 $13,050.00 EA
C166-156 022628180 Centrifuge 5810R, with 48 x 15mL or 20 x 50mL conical tubes, includes rotor A-4-81 with rectangular buckets and adapters (2 x 022638742 & 2 x 022638769) In Stock 1 $13,050.00 EA

Options

Cat No Vendor Part No Description Qty/UOM Price Qty UOM
C166-112 5820710004 Aerosol-tight swing bucket rotor (A-2-DWP-AT) with buckets, aerosol-tight lids, and plate carrier, for plates up to 60mm (89mm without AT lids) in height. Max speed 3,486 x g (4,500 rpm) In Stock 1 $2,860.00 EA
C166-43 022638602 Swing bucket rotor (A-4-81) with 4 x 500mL rectangular buckets, for volumes up to 500mL and deepwell plates. Max speed 3,250 x g (4,000 rpm) In Stock 1 $3,280.00 EA
C166-46 022638742 Adapter, 15mL conical, rectangular bucket, for rotor A-4-81, 2 each In Stock 1 $311.00 EA
C166-47 022638769 Adapter, 50mL conical, rectangular bucket, for rotor A-4-81, 2 each In Stock 1 $311.00 EA
C166-68 022638726 Adapter, 7-17mL, rectangular bucket, for rotor A-4-81, 2 each In Stock 1 $311.00 EA
C166-115 5820740000 Swing Bucket Rotor with 4 x 750mL round buckets for volumes up to 750mL, deepwell and microtiter plates, Max speed 3,214 x g (3,900 rpm) In Stock 1 $3,720.00 EA
C166-116 5804746007 Swing Bucket Rotor for volumes up to 250mL. Max speed 3,234 x g (4,200 rpm) In Stock 1 $2,350.00 EA
C166-117 5820772000 Fixed Angle Rotor with 48 sleeves, 40 inserts and 40 mats for 40 x 15mL tubes. Max speed 5,050 x g (5,500 rpm) In Stock 1 $1,545.00 EA
C166-118 5820760001 Fixed Angle Rotor for 48 x 1.5/2mL tubes, with Aerosol-tight QuickLock Lid, Max speed 19,803 x g (13,000 rpm) In Stock 1 $1,800.00 EA

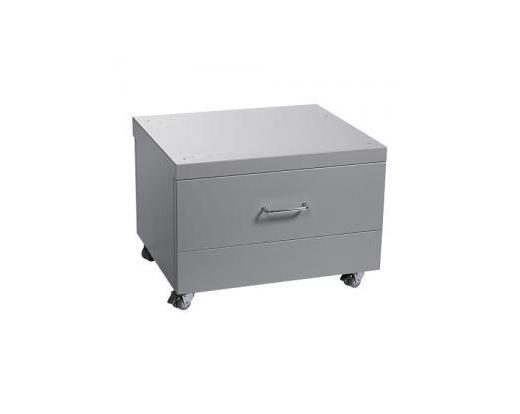

C166-155 5821020010 Rolling Cabinet for Centrifuge models 5804/5804R, 5810/5810R, with 4 casters (2 lockable) and drawer In Stock 1 $2,550.00 EA
