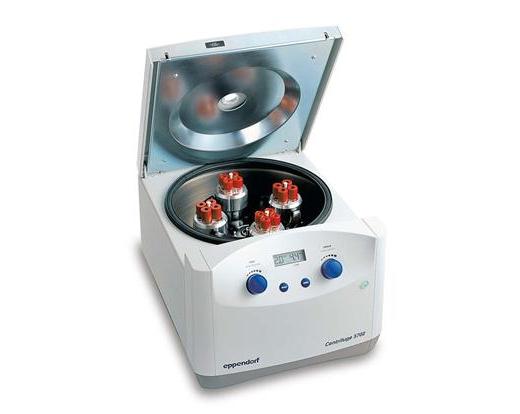

Centrifuges, General Purpose, Model 5702, Eppendorf®

All 5702 models can be used in a range of settings, from the clinical lab to the cell culture lab. With various fixed-angle and swing-bucket rotors available, they can accommodate almost any kind of tube.

The economical centrifuge for the clinical lab. With various fixed-angle and swing-bucket rotors and an extensive range of adapters, nearly all types of tubes can be used.

Another advantage is that we have designed all rotors within the 5702 line to be interchangeable.

Features
Specifications
Resources

Large dials and an easy-to-read display
Switch between rpm and rcf
Speed can be set from 100 rpm to max. 4,400 rpm, in increments of 100 rpm
Separate Short Spin button
Timer can be set for up to 99 minutes
Continuous mode can be selected
Parameter locking
Super quiet
“At Set” function starts timer when set speed is reached for reproducible results.
Glass window for quick calibration check
Six rotor options
SOFT brake function for delicate samples. Optimized braking ramp for isolation of mononuclear blood cells using Ficoll density gradient centrifugation.

Speed	100-4,400 rpm (in 100 rpm increments)
Maximum rcf	3,000 x g
Timer	0–99 min, with hold mode
Power supply	120V/60Hz / 230V/50Hz
Maximum power requirement	200W
Dimensions (W x D x H)	12.5 x 16 x 9.5 inch / 32 x 40 x 24cm
Weight	44 lb/20 kg

Ordering Info

Cat No	Vendor Part No	Model Number	Description	Power	Includes	Qty	Price	Qty
C166-9	022626001	5702	Centrifuge, non-refrigerated, without rotor	120V 60Hz	Centrifuge Only	In Stock	1	$3,075.00	EA
C166-94	022626108	5702	Centrifuge, non-refrigerated, without rotor	230V 50Hz	Centrifuge Only	In Stock	1	$3,045.00	EA
C166-66	022629883	5702	Centrifuge, non-refrigerated, with 4 x 85mL swing bucket rotor	120V 60Hz	Centrifuge and 4x85mL swing bucket rotor	In Stock	1	$3,949.00	EA
C166-95	022628001	5702	Centrifuge, Clinical package: includes a 4 x 85mL swing bucket rotor with round buckets, 4 adapters for blood tubes with an outer diameter of 13mm (2 x 022639242) and 4 adapters for 15mm tubes (2 x 022639269)	120V 60Hz	Clinical Package	In Stock	1	$5,141.00	EA
C166-96	022628102	5702	Centrifuge, Cell culture package: includes a 4 x 85mL swing bucket rotor with round buckets, 4 adapters for 15mL conical tubes (2 x 022639200) and 4 adapters for 50mL conical tubes (2 x 022639226)	120V 60Hz	Cell Culture Package	In Stock	1	$5,141.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
C166-49	022639404	Fixed angle rotor 30 x 15mL, includes 20 adapters for Falcon tubes and 30 rubber mats	In Stock	1	$1,273.51	EA
C166-97	022639421	Fixed Angle Rotor 10 x 15mL, includes 10 adapters for Falcon tubes and 10 rubber mats	In Stock	1	$779.70	EA
C166-99	022639471	Fixed-angle rotor 24 x 1.5 / 2.0mL, without lid	In Stock	1	$840.71	EA
C166-101	022639501	Swing bucket Rotor 8x15mL	In Stock	1	$479.11	EA
C166-13	022639048	Swing bucket Rotor (A-4-38) with 4 x 100mL round buckets for volumes up to 100mL. Max speed 4,400 rpm (3,000 x g)	In Stock	1	$1,200.06	EA
C166-100	022639064	Swing bucket Rotor (A-4-38) without buckets	In Stock	1	$485.90	EA
C166-23	022639081	Round bucket 100mL, for Rotor A-4-38 (C166-13 & C166-100), set of 4	In Stock	1	$1,089.31	EA
C166-18	022639102	Adapter, 5 round-bottom tubes 2-7mL, 100mL round bucket in Rotor A-4-38 (C166-13 & C166-100)	In Stock	2	$485.90	PK
C166-19	022639242	Adapter, 2.6-7mL, round bucket, for rotor A-4-38 (C166-13)	In Stock	2	$485.90	PK
C166-20	022639269	Adapter, 4-10mL, round bucket, for rotor A-4-38 (C166-13)	In Stock	2	$485.90	PK
C166-24	022639200	Adapter, 2 x 15mL conical, round bucket, for rotor A-4-38 (C166-13), sold 2 each	In Stock	1	$485.90	EA
C166-50	022639226	Adapter, 50mL conical, round bucket, for rotor A-4-38 (C166-13), sold 2 each	In Stock	1	$270.07	EA
C166-113	022639188	Adapter, 1 conical tubes 15mL, for 100mL round bucket in Rotor A-4-38 (C166-13)	In Stock	2	$270.07	PK
C166-114	022639129	Adapter, 4 round-bottom tubes 9-15mL, for 100mL round bucket in Rotor A-4-38 (C166-13)	In Stock	2	$485.90	PK
