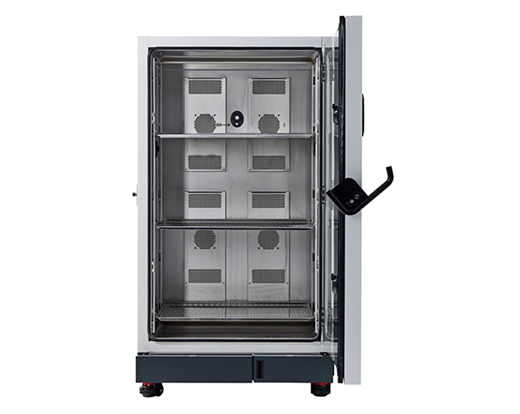

Environmental Chambers, 750L, Heratherm, Thermo Scientific™
Environmental Chambers
Protect samples by controlling light, humidity, air pressure, and gas with environmental chambers. Available in multiple capacities, these enclosures are ideal for drug stability studies, shelf-life testing, controlled temperature storage, and insect or other biological research applications. Capacities range from cold chamber kits and onstage incubators to industrial-quality chambers with configuration options to suit a variety of purposes. Replace standard outer glass door with the Solid Outer Door Option for Large Chamber to protect samples against light or increase the functionality of your lab with the stainless-steel Thermo Scientific Environmental Chambers.
Heratherm Incubation Chambers
Comprehensive data monitoring and temperature control combined with a flexible Heratherm Incubation Chamber provide a dependable option for microbiological incubation or temperature-dependent storage and testing.
Peltier Technology
- Great temperature performance for cooling and heating
- High energy efficiency
- No hazardous refrigerant used
- No need for special safety measures
- No need for handling of refrigerant with potential risks
- No critical disposal required

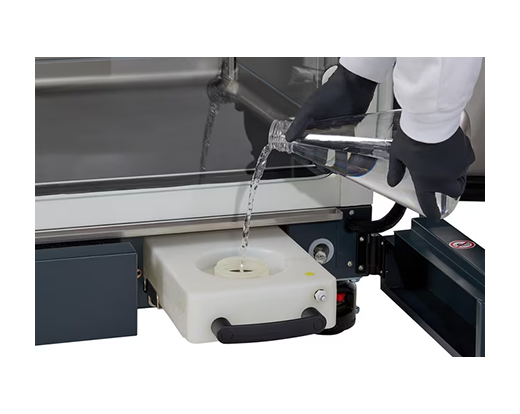

- Use of Peltier technology also for de-humidification- to generate humidity climate which is below ambient
- No defrost-cycles needed (as in compressor technology)
- Low vibrations for delicate samples– compared to start/stop of a compressor
| Model |
Incubation |
Stability |
Light |
CO2 |
| Capacity |
26.5 cu.ft (750L) |
| Temperature range |
0-70°C |
15-45°C with light; 0-70°C w/o light |
| Temperature stability |
at 20-37°C = ±0.1°C |
at 25-40°C = ±0.3°C |
| Temperature uniformity |
at 20-37°C = ±0.5°C |
at 25-40°C = ±2.0°C |
| External dimensions (W x H x D) |
42.52 x 72.24 x 34.84 inch (1080 x 1835 x 885mm) |
| Internal dimensions (W x H x D) |
33.07 x 57.09 x 24.8 inch (840 x 1450 x 630mm) |
| Temperature Control |
Microprocessor - programmable |
| Electrical requirements |
100-240V, 50/60Hz, 1400W |
100-240V, 50/60Hz, 1700W |
100-240V, 50/60Hz, 1400W |
| Plug Type |
Nema 5-20P |
| Number of shelves |
3 |
| Door Type |
Solid with inner Glass Door; Glass Door |

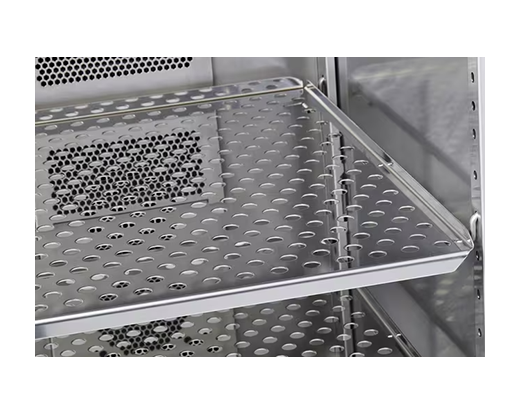

| Shelf Material / Area |
Stainless Steel / 4.9ft2 (0.46m2) |
| Loading capacity per shelf |
66.1 lbs (30kg) |
| Lighting |
No |
| Programmability |
Temperature ramping |
Temperature, relative humidity, light intensity |
Temperature, relative humidity, CO2 ramping |
| Shipping weight |
840 lbs (381kg) |
862 lbs (391kg) |
859 lbs (390kg) |
| Relative Humidity |
10 to 90% |
| Display |
7 inch touchscreen user interface |
| Data Output |
USB, Ethernet |
USB, Thermo Cloud via OPC UA |
| Certification/Compliance |
UL, CE |
| Interior/Housing material |
Powder-coated Cold Rolled Steel |
Ordering Info
| Cat No |
Type | Door Style | Power | Application |
Qty |
Price |
Qty |
UOM |
| J146-41 |
Incubation Chamber
| Solid- inner glass door | 100/240V, 50/60Hz, 1400W | Bacterial, Yeast growth |
In Stock |
1 |
$21,500.00 |
|
EA |
| J146-42 |
Incubation Chamber | Glass | 100/240V, 50/60Hz, 1400W | Bacterial, Yeast growth |
In Stock |
1 |
$21,400.00 |
|
EA |
| J146-43 |

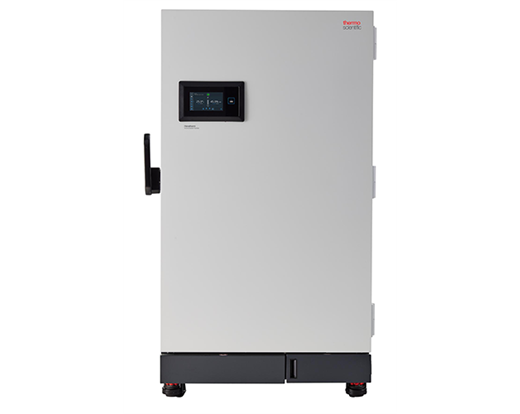

Stability Chamber | Solid- inner glass door | 100/240V, 50/60Hz, 1400W | Stability Testing, ICH Q1A |
In Stock |
1 |
$29,400.00 |
|
EA |
| J146-44 |

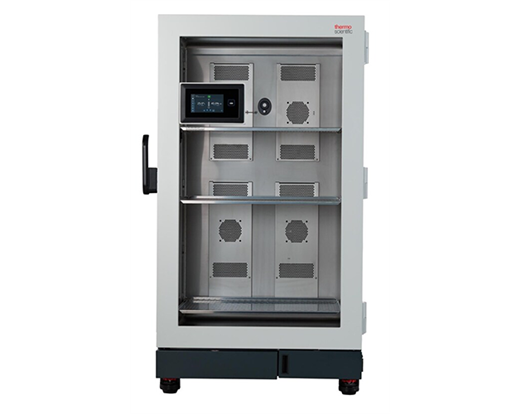

Stability Chamber | Glass | 100/240V, 50/60Hz, 1400W | Stability Testing, ICH Q1A |
In Stock |
1 |
$29,600.00 |
|
EA |
| J146-45 |

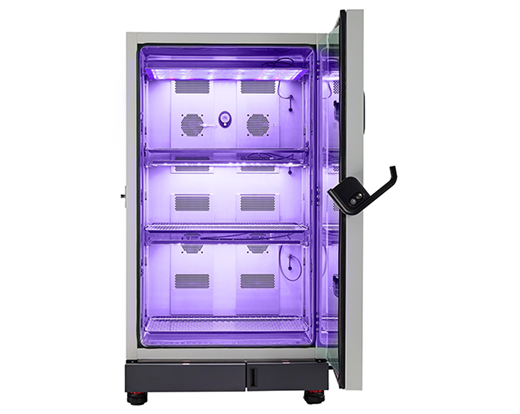

Light Chamber | Solid- inner glass door | 100/240V, 50/60Hz, 1700W | Plant Growth, ICH Q1B |
In Stock |
1 |
$31,500.00 |
|
EA |
| J146-46 |

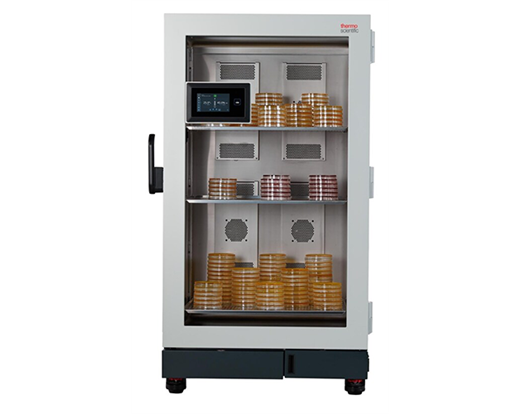

Light Chamber | Glass | 100/240V, 50/60Hz, 1700W | Plant Growth, ICH Q1B |
In Stock |
1 |
$30,600.00 |
|
EA |
| J146-47 |

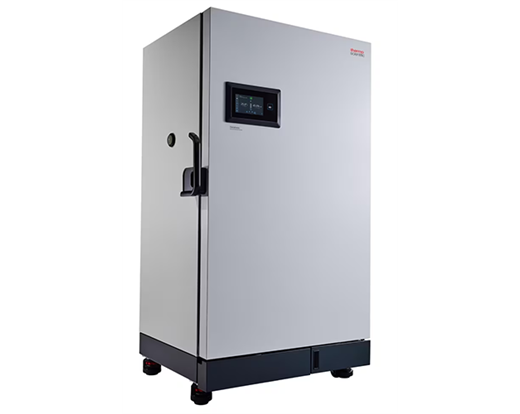

CO2 Chamber | Solid- inner glass door | 100/240V, 50/60Hz, 1400W | Mammalian Cell Culture |
In Stock |
1 |
$31,500.00 |
|
EA |
| J146-48 |

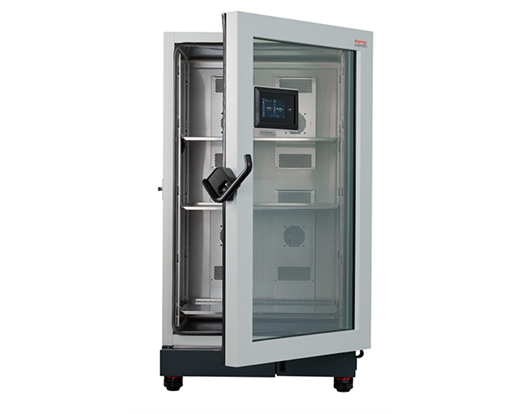

CO2 Chamber | Glass | 100/240V, 50/60Hz, 1400W | Mammalian Cell Culture |
In Stock |
1 |
$31,600.00 |
|
EA |
