CO2 Incubators, Shaking Incubator Mini, 46L, Benchmark
The Only CO2 Incubator with a MAGic Clamp Shaker

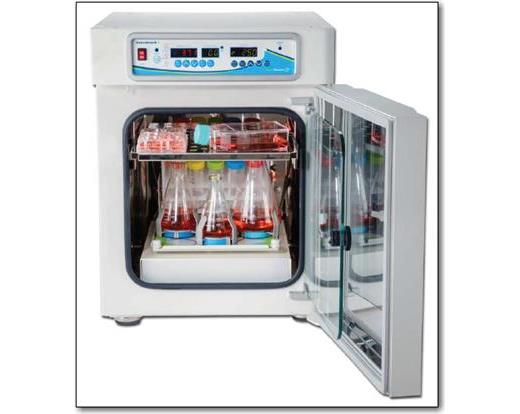

Ideal for the culturing of non-adherent cells, the Incu-Shaker CO2 Mini combines a precision CO2 incubation chamber with an integral orbital shaker, providing the optimum conditions for suspension cell culture.
With our unique and proprietary heat distribution technology, the incubator provides the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system in combination with a low speed internal fan uniformly spreads air throughout the stainless steel chamber (without air exchange from the external environment). For applications requiring solely gravity convection, this internal fan can be disabled, significantly reducing the concern of sample to sample contamination.

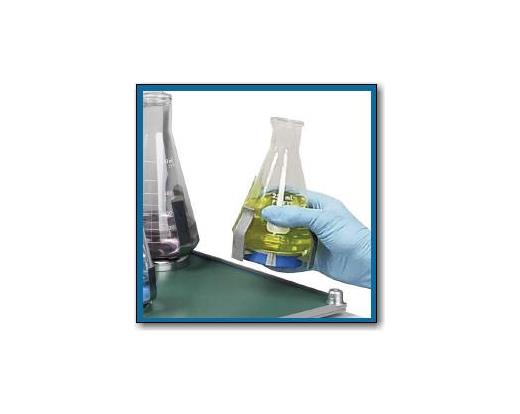

A beltless motor drive provides a horizontally circular shaking motion at a consistent 19mm orbit. The included platform (9.5 x 11.5 inch) can be used for low speed shaking of a variety of laboratory vessels, including Erlenmeyer flasks, culture plates and media bottles. For high speed mixing, a patented MAGic Clamp platform is available that allows for magnetic attachment of flask clamps and tube racks.
- Heat - Shake - CO2
- Six side heating provides excellent uniformity and recovery
- Integral MAGic Clamp shaker, ideal for suspension cell culture
- Precise monitoring over CO2 with dual beam IR sensor
| Maximum Capacity Chart |
50mL
Flasks |
125mL
Flasks |
250mL
Flasks |
500mL
Flasks |
1000mL
Flasks |
Micro-
plates |
15mL
Tubes |
50mL
Tubes |
| 20 |
12 |
8 |
5 |
4 |
4 |
64 |
30 |
| Temperature Range |
Ambient 5 to 60°C |
| Temperature Accuracy |
± 0.5°C |
| Temperature Uniformity |
± 0.5°C |
| Temperature Increment |
0.1°C |
| Temperature Stability |
± 0.1°C |
| Speed Range |
30 to 300 rpm |
| Speed Increment |
1 rpm |
| Mixing Orbit |
3/4 inch (19mm) |
| CO2 Range |
0 to 20% |
| CO2 Increment |
0.1% |
| CO2 Accuracy |
± 0.1% |
| CO2 Sensor |
Dual Beam IR |
| Timer |
1 min. to 48 hours (or continuous) |
| Platform Dimensions |
9.5 x 11.5 inch (23.5 x 29 cm) |
| Chamber Dimensions |
13.2 x 10.25 x 15.4 inch (33.5 x 26 x 39.2cm) |
| Chamber Volume |
46L |
| Chamber Material |
Stainless Steel (316) |
| Exterior Dimensions |
16.5 x 18.3 x 21.8 inch (42 x 46.5 x 55.3cm) |
| Weight |
90 lbs / 40.1kg |
| Eletrical |
120V or 230V / 50-60Hz / 350W |
