CO2 Incubators, Air Jacketed (Direct Heat), Infrared CO2 Sensor

Air Jacketed CO2 Incubators: Standard, Stacked, and High Heat Decontamination models

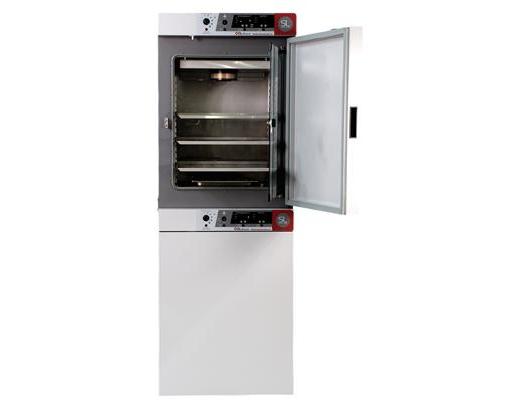

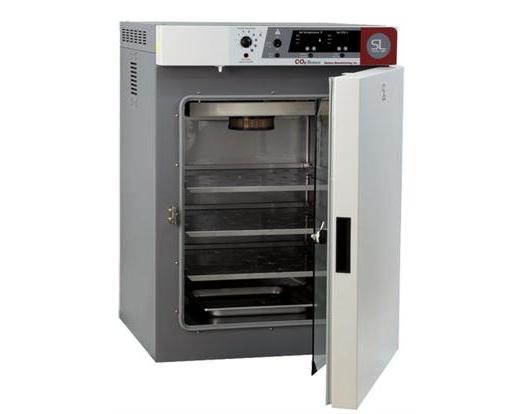

Model J110-2/2E is a stacked version of the J110-1/1E incubator. Both are ideal for sensitive tissue and cell culture applications. They provide the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

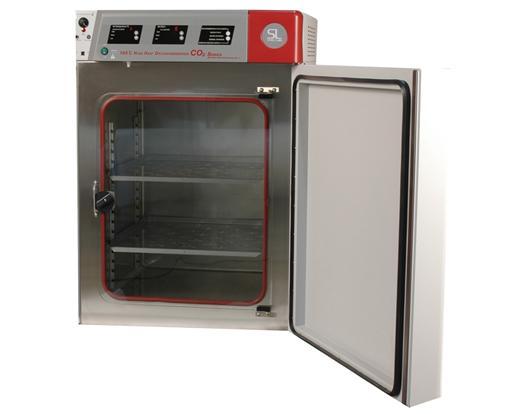

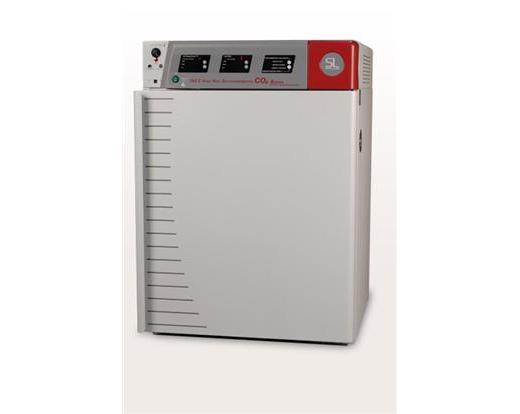

Model J110-3/3E features the ultimate in contamination control. This unit is ideal for cell culture labs where contamination can result in significant losses of both time and money. It boasts the most effective decontamination cycle on the market – dry heat for two hours at 180°C. This time/temperature relationship satisfies all global standards for decontamination. Plus, the overall decontamination cycle (heat up to cool down) is the fastest on the market, so users will have minimal downtime with this unit. In addition, there is no need to remove sensitive components prior to running the decontamination cycle.

Standard Design Features:
  • Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
  • Humidity levels, maintained through evaporation, of up to 95%
  • Data logging capabilties
  • Designed to minimize contamination

  • Patented copper-caged HEPA filter (J110-1/1E & J110-2/2E)
  • The fastest high heat decontamination cycle on the market without having to remove critical components (J110-3/3E)
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Durable stainless steel chamber with coved corners for easy cleaning
  • Exclusive heated copper CO2 inlet not only promotes temperature uniformity, but also prevents moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  J110-1/1E J110-2/2E J110-3/3E
Weight 250 lbs 500 lbs 285 lbs
Access Port 1.5 inch
Overtemperature Alarm Yes
Shelving 3 Supplied (16 Maximum) 3 Supplied (16 Maximum) - per unit 3 Supplied (16 Maximum)
Relative Humidity Range up to 95%
Jacket Type Air
CO2 Recovery Rate <5 minutes
CO2 Sensor Infrared (IR) /-0.1%
CO2 Range 0-20%
Temperature Uniformity ±0.25°C at 37°C
Temperature Range Ambient 8°C to 60°C Ambient 5°C to 50°C
Exterior Dimensions WxDxH inch (WxDxH cm) 27.3 x 28 x 37.8
(69.3 x 71.2 x 95.9)
27.3 x 28 x 75.6
(69.3 x 71.2 x 191.8)
28.5 x 30.8 x 39.5
(72.4 x 78.2 x 100.4)
Interior Dimensions WxDxH inch (WxDxH cm) 20.5 x 19.7 x 21.5
(52 x 50.1 x 54.6)
20.5 x 19.7 x 21.5
(52 x 50.1 x 54.6) per chamber
20.2 x 20 x 25.5
(51.4 x 50.8 x 64.7)
Capacity 5.0 Cu.Ft. (142L) 10.0 Cu.Ft. (284L) 5.9 Cu.Ft. (167L)
Maximum Energy Consumption 720W 1440W
Split Inner Glass Chamber Door Optional
Data Logging Capabilities Yes

Ordering Info

Cat No CapacityDescriptionPower Qty Price Qty UOM
J110-1 5.0 Cu.ft. (142L)CO2 Air Jacketed Incubator w/HEPA Filter115V, 720W In Stock 1 $6,610.68 EA
J110-1E 5.0 Cu.ft. (142L)CO2 Air Jacketed Incubator w/HEPA Filter230V, 720W In Stock 1 $7,271.75 EA
J110-2 10.0 Cu.ft. (284L)CO2 Air Jacketed Incubator w/HEPA Filter, Dual Chambered (5 Cu.ft per chamber)115V, 720W In Stock 1 $13,221.37 EA
J110-2E 10.0 Cu.ft. (284L)CO2 Air Jacketed Incubator w/HEPA Filter, Dual Chambered (5 Cu.ft per chamber)230V, 720W In Stock 1 $14,543.50 EA
J110-3 5.9 Cu.ft. (167L)High Heat Decontamination CO2 Air Jacketed Incubator115V, 1440W In Stock 1 $7,574.01 EA
J110-3E 5.9 Cu.ft. (167L)High Heat Decontamination CO2 Air Jacketed Incubator230V, 1440W In Stock 1 $8,330.69 EA
