C179-130
75009519 |
C179-131
75009518 |
C179-135
75009918 |
C179-138
75016037 |
C179-142
75016049 |
| Description |

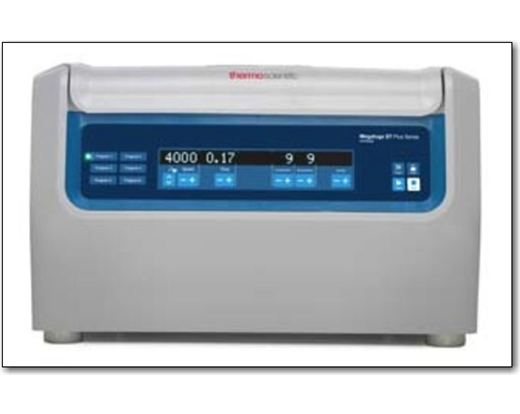

Megafuge ST4R Plus-MD |
Megafuge ST4R Plus |
Megafuge ST4R Plus-MD |
| Refrigerated |
Yes, CFC-Free, Pre-Temp Available |
| Temperature Range |
-10°C to +40°C, ±2°C |
| Accel/Decel Profiles |
Choices of 9 Accel / 10 Decel Rates |
| Drive System |
Direct, Brushless induction low profile motor |
| Net Weight |
120kg |
See individual components |
| Program Storage |
Up to 6 Programs |
| Run Time |
Up to 9 hrs 59 minutes |
| Standards |
ISO 14971, ISO 13485, ISO 90001 |
| Capacity |
Max in TX-1000: 196-5/7mL blood tubes, 148-9/10 mL blood tubes, 96-15mL conical tubes, 40-50mL conical tubes, 6 microplates; 4 x 1000mL BioBottles (with TX-1000 rotors) |
| Max. RCF |
Fixed Angle: 25830 x g (with 30 x 2mL rotor)
Swing-Out: 5590 x g (with BIOShield 1000A rotor) |
| Max. Speed |
Fixed Angle: 15,200 x g (with 30 x 2mL rotor)
Swing-Out: 5300 x g (with BIOShield 1000A rotor) |
| Electrical Requirements |
120V,50/60Hz,1450W |
220-240V, 50Hz / 230V, 60Hz, 1950W |
120V, 60Hz |
| Size Exterior (L x W x H) |
27.2 x 29.4 x 14.2 inch (690 x 746 x 361mm) |
| Display |
Bright LCD Push-Button User Interface |
| Noise Level |
<64 dB(A) (Rotor F15-8x50c; 14500 RPM) |
| Timer |
Option to count up or down |
| Certifications/Compliance |
EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15 |
EN/UL/IEC 61010-1EN/UL/IEC 61010-2FCC part 15 |
| Includes |
Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil, power cord for the according country supply voltage, declaration of conformity |
| Controller Type |
Microprocessor |
| Material |
front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber. |
| Rotor Included |
No |
Yes |
| Warranty |
Centrifuge: 5 Year Limited, Rotor: See Manual |
| Programmability |
Via LCD User Interface buttons |
