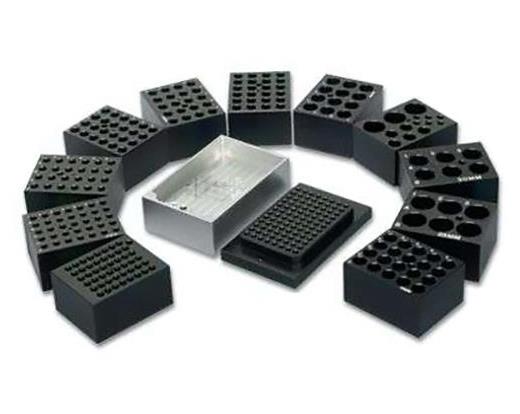

Block Modules for Boekel Digital and Analog Dry Bath Incubators; MiniFridge II, Boekel
All block modules are made of anodized aluminum to resist corrosion, have a well for a thermometer and threaded block extractor hole. Extractor included in all baths. All block modules can be used with Boekel MiniFridge II.
Test Tube Block Modules
For tubes 6mm to 25mm diameter; microcentrifuge tubes, including “Dolphin” tubes
Rows and columns are alpha/numerically labeled
Microscope Slide Block Modules
In situ hybridization, slide drying and single temperature incubation
Resevoir to maintain humidity when used with Dry Bath lid
Model 110056 holds slides at a 45° angle
Cuvette Block Modules
Useful for enzyme kinetics
Microplate Block Modules
EIA, ELISA and monoclonal antibody screening
Hot Start PCR
Boekel Test Tube Block Modules
| Catalog Number |
H141-30 |
H141-31 |
H141-32 |
H141-33 |
H141-34 |
H141-35 |
H141-36 |
H141-37 |
H141-38 |
H141-39 |
H141-40 |
| Model Number |
110006 |
110010 |
110013 |
110016 |
110020 |
110025 |
110035 |
110040 |
110045 |
110047 |
110048 |
| Overall Dimensions w x l x h: |
7.6 cm x 9.5 cm x 5.1 cm
(3 in x 3¼ in x 2 in) |
| Capacity: |
35 – 6 mm tubes |
20 – 10 mm tubes |
20 – 13 mm tubes |
12 – 16 mm tubes |
6 – 20 mm tubes |
6 –25 mm tubes |
3 –25 mm tubes;
5 – 13 mm tubes;
6 – 6 mm tubes |
24 – 1.5 mL tubes |
24 – 0.5 mL tubes |
35 – 0.4 mL tubes |
48 – 0.2 mL tubes |
| Net Weight |
0.45kg (1lb) |
| Shipping Weight |
1.0kg (2-1/4 lb) |
Miscellaneous Boekel Block Module Specifications
| Cat. No |
H141-41 |
H141-42 |
H141-43 |
H141-44 |
H141-45 |
H141-46 |
H141-47 |
H141-48 |
| Model No |
110049 |
110051 |
110053 |
110056 |
110060 |
110095 |
110096 |
110099 |
| Product Dimensions w x l x h: |
7.6 x 9.5 x 5.1 cm (3 x 3¼ x 2 in) |
9.5 x 14.3 x 4.4 cm (3½ x 5¼ x 1¾ in) |
7.6 x 9.5 x 5.1 cm (3 x 3¼ x 2 in) |
9.6 x 15.3 x 2.5 cm (3¾ x 6 x 1 in) |
7.6 x 9.5 x 5.1 cm (3 x 3¼ x 2 in) |
| Net Weight: |
1.1 kg (2¼ lb) |
0.9 kg (2 lb) |
0.5 kg (1¾ lb) |
1.1 kg (2¼ lb) |
0.5 kg (1¾ lb) |
| Shipping Weight: |
1.4 kg (3 lb) |
0.9 kg (2 lb) |
1.4 kg (3 lb) |
0.9 kg (2 lb) |
| Capacity: |
Solid block |
1 – 96 well microplate |
8 – 1x3 in microscope slides;
horizontal |
5 – 1x3 in microscope slides;
45° angle |
15 - 1 cm cuvettes |
2 – 30 mL nickel crucibles |
1 – 96 well
0.2 mL microplate;
0.2 mL strips
or 0.2 mL tubes |
24 – 1.5 mL “dolphin” tubes |
