Hybridization, Large Hybridization Ovens, Big S.H.O.T III™, Boekel

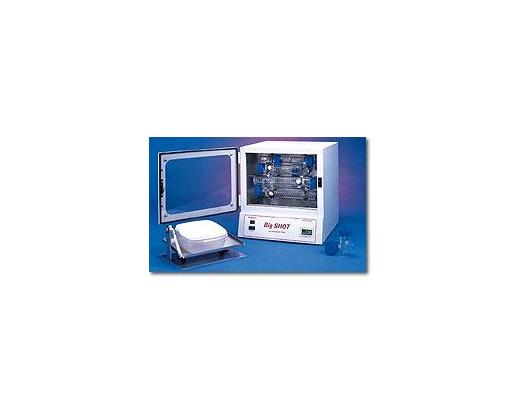

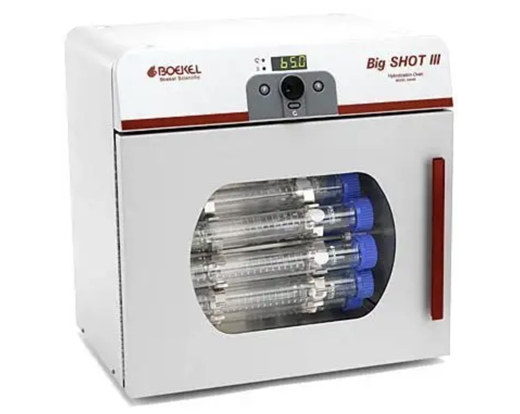

Big S.H.O.T III Large Hybridization Oven
Whether you are working with Northern Blots, Southern Blots, Microarrays or another application that requires incubation, you will find the Big SHOT III Hybridization Oven is a perfect fit for the job. This unit is designed to provide rapid heat-up, excellent temperature stability and efficient mixing for all types of hybridization and incubation applications. There is a full line of accessories which make it possible to accommodate many different vessel sizes, types, quantities and orientations. The oven can be converted to a platform rocker with an optional rocker platform attachment.
- PID temperature controller for rapid heat up and excellent temperature stability
- Forced air convention
- Settable over temperature safety thermostat
- Easy to remove stainless steel drip pan
- 2 year warranty
Applications Southern and Nothern blotting processes and Pre-hybridization and stringency washes
- PID temperature controller for rapid heat up and excellent temperature stability
- Forced air convention
- Settable over temperature safety thermostat
- Programmable digital timer- up to 99 hours, 59 minutes
- Supplied with a standard carousel
- Carousel speed up to 60 RPM in 1 RPM increments
- Reversible door
- Stackable
- Easy to remove stainless steel drip pan
- 2 year warranty
| Cat No |
J131-5 |
J131-6 |
| Model No |
230400 |
230400-2 |
| Exterior (w x d x h) |
40 x 47 x 43.2cm (15¾ x 18½ x 17 inch) |
| Interior (w x d x h) |
33.7 x 24.8 x 24.1cm (13¼ x 9½ x 9¾ inch) |
| Net Weight |
18 kg (38 lbs) |
| Shipping Weight |
19kg (43 lbs.) |
| Electrical |
115 VAC (60Hz) or 230VAC (50Hz), 230W |
| Capacity |
10 bottles- 35 x 225 or 35 x 300mm or 20 bottles- 35 x 100 or 35 x 150mm |
| Temperature Range |
Ambient ±10°C to 100°C |
| Stability |
±0.1 |
| Accuracy |
±0.5°C |
| Speed |
6-7 RPM fixed speed |
| Heat-up Rate |
Ambient to 65°C in 25 minutes |
| Temp. Controller Type |
Programmable PID with LED display |

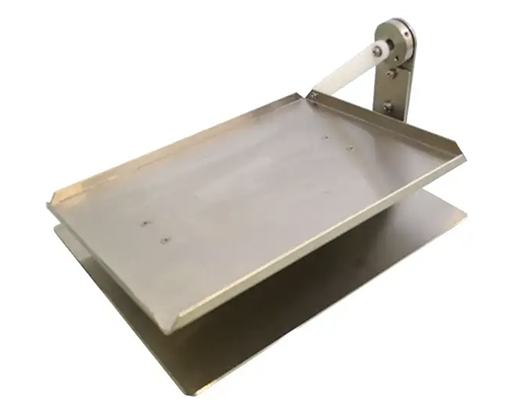

| Rocker Platform |
| Dimensions |
21.5 x 28cm (8½ x 11 inch) |
| Weight Capacity |
5kg (11 lb) centered |
| Speed |
Same as rotation rate of incubator |
| Angle |
16° or 20° |
