Baths, Circulating, Refrigerated Circulator, Arctic A45HC, Thermo Scientific

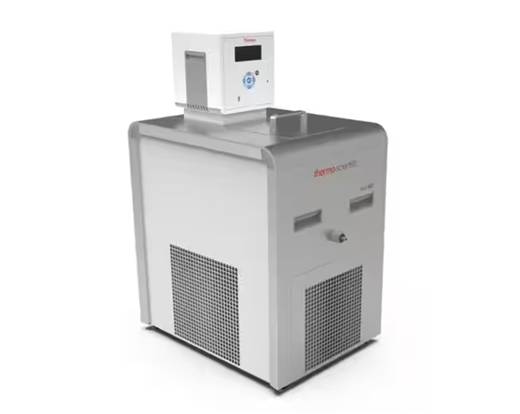

Thermo Scientific™ Arctic Series Circulator
Thermo Scientific Arctic Series refrigerated bath circulators offer outstanding cooling power, expansive temperature ranges, powerful force/suction pumps, and sophisticated digital control technology designed to ensure accuracy and reproducibility of your liquid temperature control procedures. The stainless steel reservoir is offered in multiple capacities with a variety of reservoir openings and depth dimensions for maximum application flexibility.
- Customizable solution to meet today’s and tomorrow needs
- Extensive choice of temperature ranges, pumping capacities, and bath volumes with leading warranty coverage
- Selection of intuitive displays to support your application and budget
- A range of accessories and inserts for sample security and management
- Accepts Thermo Scientific Pura-Lite™ indicator or digital purity meter to monitor water quality
- Robust reliability even in the most demanding applications
- Digital control technology for precise temperature control and stability
- Robust, powerful pumping capacity for external fluid circulation
- Large volume, corrosion resistant stainless steel work area
- Support for you and the environment
- Technical expertise and support at your fingertips
- Service provided by dedicated local, depot, and technical support team
- Sustainability in mind with water conservation, energy saving options, and zero waste manufacturing
| |
W153-51 - W153-53 |
| Chamber Material |
Stainless Steel |
| Controller Type |
PC |
| Description |
Refrigerated Heated Bath Circulator |
| Capacity (Metric) |
12L |
| Certifications/Compliance |
UL.CSA/IEC/EN |
| Communications |
RS232 |
| Cooling Capacity |
900 watts |
| Flow Rate |
Maximum 24 |
| Pump Type |
Force Pump, Suction Pump |
| Temperature Range |
-45°C to +200°C |
| Display |
Digital |
| External Circulation |
Yes |
| Includes |
8mm and 12mm hose adapters for external circulation, 6-ft. power cord, and work area cover |
| Max. Pressure |
560/8.12 |
| Max. Suction |
20 LPM |
| Model |
A45 |
| Product Line |
Refrigerated heated bath circulator |
| Refrigerant |
R290 |
| Termperature Accuracy |
+/- 0.5° |
| USB Connections |
Yes |
| Warranty |
3 years |
| Working Area |
7.9 x 6.8 x 7.2 inch |
| Dimensions (D x W x H) |
23.8 x 15.1 x 31 inch |
| Length |
39 inch
99cm |
| Length (Interior) |
7.2 inch
184cm |
| Height |
28 inch
71cm |
| Height (Interior) |
7.9 inch
200cm |
| Depth |
39 inch
99cm |
| Depth (Interior) |
7.9 inch
200cm |
| Weight |
150lbs
68kg |
| Shipping Weight |
122lbs
55kg |
| Voltage |
115V |
| Frequency |
50, 60 Hz |
| Unit Size |
Each |
