Baths, Circulating, Refrigerated Circulator, ARCTIC A-series, Thermo Scientific

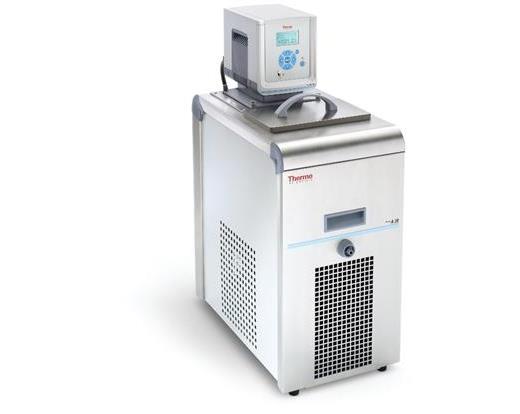

The Thermo Scientific™ A40 Refrigerated Bath Circulator provides efficient cooling for open and closed applications, with temperatures ranging from -40° to +200°C and maximum bath volume of 12 liters. Powerful bath circulators with a stainless-steel reservoir can be configured with different cooling capacities, temperature ranges and volumes to meet your specific application.
Featuring superior cooling power, expansive temperature ranges, powerful force/suction pumps, and sophisticated digital control to ensure accuracy and reproducibility. Choose from three different controllers that allow you the flexibility to create the perfect fit for your application.
- Energy-saving feature limits power consumption: tight control of cooling capacity dependent on application needs
- Small refrigeration circulators are optimized for small footprint and low noise
- Robust stainless-steel baths
- Thermostat can be indexed 90° on all sides of the bath for easy viewing
- External circulation set included for plumbing connection M16×1, 0.25 NPT male, 0.3755 inch O.D.
- Three-side ventilation concept: up to two sides can be blocked with full refrigeration performance and no degradation of equipment
- Draining port at the front
- Integrated handles
- CFC-free refrigerant
Includes
- Control cables, bridge with gasket and thumbscrews, fittings, clamps, pump plug for external circulation, 6 foot power cord, bath cover
Recommended for
- Calibration
- Bioreactors
- Rotary Evaporators
- Condensers
- Sample/Material Testing
- Sample/Material Preparation
- Warranty varies by country, please contact us for details
| |
W153-21 |
W153-31 |
W153-41 |
| Temperature Range |
-28° to +150°C |
-10° to +100°C |
-25° to +200°C |
| Cooling Capacity |
800w |
250w |
500w |
| Max. Bath Volume |
3.17 gallon (12L) |
4.48 gallon (17L) |
6.35 gallon (24L) |
| Electrical Requirements |
115V / 60Hz |
| Flow Rate |
20L/min. |
17L/min. |
24L/min. |
| Max. Pressure |
475mbar/6.89psi |
300mbar/4.35psi |
560mbar/8.12psi |
| Safety Class |
3 / FL |
1 / NFL |
3 / FL |
| Temperature Stability |
0.01°C |
0.02°C |
0.01°C |
| Net Weight |
121.5 lb. (55.2kg) |
97.9 lb. (44.5kg) |
79.5 lb. (36.1kg) |
| Thermostat Control |
AC200 |
SC100 |
PC200 |
| Interior Dimension (LxWxD) |
7.2 x 6.8 x 8 inch
(18.4 x 17.3 x 20.4cm) |
13.4 x 11.7 x 7.9 inch
(36.5 x 29.7 x 20cm) |
7.2 x 6.8 x 8 inch
(18.4 x 17.3 x 20.4cm) |
| Exterior Dimension (LxWxH) |
20.4 x 15.2 x 29.5 inch
(51.9 x 38.5 x 74.9cm) |
35.9 x 16.9 x 18.5 inch
(91.3 x 42.9 x 47.1cm) |
19 x 10.7 x 28 inch
(48.3 x 27.3 x 71.1cm) |
| Certifications/Compliance |
CE/ROHS/WEEE |
