Balances, Industrial, GP Series, A&D Weighing

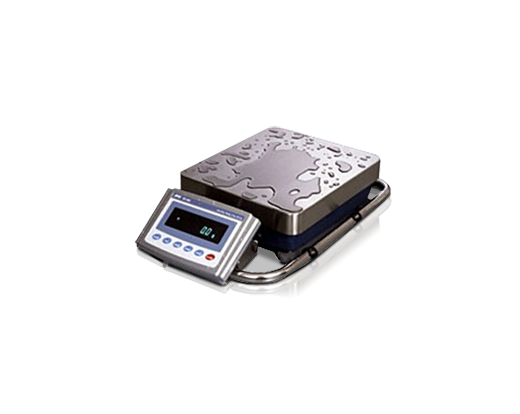

Industrial GP Balance Series

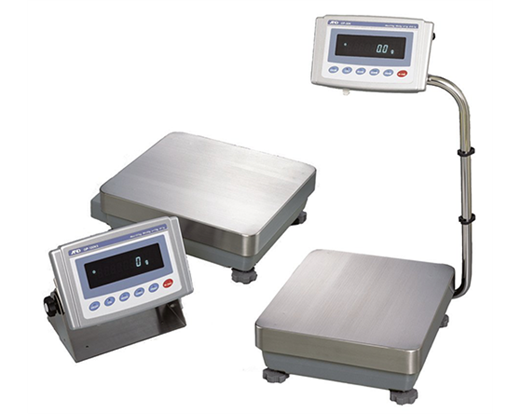

The GP Series incorporates our enhanced weighing sensor, the Double Leveraged Super Hybrid Sensor® (SHS). This technology brings the most accurate weighing results to high capacity precision balances. High resolution makes the GP ideal for weighing expensive product. GP-30KN & GP-30KSN are Class II NTEP Approved.
Purchase NTEP approved GP Models (B135-41 & B135-42) March 1 through March 31, 2023, to receive a $500 Amazon Gift Card
- GLP/GMP/ISO Compliance
- IP-65 Splash Proof Keyboard, Display and Base Units
- ID Number
- Optional Underhook
- Perfect solution for asphalt/concrete aggregate and density testing
- Automatic internal calibration guarantees accurate results
- Versatile swing arm & detachable display provide flexibility for benchtops & floor settings alike
- 5 year warranty prevents unnecessary downtime
| Catalog No |
B135-21 |
B135-22 |
B135-27 / B135-30 |
B135-10 / B135-20 |
| Model No |
GP-12K |
GP-20K |
GP-30K / GP-30KS |
GP-32K / GP-32KS |
| Capacity/Resolution |
12kg x 0.1g |
21kg x 0.1g |
31kg x 0.1g |
31kg/6kg x 1g/0.1g |
| Other units of measure |
g, kg, lb, L OZ, OZ, ct, dwt, OZt, mom, TL, MS, tola, DS, % and counting PCS |
| Linearity |
±0.2g |
±0.2g |
±0.2g |
±1g / ±2g |
| Repeatability/Standard. Dev. |
0.1g |
0.1g |
0.1g |
0.5g/ 0.1g |
Sensitivity Drift
(-10 to 30 °C) |
±3ppm/°C |
±5ppm/°C |
| Counting Mode min. Unit Mass |
0.1g |
0.1g |
0.1g |
1g |
Percentage Mode min.
100% reference mass |
10g |
10g |
10g |
100g |
| External Cal Mass |
5kg / 10kg |
10kg / 20kg |
20kg / 30kg |
20kg / 30kg |
| Stabilization Time |
Approx. 1.5 seconds (typical in FAST mode) |
| Operating temperature |
5°C-40°C / 41°F-104°F, RH less than 85% (No condensation) |
| Display Refresh |
5 times per second (stable) / 10 times per second (unstable) |
| Counting Mode Sample Size |
10, 25, 50 or 100 pieces |
Percent Mode min.
100% display |
0.01% / 0.1% / 1% (automatically switches depending on reference mass stored) |
| Weighing Pan dimensions |
Stainless steel 384mm x 344mm |
External Dimensions
(column horizontal) |
372(W) x 615(D) x 130(H) mm
(Note:GP-30KS is a 344(W) x 442(D) x 130(H) mm) |
| Height with column vertical |
652mm |
| Net Weight |
Approx 17kg |
| Catalog No |
B135-24 |
B135-26 /
B135-25 |
B135-39 /
B135-40 |
B135-28 /
B135-31 |
B135-29 |
| Model No |
GP-40K |
GP-60K / GP-60KS |
GP-61K / GP-61KS |
GP-100K / GP-100KS |
GP-102K |
| Capacity/Resolution |
41kg x 0.5g |
61kg x 1g |
61kg x 0.1g |
101kg x 1g |
101kg/61kg x 10/1g |
| Other units of measure |
g, kg, lb, L OZ, OZ, ct, dwt, OZt, mom, TL, MS, tola, DS, % and counting PCS
(Weighing units g, ct, & dwt are not available on GP-102K) |
| Linearity |
±1g |
±1g |
±0.5g |
±2g |
±10g / ±2g |
| Repeatability/Std. Dev. |
0.5g |
0.7g |
0.2g |
1g |
5g / 1g |
Sensitivity Drift
(-10 to 30 °C) |
±5ppm/°C |
±6ppm/°C |
±10ppm/°C |
Counting Mode
min. Unit Mass |
0.5g |
1g |
0.1g |
1g |
10g |
Percentage Mode min.
100% reference mass |
50g |
100g |
10g |
100g |
1000g |
| External Cal Mass |
20/30/40kg |
30/40/50/60kg |
20/30/40/50/60kg |
60/80/100kg |
60/80/100kg |
| Stabilization Time |
Approx. 1.5 seconds (typical in FAST mode) |
| Operating Temp |
5°C-40°C / 41°F-104°F, RH less than 85% (No condensation) |
| Display Refresh |
5 times per second (stable) / 10 times per second (unstable) |
|
Counting Mode
Sample Size
|
10, 25, 50 or 100 pieces |
Percent Mode min.
100% display |
0.01% / 0.1% / 1% (automatically switches depending on reference mass stored) |
| Weighing Pan |
Stainless steel 384mm x 344mm |
386mm x 346mm |
External Dimensions
(column horizontal) |
372(W) x 615(D) x 130(H) mm
(Note:GP-30KS is a 344(W) x 442(D) x 130(H) mm) |
373(W) x 615(D) x 130(H) mm
(Note: GP-100KS is 346(W) x 443(D)x 130(H) mm) |
| Height |
652mm |
| Net Weight |
Approx 17kg |
Approx 18kg |
Ordering Info
| Cat No |
Model No | Weight Capacity | Min Display |
Qty |
Price |
Qty |
UOM |
| B135-21 |
GP-12K | 12kg | 0.1g |
In Stock |
1 |
$3,935.00 |
|
EA |
| B135-22 |
GP-20K | 21kg | 0.1g |
In Stock |
1 |
$4,330.00 |
|
EA |
| B135-27 |
GP-30K | 31kg | 0.1g |
In Stock |
1 |
$5,145.00 |
|
EA |
| B135-41 |
GP-30KN | 31kg | 0.1g |
In Stock |
1 |
$5,395.00 |
|
EA |
| B135-30 |
GP-30KS | 31kg | 0.1g |
In Stock |
1 |
$5,510.00 |
|
EA |
| B135-42 |
GP-30KSN | 31kg | 0.1g |
In Stock |
1 |
$5,675.00 |
|
EA |
| B135-10 |
GP-32K | 31kg / 6kg | 1g / 0.1g |
In Stock |
1 |
$3,585.00 |
|
EA |
| B135-20 |
GP-32KS | 31kg / 6kg | 1g / 0.1g |
In Stock |
1 |
$3,995.00 |
|
EA |
| B135-24 |
GP-40K | 41kg | 0.5g |
In Stock |
1 |
$4,780.00 |
|
EA |
| B135-26 |
GP-60K | 61kg | 1g |
In Stock |
1 |
$5,875.00 |
|
EA |
| B135-25 |
GP-60KS | 61kg | 1g |
In Stock |
1 |
$6,135.00 |
|
EA |
| B135-39 |
GP-61K | 61kg | 0.1g |
In Stock |
1 |
$6,740.00 |
|
EA |
| B135-40 |
GP-61KS | 61kg | 0.1g |
In Stock |
1 |
$6,555.00 |
|
EA |
| B135-28 |
GP-100K | 101kg | 1g |
In Stock |
1 |
$6,185.00 |
|
EA |
| B135-31 |
GP-100KS | 101kg | 1g |
In Stock |
1 |
$6,670.00 |
|
EA |
| B135-29 |
GP-102K | 101kg / 61kg | 10g / 1g |
In Stock |
1 |
$5,620.00 |
|
EA |
