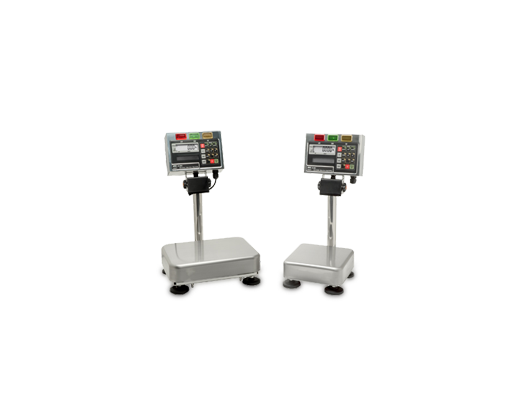

Balances, Checkweighing Scale, FS-i Series, A&D Weighing
The FS-i Series Checkweighing Scales are easy to use, rugged, and feature large bright comparator lights, stainless steel washdown (IP-65) construction with Analog Sweep LCD display, digital keypad, and Setpoint Memory recall for quick, accurate, and reliable measuring, and three user-selectable resolution levels.
- 18mm high LCD Display with Backlight
- Tilting Display Head with Digital Keypad
- Preset Tare
- Multiple Weighing Units: g, kg, lb, oz, and lb-oz
- Stainless Steel Construction
- Waterproof to IP-65 Standard
- NSF Certified
- RE-232 Comparator Output Option
- Rechargeable Sealed Lead-Acid (SLA) Battery Option
- Operator Key Lockout Function
- Large, Bright Comparator Lights — Red (LO), Green (OK), and Yellow (HI) lights are easy to read under any lighting condition
- Three Resolution Levels — Up to 1/17,500 resolution allows for high precision weighing with tight tolerance specifications
- 60-Segment Adjustable Analog Sweep Display — HI/LO Limit, Target, and Full Range modes are ideal for filling applications
- 100-Item DataMemory —Target and Limit values for frequently weighed items can easily be stored and recalled
| Catalog No. |
B138-21 / B138-63 |
B138-4 / B138-64 |
B138-3 / B138-65 |
| Model No. |
FS-6Ki / FS-6KiN |
FS-15Ki / FS-15KiN |
FS-30Ki / FS-30KiN |
| g |
Capacity |
6000 |
15000 |
30000 |
| Resolution |
0.5 |
1 |
2 |
| 1 |
2 |
5 |
| 2 |
5 |
10 |
| kg |
Capacity |
6 |
15 |
30 |
| Resolution |
0.0005 |
0.001 |
0.002 |
| 0.001 |
0.002 |
0.005 |
| 0.002 |
0.005 |
0.01 |
| lb |
Capacity |
15 |
35 |
70 |
| Resolution |
0.001 |
0.002 |
0.005 |
| 0.002 |
0.005 |
0.01 |
| 0.005 |
0.01 |
0.02 |
| oz |
Capacity |
240 |
560 |
1120 |
| Resolution |
0.02 |
0.05 |
0.1 |
| 0.05 |
0.1 |
0.2 |
| 0.1 |
0.2 |
0.5 |
| lb-oz |
Capacity |
15 |
35 |
70 |
| Resolution |
0.1 |
0.2 |
0.5 |
| Display |
7 Sepment LCD (18.6mm Height) with Backlight Analog Sweep Display with Backlight |
| Display Update |
10 Times per Second |
| Power Supply |
AC Main (100V ~ 240V) or SLA Battery (Option)
Battery Life: Approx. 80h (with no backlight, lamp, or interface) |
| Operating Temperature |
-10°C - 40°C / 14°F - 104°F, less than 85% R.H. |
| Weight (Approx.) |
8.1kg / 17.9 lb |
14.9kg / 32.8 lb |
| Weighing Pan Size |
250 x 250mm / 9.8 x 9.8 inch |
380 x 300mm / 15.0 x 11.8 inch |
