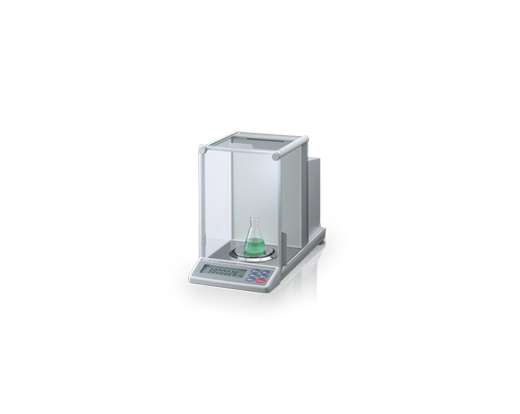

Balances, Analytical, Phoenix GH Series, A&D Weighing

Phoenix Analytical GH Balance Series
The Phoenix Series balances with internal calibration economically provide high-end features and performance. These analytical balances provide advanced resolution, are easy to use and calibrate, and adjust their settings based on environmental changes:

Resolution to 0.01mg
Percentage and Counting Modes Multiple Weighing Units
Tall 251mm (9.88") Weighing Chamber
Built-in Motorized Calibration Weight
One Touch Environmental Filters
GLP/LIMS/ISO Compliant
Anti-static glass minimizes static effects

Features
Specifications

Automatic self calibration, using the internal mass, adapting to changes in temperature
Response adjustment adapting to drafts and/or vibration automatically
Memory function to store weighing data and calibration data. When weighing data is stored only, 200 data can be stored in maximum. Interval memory mode to store the weighing data periodically
Good laboratory practice (GLP) data can output using the RS-232C serial interface
A built-in clock and calendar that can add the time and date to the output data
Underhook, for measuring density and weighing magnetic materials
Multiple weighing units with most of the common units used around the world
Density mode for calculating the density of a solid
Standard RS-232C serial interface to communicate with a computer. Windows communication tools software (WinCT) to allow easy communication with a computer using Windows
When multiple balances have the GH-08 Ethernet interface installed and are connected to a LAN, data can be acquired from them using the WinCT-Plus software

Catalog No		B121-37	B121-38	B121-39	B121-35	B121-36
Capacity/Resolution		GH-120	GH-200	GH-300	GH-202	GH-252
Gram	(g)	120x0.0001	220x0.0001	320x0.0001	220x0.0001/51x0.00001	250x0.0001/101x0.00001
Gram	(mg)	120000x0.1	220000x0.1	320000x0.1	220000x0.1/51000x0.01	250000x0.1/101000x0.01
Decimal Ounce (oz)		4.23x0.00001	7.76x0.00001	11.29x0.00001	7.76x0.00001/1.80x0.000001	8.82x0.00001/3.56x0.000001
Troy Ounce (ozt)		3.86x0.00001	7.07x0.00001	10.29x0.00001	7.07x0.00001/1.64x0.000001	8.04x0.00001/3.25x0.000001
Pennyweight (dwt)		77.2x0.0001	141.5x0.0001	205.8x0.0001	141.5x0.0001/32.8x0.00001	160.8x0.0001/64.9x0.00001
Carat (ct)		600x0.001	1100x0.001	1600x0.001	1100x0.001/255x0.0001	1250x0.001/505x0.0001
Momme (mom)		32.0x0.0001	58.7x0.0001	85.3x0.0001	58.7x0.0001/13.6x0.00001	66.7x0.0001/26.9x0.00001
Grain Unit (GN)		1852x0.002	3395x0.002	4938x0.002	3395x0.002/787x0.0002	3858x0.002/1559x0.0002
Tola (t)		10.29x0.00001	18.86x0.00001	27.44x0.00001	18.86x0.00001/4.37x0.000001	21.43x0.00001/8.66x0.000001
Tael (TL)		3.20x0.00001	5.87x0.00001	8.53x0.00001	5.87x0.00001/1.36x0.000001	6.67x0.00001/2.69x0.000001
Percentage Min Div		0.01%, 0.1% or 1% (auto prompt)
Counting Min Weight		0.1mg
Linearity		0.1mg	0.1mg	0.2mg	0.1mg/0.02mg	0.1mg/0.03mg
Repeatability/Std Dev		±0.2mg	±0.2mg	±0.3mg	±0.2mg/±0.03mg	±0.2mg/±0.10mg
Stabilization Time		Approx. 3.5 sec (0.1mg)/8 sec (0.01mg)
Sensitivity Drift (10°C-30°C)		±2ppm/°C (when automatic self calibration is not used)
Display Refresh		5 times per second/10 times per second
Pan Size		Ø 90mm/3.6 inches
Physical Dimensions		Metric: 217(W) x 442(D) x 316(H)mm; inches: 8.54(W) x 17.4(D) x 12.24(H) inch
Breeze Break Dimensions		Metric: 164(W) x 148.5(D) x 251(H)mm; inches: 6.45(W) x 5.84(D) x 9.88(H) inch
Operating Temperature		5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation)
Weight		Approx. 8.2kg/18 lb
Power		100, 120, 220, 240 VAC (AC Adapter) 50 Hz/60 Hz, 11 VA
Standard Accessories		WinCT in CD-ROM, Manual, AC Adapter
Ext. Cal. Mass (optional)		50g/100g	100g/200g	100g /200g /300g	20g/50g/100g/200g

Ordering Info

Cat No	Model No	Weight Capacity	Min Display	Qty	Price	Qty
B121-37	GH-120	120g	0.0001g	In Stock	1	$3,985.00	EA
B121-38	GH-200	220g	0.0001g	In Stock	1	$4,515.00	EA
B121-39	GH-300	320g	0.0001g	In Stock	1	$5,310.00	EA
B121-35	GH-202	220g / 51g	0.0001g / 0.00001g	In Stock	1	$5,970.00	EA
B121-36	GH-252	250g / 101g	0.0001g / 0.00001g	In Stock	1	$6,570.00	EA

Options

Cat No	Description	Qty/UOM	Price	Qty
B121-9	Ethernet Option for GH-Series	In Stock	1	$340.00	EA
B125-6	Anti-theft Device	In Stock	1	$90.00	EA
B121-25	Density Determination Kit	In Stock	1	$660.00	EA
B135-32	Rechargeable Battery Pack (external)	In Stock	1	$800.00	EA
B147-49	Universal Remote Display	In Stock	1	$315.00	EA
B147-50	Remote Controller	In Stock	1	$750.00	EA
B128-24	Static Eliminator	In Stock	1	$1,300.00	EA
B147-48	Calibration Weight Tweezers	In Stock	5	$220.00	PK
B121-26	Carrying Case for GH Series (While Supplies Last)	In Stock	1	Inquire	EA
B147-32	Foot Switch	In Stock	1	$96.00	EA
B121-10	AC Adapter (120V) - Included with Unit	In Stock	1	$45.00	EA
B121-28	AC Adapter (220V)	In Stock	1	$65.00	EA
B147-56	USB to 9 pin RS-232 Converter	In Stock	1	$65.00	EA
