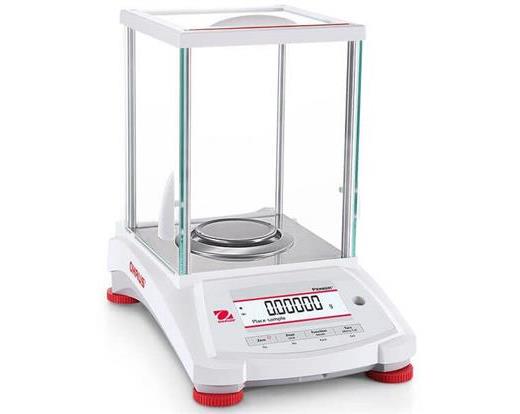

Balances, Analytical Lab Balance, Pioneer Series, Semi-Micro, Ohaus
Combining Economy and High Performance for Essential Weighing
The Pioneer PX5 combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX5 is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
The PX5 offers high accuracy and repeatability for essential weighing applications in laboratory, industrial and education settings at an economical price point. Featuring a cast metal lower housing, sub-pan and stainless steel weighing pan, the PX5 is durably constructed for versatile, long-term use. The PX5 features a second line display for additional information or guidance, a static removal bar for convenient grounding, and USB and RS232 connectivity for easy communication.
Applications- Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display- Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation- AC adapter (included)
Communication- RS232 and USB device (included); GLP/GMP data output with real-time clock (except US version)
| |
B149-22 |
B149-23 |
| Maximum Capacity |
82g |
82g; 220g |
| Readability |
0.01mg |
0.01 mg; 0.1 mg |
| Pan Size |
3.14 inch (80mm) |
| Internal Calibration |
InCal™- Semi Automatic |
| Draftshield |
Included |
| Auxiliary Display Model |
Available as an Accessory |
| Battery Life |
Not Applicable |
| Communication |
RS232; USB |
| Dimensions |
12.17 x 12.64 x 8.23 inch (309 x 321 x 209mm) |
| Display |
2-Line LCD with Backlight |
| Min. Weight (USP, 0.1%, typical) |
20mg |
| Net Weight |
10 lb (4.5kg) |
| Pan Construction |
Stainless Steel |
| Power |
AC Power (Included) |
| Tare Range |
To capacity by subtraction |
| Working Environment |
50°F – 86°F, 80%RH, non-condensing; operability guaranteed between 41°F and 104°F (10°C – 30°C, 80%RH, non-condensing; operability guaranteed between 5°C and 40°C) |
| Units of Measurement |
Carat; Custom; Grain; Gram; Hong Kong Tael; Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Singapore Tael; Taiwan Tael; Tical; Tola |
