Balances, Analytical, Gemini GR Series, A&D Weighing

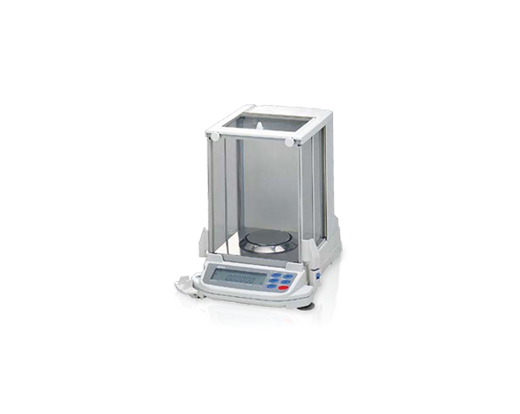

Gemini Analytical GR Balance Series
The Gemini Series balances, with internal calibration, provide a larger weighing chamber and smaller footprint than conventional balances. These analytical balances are easy to use and calibrate, and adjust their settings based on environmental changes.
- Requires 30% less footprint space
- Fully Automatic Self-Calibration
- One Touch Calibration
- Easy Access Door
- Splash Proof Keyboard and Display
- Advanced Stabilization Software
- Automatic Adjustable Environment Setting
- Multiple Weighing UnitsGLP Compliance
- Standard RS-232C allows bidirectional communication with PC
- Standard Underhook
- Quick Reference Card
- Bundled with A&D's new WinCT Software
| Catalog No |
GR-120 |
GR-200 |
GR-300 |
GR-202 |
| Capacity/Resolution |
B126-2 |
B126-1 |
B126-4 |
B126-3 |
| Gram |
(g) |
120x0.0001 |
210x0.0001 |
310x0.0001 |
210x0.0001/42x0.00001 |
| (mg) |
120000x0.1 |
210000x0.1 |
310000x0.1 |
210000x0.1/42000x0.01 |
| Decimal Ounce (oz) |
4.2x0.00001 |
7.4x0.00001 |
10x0.00001 |
7.4x0.00001/1.4x0.000001 |
| Troy Ounce (ozt) |
3.8x0.00001 |
6.7x0.00001 |
9.9x0.00001 |
6.7x0.00001/1.3x0.000001 |
| Pennyweight (dwt) |
77x0.0001 |
135x0.0001 |
199x0.0001 |
135x0.0001/27x0.00001 |
| Carat (ct) |
600x0.001 |
1050x0.001 |
1550x0.001 |
1050x0.001/210x0.0001 |
| Momme (mom) |
32x0.0001 |
56x0.0001 |
82x0.0001 |
56x0.0001/11x0.00001 |
| Grain Unit (GN) |
1851x0.002 |
3240x0.002 |
4784x0.002 |
3240x0.002/648x0.0002 |
| Tola (t) |
10x0.00001 |
18x0.00001 |
26x0.00001 |
18x0.00001/3.6x0.000001 |
| Tael (TL) |
3.1x0.00001 |
5.5x0.00001 |
8.2x0.00001 |
5.5x0.00001/1.1x0.000001 |
| Percentage Min Div |
0.01% |
| Counting Min Weight |
0.1mg |
| Linearity |
±0.0002g |
±0.0002g |
±0.0002g |
±0.0002/±0.00003g |
| Repeatability/Std Dev |
0.0001g |
0.0001g |
0.0001g |
0.0001/0.00002g |
| Stabilization Time |
3.5 seconds |
3.5 seconds |
3.5 seconds |
3.5/8 seconds |
| Sensitivity Drift (10°C-30°C) |
±2ppm/°C (10°C ~ 30°C/50°F ~ 86°F) |
| Display Refresh |
5 times per second/10 times per second |
| Pan Size |
Ø 85 mm/3.3 inches |
| Physical Dimensions |
(mm) |
249(W) x 330(D) x 327(H) |
| (in) |
9.8(W) x 12.99(D) x 12.87(H) |
| Breeze Break Dimensions |
(mm) |
178(W) x 160(D) x 233(H) |
| (in) |
7.01(W) x 6.5(D) x 9.17(H) |
| Operating Temperature |
5°C ~ 40°C/41°F ~ 104°F RH less than 85% |
| Weight |
Approximately 6.0 kg/13.2 lb |
| Power |
100, 120, 220, 240 VAC (AC Adapter) 50Hz/60Hz, 11VA |
| Standard Accessories |
Manual, AC Adapter, Reference Card |
| Ext. Cal. Mass (optional) |
50g/100g |
100g/200g |
200g/300g |
100g/200g |
