BioClave™ Research Sterilizers
Despite the space-saving exterior dimensions of the Bioclaves, the stainless steel chambers are surprisingly large, accommodating a variety of liquids, media, instruments, glassware, plasticware and other common research laboratory items. Both of these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI.

With a large digital display and fully automatic operation, all segments of the cycle (fill, sterilize, exhaust and dry) commence and run to completion by simply pressing the start button. An optional thermal mini-printer is also available for providing a record of sterilization parameters and a USB drive can be used to record settings and transfer them to a PC.

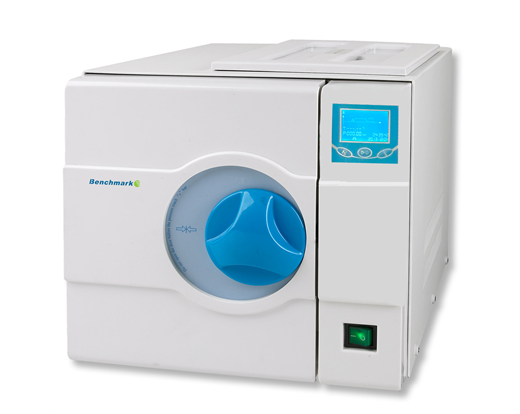

BioClave Mini™ Autoclave Oven- The 8 liter BioClave Mini is preprogrammed to meet basic sterilization needs. Temperature can be selected at either 121°C or 134°C, and the sterilization time is fully adjustable. The economical BioClave Mini is the ideal choice wherever benchtop sterilization is required and space is limited.

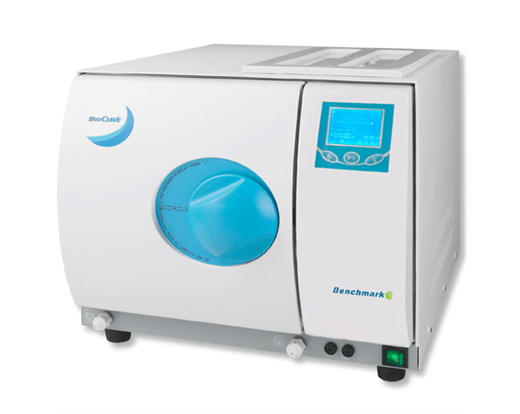

BioClave 16™ Autoclave Oven- The 16 liter BioClave offers preset cycle options (standard programs), for use with liquids, wrapped research instruments or unwrapped instruments/plasticware. An additional option “Dry Only” is also available for additional drying time to be added to the end of a cycle. For special applications, requiring variations in cycle parameters,all settings on the BioClave 16 are fully adjustable.

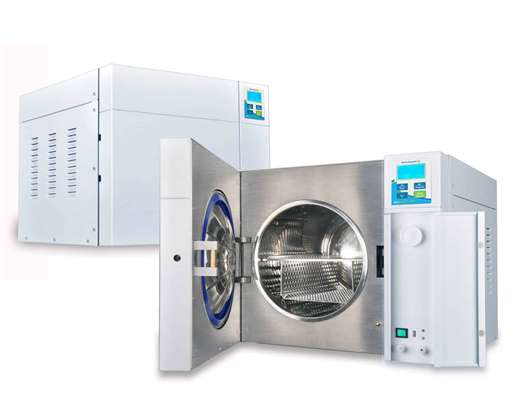

BioClave 28 Autoclave Oven- With similar operation to the BioClave Mini and BioClave 16, the new 28 liter model features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is our only model capable of sterilizing 1 and 2 liters flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.

Operation is fully automatic, meaning all segments of operation (fill, sterilize, exhaust and dry) commence and run to completion by simply pressing “Start”. An optional thermal mini-printer is also available for providing a record of sterilization parameters. In addition, a built in USB port allows for transfer of these parameters to a computer for printing or storage of cycle data.


  • Designed specifically for the sterilization of laboratory research tools
  • Fully automatic; just press start
  • Extremely compact
  • Built in water tank, does not require an external water supply
  • BioClave 28
    • Accepts bottles/flasks up to 2L
    • Adjustable sterilization times
    • USB port for digital documentation of records
  A551-1/1E A551-2/2E A551-3
Model BioClave Mini BioClave 16 BioClave 28
Chamber Volume 8L 16L 28L
Max. Pressure 29 PSI / 2 Bar 29 PSI / 2 Bar 60.5 PSI / 2 Bar
Chamber Dimensions 6.7 x 12.5 inch/ 17 x 31cm 9 x 13.75 inch/ 23 x 35cm 12.6 x 16.4 inch/ 32 x 41.7cm
Tray Dimensions 4.75 x 9.75 inch/ 12 x 24.8cm 6.5 x 10.75 inch/ 16.5 x 27cm
Dimensions (w x d x h) 20 x 13.5 x 12.9 inch
51 x 34 x 33cm
22 x 17.5 x 15.7 inch
56 44.5 x 40cm
25 x 25 x 22 inch
63.5 x 63.5 x 55.9cm
Weight 74 lbs (33kg) 89 lbs (40kg) 209 lbs (95kg)
Electrical 120 or 230V, 50-60Hz, 950W 120 or 230V, 50-60Hz, 1600W 200 or 240V, 50-60Hz, 2300W
Warranty 1 Year

Ordering Info

Cat No Vendor Part No CapacityDescriptionPower Qty Price Qty UOM
A551-1 B4000-M 8LBioClave Mini Research Autoclave120V, 50-60Hz, 950W In Stock 1 $4,119.00 EA
A551-1E B4000-M-E 8LBioClave Mini Research Autoclave230V, 50-60Hz, 950W In Stock 1 $4,119.00 EA
A551-2 B4000-16 16LBioClave 16 Research Autoclave120V, 50-60Hz, 1600W In Stock 1 $5,725.00 EA
A551-2E B4000-16-E 16LBioClave 16 Research Autoclave230V, 50-60Hz, 1600W In Stock 1 $5,725.00 EA
A551-3 B4000-28-220 28LBioClave 28 Research Autoclave240V, 50-60Hz, 2300W In Stock 1 $10,690.00 EA

Options

Cat No Vendor Part No Description Qty/UOM Price Qty UOM
A551-4 B4000-P Printer In Stock 1 $288.00 EA
A551-5 B4000-PA Printer Paper 2.25 inch x 50 feet Roll In Stock 3 $39.00 PK
