Vortex Mixers, Variable-speed Vortexing Unit

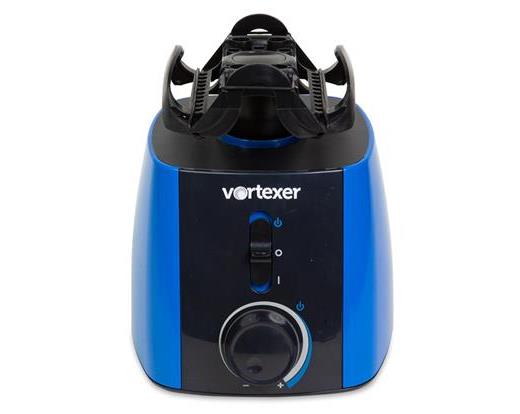

This sleek and modern designed vortex mixer is capable of meeting the mixing requirements of the most popular test tubes used in today’s lab without the need to swap out mixing head units. The innovative design makes maximum use of the space available, providing holding slots for no less than six different sizes of tube and a standard assay plate, while the center pad area can be used for quick hand-held mixing of a vast range of tubes and vessels.
- Infinite position rotary speed control from Off up to approx 3000 rpm
- 3-position Control slider—(top) intermittent, (middle) off, (bottom) continuous
- Stable elastomeric device feet, provide vibration dampening and prevent movement during operation
- Innovative head can be removed for cleaning purposes
- High impact ABS body shell

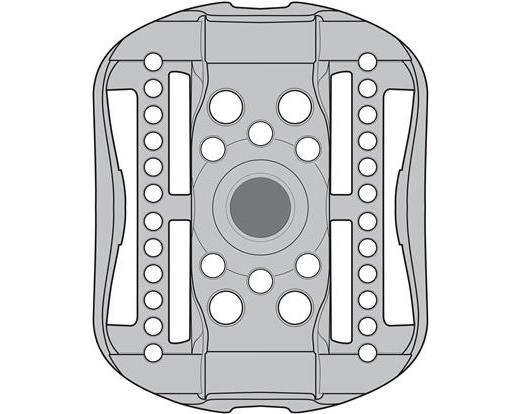

Mixing Head Holding Capacity
- Center pad area for hand held mixing
- Assay plate x 1 (to be used with retention cords)
- 50mL conical tubes x 2 (horizontally mounted)
- 15mL conical tubes x 2 (horizontally mounted)
- 5mL tubes x 2 (horizontally mounted in the same retention space as 15mL)
- 1.5/2mL microfuge tubes x 4 (vertically mounted)
- 0.5mL microfuge tubes x 6 (vertically mounted)
- 0.2mL microfuge tubes (strip tubes) x 24 (vertically mounted)
- Vortex Mixers will now have a standard 5 YEAR Manufacturer Warranty
| Speed Range |
Speed Range: From 0 to 3000 rpm (shaking to vortexing) |
| Orbit |
3.7mm |
| Control |
3 position slider —(top) intermittent, (middle) off, (bottom) continuous |
| Weight |
8.7 lb (3.9kg) |
| Dimensions (W x D x H) |
6.7 x 7.5 x 7.8 inch (17.1 x 19 x 19.7cm) (with mixing head in place) |
| Compliance |
SGS-US-C, CE, CB Scheme, RoHS3, PSE, and WEEE compliant |
| Warranty |
5 Years |
