Tuttnauer® Autoclaves



You have not viewed any products recently.

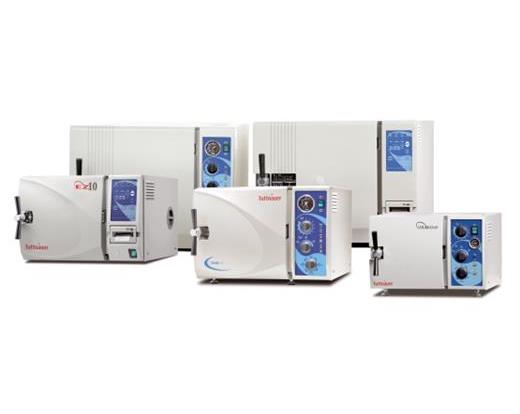

Tuttnauer/Brinkmann Autoclaves
View Larger
Tuttnauer/Brinkmann Autoclaves
  • Tuttnauer/Brinkmann Autoclaves
  • Tuttnauer/Brinkmann Autoclaves

  • alt view name
  • alt view name

Tuttnauer® Autoclaves

Tuttnauer/Brinkmann benchtop autoclaves offer fast, safe, dependable and convenient steam sterilization for liquids, media, instruments, glassware, clothing and waste. Models are available with 7-, 9-, 10- or 15-inch diameter chambers. The self-contained design with refillable reservoir allows control of the water purity for sterilization. The ASME-stamped, 316L stainless steel chamber ensures quality workmanship, safe design, and durability. Tuttnauer/Brinkmann benchtop autoclaves also feature fast and slow exhaust for sterilization of solids and liquids, and a drying cycle to remove residual moisture after sterilization.

  • Portable benchtop steam sterilizers.
  • Easy installation, no plumbing or hardwiring required.
  • Standard slow and fast exhaust.
  • Heat-insulated, double-locking door protects against accidental burns. Door cannot be opened while chamber is under pressure.
  • Over-temperature cutoff and over-pressure valve ensure safe operation.
  • UL and CSA approved
  • Two-year warranty on parts
Analog M Models
  • 60 minute cycle timer
  • Temperature selection from 100 to 134°C (212 to 273°F)
  • Combination pressure and temperature gauge with peak indicator
    The more affordable, manually operated M models feature analog controls and gauges for simple operation.
Electronic E Models
  • Sterilization time to 59 minutes
  • Temperature selection from 105 to 137°C (221 to 279°C)
  • In-line particle filter protects valves
  • Electronic pressure and temperature sensors
  • 'Low water' signal indicates the reservoir needs to be refilled
  • Stand-by heating keeps chamber warm for quicker cycles
    Microprocessor-controlled E Models are completely automatic through every stage of the cycle, including water-fill, heating, sterilization, exhaust and drying. Four programs are fully adjustable for sterilizing solids, liquids, and absorbent materials.
Environmental Lab Model
  • The accelerated cycle time of Model 2540EPK meets EPA guidelines for autoclave operation. It operates on 220V and offers all the features of Electronic E models plus a built-in printer for sterilization cycle validation.
Printer option- Models 2340EP, 2540EO, 3850EP and 3870EP
  • An optional printer is available with electronic models to validate each sterilization cycle for GLP procedures. Each printout documents: temperature, pressure, elapsed drying time, elapsed sterilization time, selected cycle, cycle number and real time and date. In addition, a summary is printed at the end of each cycle. If an error or interruption occurs at any point during the cycle, the event and cause will be documented on the printout.

Chamber Capacity Guide

Model 1730: 5 x 125mL Erlenmeyer Flasks

Model 2340: 12 x 125mL or 4 x 500mL Erlenmeyer Flasks

Model 2540: 12 x 125mL or 4 x 500mL or 3 x 1L(short neck) Erlenmeyer Flasks

Model 3850: 63 x 125mL or 12 x 500mL or 7 x 1L(short neck)or 3 x 2L(short neck) Erlenmeyer Flasks or 15 x 500mL Media Bottles

Model 3870: 68 x 125mL or 17 x 500mL or 10 x 1L(short neck)or 4 x 2L(short neck) Erlenmeyer Flasks or 17 x 500mL Media Bottles
  • Portable benchtop steam sterilizers.
  • Easy installation, no plumbing or hardwiring required.
  • Standard slow and fast exhaust.
  • Heat-insulated, double-locking door protects against accidental burns. Door cannot be opened while chamber is under pressure.
  • Over-temperature cutoff and over-pressure valve ensure safe operation.
  • UL and CSA approved
  • Two-year warranty on parts

  • Ordering Info

    Cat No Vendor Part No DescriptionVoltageChamber(dia x D")Overall Dimensions (DxWxH")Power Qty Price Qty UOM
    A552-1 023210002 Analog Model 1730M, with 3 stainless steel trays120V/50-60 Hz7 x 1216 x 17 x 12.51050W In Stock 1 $4,681.00 EA
    A552-1-220 023210053 Analog Model 1730M, with 3 stainless steel trays220V/50-60 Hz7 x 1216 x 17 x 12.51050W In Stock 1 $4,681.00 EA
    A552-2 023210100 Analog Model 2340M, with 3 stainless steel trays120V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $5,350.00 EA
    A552-2-220 023210151 Analog Model 2340M, with 3 stainless steel trays220V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $5,350.00 EA
    A552-3 023210304 Analog Model 2540M, with 4 stainless steel trays120V/50-60 Hz10 x 1820 x 20 x 151400W In Stock 1 $6,196.00 EA
    A552-3-220 023210355 Analog Model 2540M, with 4 stainless steel trays220V/50-60 Hz10 x 1820 x 20 x 151400W In Stock 1 $6,196.00 EA
    A552-5 023210479 Analog Model 3850M, with 2 stainless steel trays and stand220V/50-60 Hz15 x 2027 x 26 x 212400W In Stock 1 $13,836.00 EA
    A552-4 023210550 Analog Model 3870M, with 2 stainless steel trays and stand220V/50-60 Hz15 x 2734 x 26 x 212700W In Stock 1 $18,197.00 EA
    A552-2E 023210207 Electronic Model 2340E, with 3 stainless steel trays120V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $6,629.00 EA
    A552-2E-220 023210258 Electronic Model 2340E, with 3 stainless steel trays220V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $6,629.00 EA
    A552-3E 023210401 Electronic Model 2540E, with 4 stainless steel trays120V/50-60 Hz10 X 1820 x 20 x 151400W In Stock 1 $7,362.00 EA
    A552-3E-220 023210452 Electronic Model 2540E, with 4 stainless steel trays220V/50-60 Hz10 x 1820 x 20 x 151400W In Stock 1 $7,374.00 EA
    A552-5E 023210487 Electronic Model 3850E, with 2 stainless steel trays220V/50-60 Hz15 x 2027 x 26 x 212400W In Stock 1 $16,162.00 EA
    A552-4E 023210606 Electronic Model 3870E, with 2 stainless steel trays and stand220V/50-60 Hz15 x 2734 x 26 x 212700W In Stock 1 $20,998.00 EA
    A552-2EP 023210215 Electronic Model 2340EP, with printer, printer paper and 3 stainless steel trays120V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $7,175.00 EA
    A552-2EP-220 023210266 Electronic Model 2340EP, with printer, printer paper and 3 stainless steel trays220V/50-60 Hz9 x 1820 x 20 x 151400W In Stock 1 $7,187.00 EA
    A552-3EP 023210410 Electronic Model 2540EP, with printer, printer paper and 4 stainless steel trays120V/50-60 Hz10 x 1820 x 20 x 151400W In Stock 1 $7,910.00 EA
    A552-3EP-220 023210461 Electronic Model 2540EP, with printer, printer paper and 4 stainless steel trays220V/50-60 Hz10 x 1820 x 20 x 151400W In Stock 1 $7,922.00 EA
    A552-3EPK 023210444 Environmental Electronic Model 2540EPK, with printer, printer paper and 4 stainless steel trays220V/50-60Hz10 x 1820 x 20 x 152100W In Stock 1 $8,766.00 EA
    A552-5EP 023210495 Electronic Model 3850EP, with printer, printer paper, 2 stainless steel trays and stand220V/50-60 Hz15 x 2027 x 26 x 212400W In Stock 1 $16,398.00 EA
    A552-4EP 023210568 Electronic Model 3870EP, with printer, printer paper, 2 stainless steel trays and stand220V/50-60 Hz15 x 2734 x 26 x 212700W In Stock 1 $21,124.00 EA

    Options

    Cat No Vendor Part No Description Qty/UOM Price Qty UOM
    A552-12 023212005 Printer, for Models 2340E, 3540E and 3870E In Stock 1 $999.00 EA

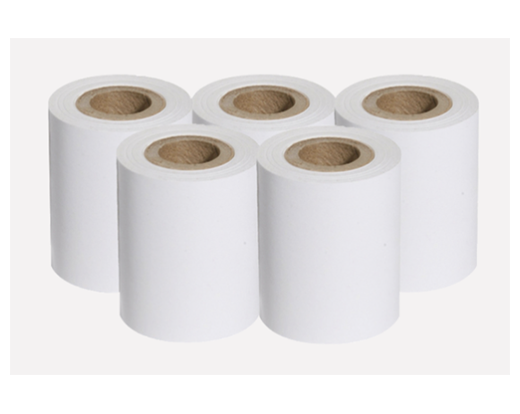

    A552-14 023212200 Printer Paper, for Models 2340EP, 2540EP, 3870EP In Stock 1 $52.00 EA
    A552-15 023212609 Stand, for Models 3870M, 3870E and 3870EP In Stock 1 $711.00 EA
