Thermometers, Basic Type K Thermometer
View Larger
Thermometers, Basic Type K Thermometer
Tiny meter with all the necessary features
Although mini sized, light weight and inexpensive, these units provide extremely accurate and reliable temperature measurement with all the versatility and range of type K thermometers. Features relative, min/max/ave temperature, hold, and touch tone buttons. Results are displayed on a large 1¼" x 1¾" LCD. An adjustment allows the user to easily calibrate to ice point or any other standard. These units come ready to use with a 9V battery and beaded wire probe (Ambient Type K probe).
Certificate of Compliance Traceable to N.I.S.T. (T202-29C)
Specifies that the standards against which the product has been certified or calibrated were themselves calibrated by the National Institute of Standards and Technology (N.I.S.T.), or with N.I.S.T. calibrated equipment under conditions specified by N.I.S.T.
Thermometer Probe- T202-30
The Type K is the most common general purpose thermocouple with a sensitivity of approximately 41µV/°C. A wide variety of probes are available in its -200°C to +1350°C / -330°F to +2460°F range. Type K wire color standard is yellow (+) and red (-).
Thermometer Basic Type K- T202-29 & T202-29C |
|
Range |
Res. |
Accuracy |
Operating Environment |
Storage Environment |
Type K |
-200 to 1370°C
-328 to 2498°F |
0.1°C |
±0.05% rdg + 0.7°C, 1.4°F when inside the range of 23± 5°C, < 80%RH OR 0.01% of reading + 0.03°C per each °C outside the specified range of 23± 5°C or 73± 9°F |
5°C to 40°C
(41°F to 104°F),
RH <80% |
10°C to 60°C
(14°F to 140°F),
RH <70% |

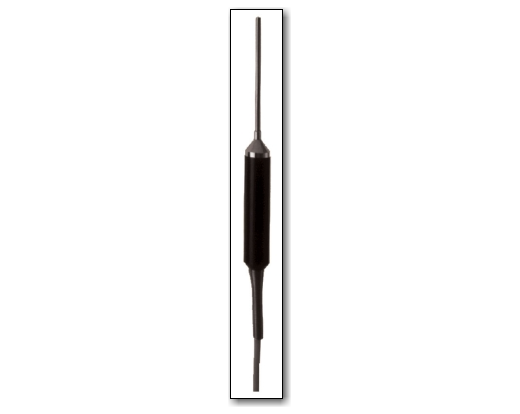

Small Type K Immersion Thermometer Probe- T202-30 |
|
Application |
Temperature Range |
Dimensions |
Type K |
Small |
-50 to 300ºC
-58 to 572ºF |
Handle Length: 4.5" (114mm)
Probe Length: 4" (102mm)
Probe Diam: 2mm
Cord Length: 40" |
