Refrigerators, TSG Series, General Purpose Laboratory Refrigerator, Thermo Scientific
TSG Series General Purpose Laboratory Refrigerators
Thermo Scientific TSG Series general-purpose laboratory refrigerators are designed with your needs in mind. The TSG Series is ideal for the demanding requirements of daily use in research, clinical, and industrial laboratories storing non-critical products such as reagents, media, proteins, and other samples requiring a 2° to 10°C controlled environment.
- Featuring a wide range of cabinet sizes from 12 cu.ft. to 72 cu.ft.
- Whisper-quiet operation
- ENERGY STAR certified Temperature, door ajar, and power failure (with battery back-up) alarms
- Green, natural refrigerants
- Adaptive defrost
- Glass (double pane) or solid door configurations
- Choice of white painted interior and exterior, or stainless steel interior and gray exterior
- Digital controller
- Rear access port
- Remote alarm contacts
- Keyed door lock(s)
- LED interior lighting
- Low heat output
- Warranty: varies by country, please contact us for details
| Industry Leading Parts and Labor Warranty: 4 years; Industry Standard Compressor Warranty: 5 years |
| |
R203-125 |
| Capacity |
12cu.ft. (339L) |
Exterior Dimensions
(L x W x H) |
25 x 24.75 x 75.8 inch
(63.5 x 63 x 192.6cm) |
| Exterior Finish |
White |
Interior Dimensions
(D x W x H) |
20.75 x 21 x 45.75 inch
(52.7 x 53.3 x 116.2cm) |
| Interior |
Painted white steel |
| Shipping Weight |
230 lb (105kg) |
| Electrical Requirements |
115V / 60Hz / 5A |
| Ports |
1 Rear access port |
| Temperature Range |
2° to 10°C |
| Plug Type |
NEMA 5-15P |
| Doors, Door Style |
1, Glass |
| Access Security |
Keyed door lock |
| Shelves |
4 full |
| Shelf Capacity |
Full: 100 lbs (45kg) |
| Temperature Control |
Digital Microprocessor |
| Refrigerant |
R290 |
| Defrost |
Adaptive Defrost |
| Certifications/Compliance |
cULus, Energy Star |
| |
R203-126 |
R203-128 |
R203-127 |
R203-129 |
R203-123 |
R203-131 |

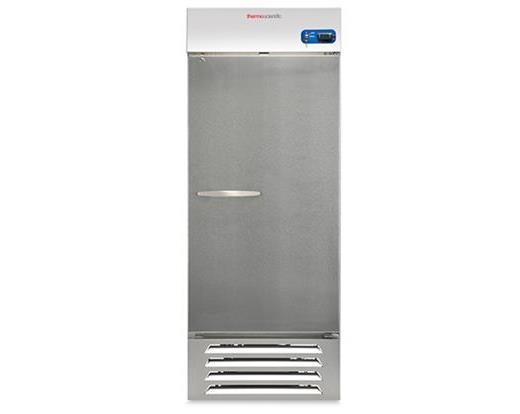

R203-130 |
R203-132 |
| Capacity |
23cu.ft. (651L) |
27cu.ft. (764L) |
Exterior Dimensions
(L x W x H) |
32 x 27.75 x 81 inch
(81.3 x 70.5 x 205.7cm) |
32 x 30.75 x 81 inch
(81.3 x 78.1 x 205.7cm) |
| Exterior Finish |
White |
Gray |
White |
Gray |
White |
Gray |
White |
Gray |
Interior Dimensions
(D x W x H) |
28.5 x 24 x 61.8 inch
(72.4 x 61 x 157cm) |
28.5 x 27 x 61.8 inch
(72.4 x 68.6 x 157cm) |
| Interior |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
| Shipping Weight |
392 lb (178kg) |
386 lb (175kg) |
| Electrical Requirements |
115V / 60Hz / 5.8A |
115V / 60Hz / 3A |
| Ports |
1 Rear access port |
| Temperature Range |
2° to 10°C |
| Plug Type |
NEMA 5-15P |
| Doors, Door Style |
1, Glass |
1, Solid(stainles steel) |
1, Glass |
1, Solid(stainles steel) |
| Access Security |
Keyed door lock |
| Shelves |
4 full |
| Shelf Capacity |
Full: 100 lbs (45kg) |
| Temperature Control |
Digital Microprocessor |
| Refrigerant |
R290 |
| Defrost |
Adaptive Defrost |
| Certifications/Compliance |
cULus, Energy Star |
| |
R203-133 |
R203-134 |
R203-135 |
R203-137 |
R203-136 |
R203-138 |
R203-139 |

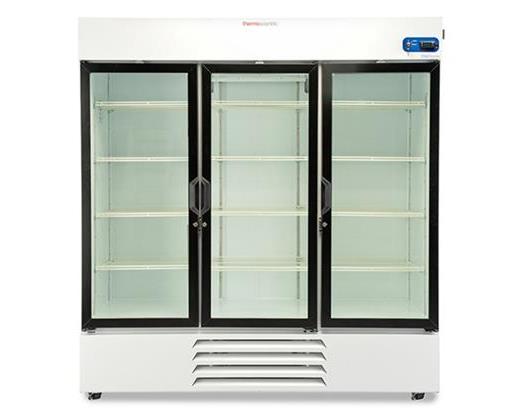

R203-120 |
| Capacity |
45cu.ft. (1274L) |
49cu.ft. (1387L) |
72cu.ft. (2038L) |
Exterior Dimensions
(L x W x H) |
32 x 52.7 x 81 inch
(81.3x134x205.7cm) |
32 x 52.7 x 81 inch
(81.3 x 134 x 205.7cm) |
32 x 75.7 x 81 inch
(81.3x192.4x205.7cm) |
| Exterior Finish |
White |
Gray |
White |
Gray |
White |
Gray |
White |
Gray |
Interior Dimensions
(D x W x H) |
27 x 49 x 61.8 inch
(68.6x124.5x157cm) |
28.5 x 49 x 61.8 inch
(72.4 x 124.5 x 157cm) |
28.5 x 72 x 61.8 inch
(72.4 x 183 x 157cm) |
| Interior |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
Painted white steel |
Stainless steel |
| Shipping Weight |
561lb (255kg) |
597 lb (271kg) |
733 lb (332kg) |
| Electrical Requirements |
115V / 60Hz / 5A |
115V / 60Hz / 8.8A |
115V / 60Hz / 9.9A |
| Ports |
1 Rear access port |
| Temperature Range |
2° to 10°C |
| Plug Type |
NEMA 5-15P |
| Doors, Door Style |
2, Sliding Glass |
2, Glass |
2, Solid(stainless steel) |
3, Glass |
| Access Security |
Keyed door lock |
| Shelves |
8 full |
8 full |
12 full |
| Shelf Capacity |
Full: 100 lbs (45kg) |
| Temperature Control |
Digital Microprocessor |
| Refrigerant |
R290 |
| Defrost |
Adaptive Defrost |
| Certifications/Compliance |
cULus, Energy Star |
