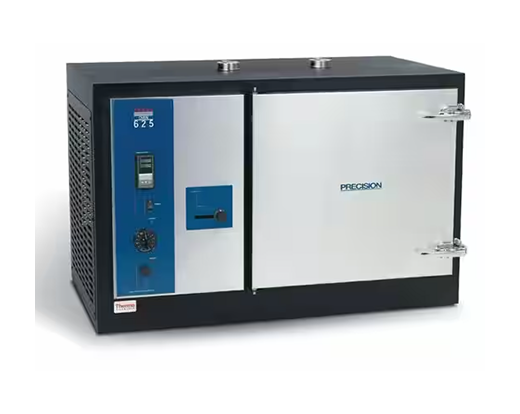

Precision High-Performance Ovens, Thermo Scientific
Thermo Scientific™ Precision high-performance ovens are built for drying applications requiring high temperatures, ultra-precise temperature stability and reproducibility with a very broad temperature range of ambient +15° to 325°C. High-quality construction and high-efficiency insulation provide temperature uniformity as precise as ±0.5°C with excellent stability and air exchange within the chamber.
Mechanical convection provides uniform heating, precise temperature control and fast drying using a blower that circulates heated air in a horizontal airflow pattern.
Includes: Two nickel-plated nontip shelves
Warranty and Service Offering: 12 months, parts and labor
Compliance: ASTM* E145 Type IIA, ASTM D-2436, and UL 746B performance/uniformity standards
Certifications: All models are UL listed
Recommended for:
- Drug metabolism studies
- Dry content analysis
- Moisture determinations
- Tobacco industry
Requires hardwired installation by a qualified technician
Advanced Microprocessor PID Controls
- Bright LED display of actual and setpoint temperatures
- Built-in 12-hour mechanical timer along with user-adjustable safety thermostat allows for power cut-out in case of overtemperature
- Highly responsive RTD sensor provides temperature sensitivity of ±0.1°C or better
- High efficiency insulation ensures uniformity ±0.5° at 100°C
- RS-422 capability for computer control and datalogging
Energy- and Safety-Efficient Construction
- Turbo blowers for efficient drying are side-mounted within stainless-steel chamber
- All stainless-steel interior
- Stainless-steel exterior door with fiberglass gasket for secure, tight seal
- Cold-rolled, chemical-resistant steel cabinet with powder-coated finish
- High-limit safety with built-in circuit breaker protects oven from power surges
- Fiberglass door gasket prevents heat loss
- Low-density heating elements ensure long life
- Nontip shelves spaced 4cm (1.6 inch) apart quickly, easily remove for thorough cleaning
Model 605P:
- Extra baffle provides low air flow for precise drying and testing of materials with minimal disruption of volatile components
Model 625S:
- Rear blowout panel with retaining cage and positive action front-door catches for volatile material testing
| Specifications |
| Temperature Range |
Ambient 15° to 325°C |
| Temperature Control |
Microprocessor |
| Temperature Display |
2-line, 4-digit LED |
| Temperature Sensitivity |
±0.1°C |
| Uniformity |
±0.5° at 100°C; ±1.0° at 200°C; ±2.5° at 300°C |
Catalog Number
(Manufacturer No.) |
Model |
Capacity |
Interior D x W x H |
Exterior L x W x H |
Electrical Requirements |
Heatup Time to 325°C |
Output Power |
Weight |
N136-3
(6050) |
605 |
39.6L (1.4 cu. ft.) |
33 x 36 x 33cm (13 x 14 x 13 in.) |
61 x 97.8 x 63.5cm (24 x 38.5 x 25 in.) |
120V 50/60Hz, 2500w/20.8A |
60 min. |
8538 BTU/hr. |
104.3kg (230 lb.) |
N136-4
(6051) |
605 |
39.6L (1.4 cu. ft.) |
33 x 36 x 33cm (13 x 14 x 13 in.) |
61 x 97.8 x 63.5cm (24 x 38.5 x 25 in.) |
208/230V 50/60Hz, 2500w/10.9A |
60 min. |
8538 BTU/hr. |
104.3kg (230 lb.) |
N136-5
(6052) |
605P |
39.6L (1.4 cu. ft.) |
33 x 36 x 33cm (13 x 14 x 13 in.) |
61 x 97.8 x 63.5cm (24 x 38.5 x 25 in.) |
120V 50/60Hz, 2500w/20.8A |
60 min. |
8538 BTU/hr. |
104.3kg (230 lb.) |
N136-6
(6053) |
605P |
39.6L (1.4 cu. ft.) |
33 x 36 x 33cm (13 x 14 x 13 in.) |
61 x 97.8 x 63.5cm (24 x 38.5 x 25 in.) |
208/230V 50/60Hz, 2500w/10.9A |
60 min. |
8538 BTU/hr. |
104.3kg (230 lb.) |
N136-7
(6054) |
625 |
113.3L (4.0 cu. ft.) |
48.3 x 48.3 x 48.3cm (19 x 19 x 19 in.) |
71.1 x 114.3 x 73.7cm (28 x 45 x 29 in.) |
208/230V 50/60Hz 3700w 16.1A |
50 min. |
12,636 BTU/hr. |
114.3kg (252 lb.) |
N136-8
(6055) |
625S |
113.3L (4.0 cu. ft.) |
48.3 x 48.3 x 48.3cm (19 x 19 x 19 in.) |
71.1 x 114.3 x 73.7cm (32 x 45 x 29 in.) |
208/230V 50/60Hz 3700w 16.1A |
50 min. |
12,636 BTU/hr. |
132.5kg (292 lb.) |
N136-9
(6056) |
645 |
269L (9.5 cu. ft.) |
91.4 x 61 x 48.3cm (36 x 24 x 19 in.) |
78.7 x 165.1 x 91.4cm (31 x 65 x 36 in.) |
208/230V 50/60Hz 4800w 20.9A |
45 min. |
16,393 BTU/hr. |
188.2kg (415 lb.) |
