Microplates, Microplate Reader, UV-Vis, SmartReader™

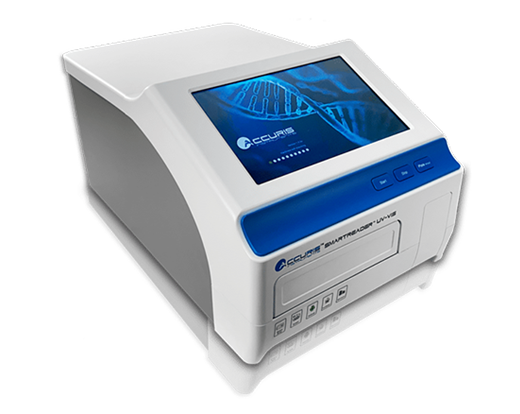

SmartReader UV-Vis Microplate Reader
The Accuris SmartReader UV-Vis Microplate Reader has been designed with ease-of-use and fast results in mind. This instrument brings extensive capabilities to the lab bench and is designed for the busy lab with multiple users. The large touch screen command center is extremely user-friendly and allows for fast set up of new protocols, as well as modifying and running existing protocols.
High Throughput Capability

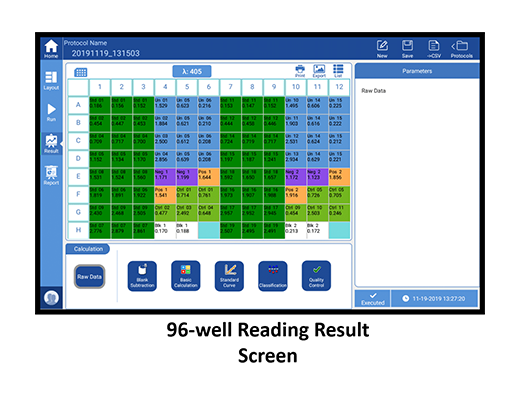

The MR9610 is designed for efficient processing of multiple samples and accepts standard 96 well plates as well as 384 well plates for high density screening. The plate layout interface allows for a quick and intuitive setup of a plate well’s contents. Users can highlight and label multiple wells to save time. The display shows a graphical representation of the plate. Users can label each well as required for: “known standard”, “unknown sample”, “blank well” , “QC Control well”, “positive control”, “negative control”, and “empty”.

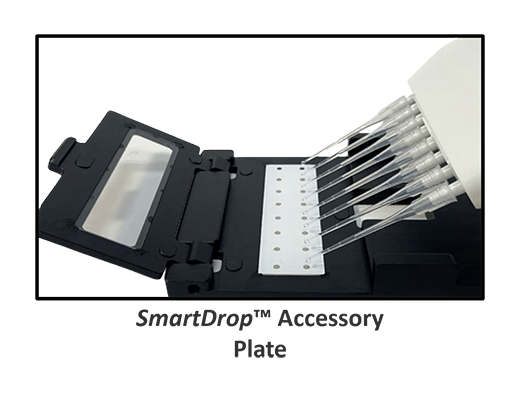

SmartDrop™ Accessory Plate
Absorbance measurements of exceptionally small volumes (<0.5ul) can be achieved using the SmartDrop™ Accessory Plate. The SmartDrop™ plate accommodates up to 16 samples and is ideal for checking nucleic acid concentrations and purity for Next Gen Sequencing, or protein concentrations.
- Intuitive, 10-inch color touch screen control panel
- Accepts both 96 & 384-well plates
- Monochromator-based system
- No filters required
- Wavelength range from 200 to 1000nm
- Stand-alone design
- No PC or special software required
- USB port for flash drive data transfer
| Model |
Accuris SmartReader UV-Vis |
| Plates Accepted |
96-well and 384-well flat bottom |
| Display |
10-inch color touch screen |
| Controls |
Touch screen and mouse |
| Light Source |
Xenon Flash Lamp |
| Wavelength range |
200-1000nm |
| Wavelength Precision |
±2nm |
| Wavelength Accuracy |
±2nm |
| Wavelength selection |
Monochromator |
| Read-out range |
0 – 4.0 OD |
| Detector |
Dual silicon photoelectric detectors for measurement and reference |
| Linearity @ 450nm |
R2≥ 0.999, (0.0 – 3.0) |
| Accuracy @ 450nm |
1.0% + 0.003 Abs (0 – 2.0); 2.0% (2.0 – 2.5 Abs) |
| Precision @ 450nm |
CV < 0.5% or SD <0.003 (Precision mode); CV < 1.0% (Fast mode) |
| Stability @ 450nm |
< 0.005A , (0.0 – 2.0); < 2% (2.0 – 2.5 Abs) |
| Measurement speed |
96 well plate: <6 seconds (fast mode); <25 seconds (precision mode)
384 well plate: <74 seconds (only precision mode available for 384) |
| Plate shaking |
Linear; three levels of shaking speed |
| Incubator |
From ambient 5 to 45°C |
| Temperature Uniformity |
±0.5°C @ 37°C |
| Storage |
16G memory, more than 10,000 test records can be stored |
| Connection Ports |
3 USB ports, for PC, printer and USB-flash drive |
| Power supply |
DC24V 6.5A |
| Dimensions(W×D×H) |
30 x 50 x 26cm / 11.8 x 19.7 x 10.25 inch |
| Weight |
15.5kg / 34 Lbs |
