Lauda Heating Bath/Circulators, Proline, Models P5, P5C and P18
All Models include:
Thermostatic bath/circulator with latest microprocessor technology
Easily readable green LED display for temperature
User-friendly menu guidance. Simple operation by means of 3 keys. Additional key Tmax for excess temperature
EasyUse system for simple operation of the whole unit
SelfCheck Assistent for system diagnosis
Fully electronic continuous controller with PID action for internal and external control
PowerAdapt system for the use of the maximum possible amount of heat as long as permitted by the power supply system
Low-level protection and adjustable over-temperature protection with acoustic alarm. Float switch for identifying of low or high level
LAUDA Varioflex pump (pressure/suction) with 8 selectable levels
Option for upgrading with up to 2 interfaces (RS 232/485, analogue or contact modules)
Installed cooling coil, pump connectors on the side and in the back, installed bypass
Bath vessel made of stainless steel (insulated, with handles and drain valve)
Standard accessories: 1 bath cover, 2 nipples and 4 closing plugs for pump connectors, 2 nipples for cooling coil

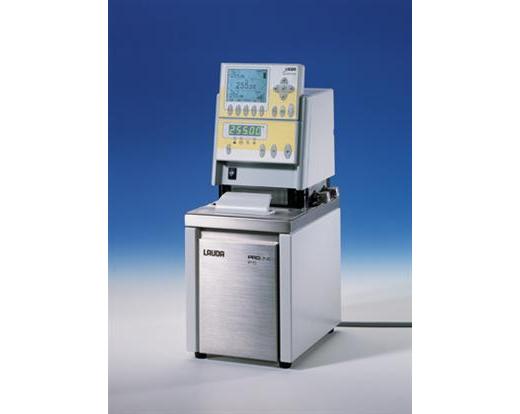

Additional Features for Proline P5C (W325-36):
Back-lit graphic LCD display with high resolution and different display modes
Additional green LED display for temperature
Input either via cursor keys, numeric soft keys or both
Command console can be detached and used as remote control
Optically decoupled RS 232/485, analog or contact modules
Programmer with 150 temperature/time segments that can be separated into 5 programs
Timer function for switching on the thermostat, entering the stand-by mode or running of programs
| Model Number |
Working Temperature Range |
Working Temperature Range With External Cooling |
Temperature Control |
Heater Power |
Pump Pressure Max. |
Pump Suction Max. |
Pump Flow Max. |
Pump Flow (Suction) Max. |
Bath Volume |
Size of Bath (W x D x H) |
Overall Dimensions (W x D x H) |

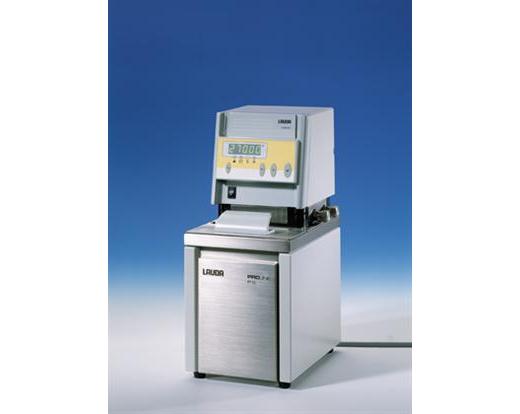

| W325-34 |
35°C to 300°C |
-30°C to 300°C |
±0.01°C |
3.5 kW |
0.7 bar |
0.4 bar |
25L/min |
23L/min |
5.5 L |
150 x 50 x 200 mm |
200 x 260 x 454 mm |

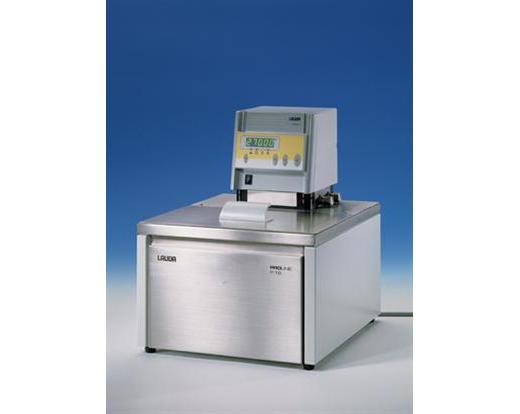

| W325-35 |
30°C to 300°C |
-30°C to 300°C |
±0.01°C |
3.5 kW |
0.7 bar |
0.4 bar |
25L/min |
23L/min |
19 L |
300 x 200 x 200 mm |
370 x 410 x 454 mm |
| W325-36 |
35°C to 300°C |
-30°C to 300°C |
±0.01°C |
3.5 kW |
0.7 bar |
0.4 bar |
25L/min |
23L/min |
5.5 L |
150 x 50 x 200 mm |
200 x 260 x 454*mm |
*without console, otherwise 56 mm higher
