Incubators, Innova® 42, Incubator Shakers, New Brunswick

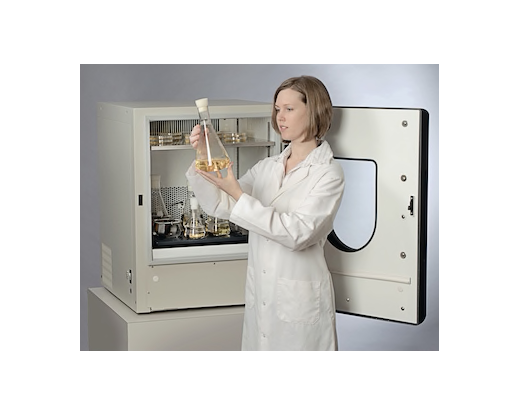

Innova 42/42R Incubator Shakers
The Innova 42 and 42R (refrigerated) shakers are our most versatile incubator shakers in terms of placement and options. They can be stacked up to two units high and can also be placed on or under a standard height laboratory bench. In every scenario, the side opening door/s allow users access right up to the chamber. Options include a static culture drawer, gassing manifold, remote alarm, and humidity monitor and drip pan. Additionally, a photosynthetic light bank and UV germicidal light are available for the 42R.
The cast iron triple-eccentric counterbalanced drive is specifically designed to support high-speed applications and heavy workloads– the design has stood the test of time for over 70 years and continues to enable scientists today. The simple user interface allows for easy programming of speed, temperature, time and when installed, the photosynthetic light bank. The VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.
- Continuous, timed or Multi-step programming
- Programmable Innova controls automatically changes temperature, speed, and optional photosynthetic and UV germicidal lights at timed intervals (Storage up to 4 individual programs with each 15 steps)
- Large viewing window and internal light provide easy viewing of samples without the need to open the door
- Integrated sub platforms diverts spills away from drive
- Built in spill pan catches accidental spills to aid cleaning and protects drive mechanism. Also allows use as a water reservoir to reduce sampe evaporation
- Platforms (sold separately) accommodates flasks up to 6L (configuration dependant) as well as test tube racks and microplate holders
- One height adjustable static shelf included. Optional culture drawer sold separately (allowing reduced sample desiccation)
| |
S171-104 |
S171-105 |
S171-107 |
| External depth (with lid/door open) |
131cm (51.6 inch) |
| Timer |
0.1 - 99.9h, continuous |
| Power Supply |
120V, 60Hz |
| Dimensions (W x D x H) |
63.5 × 74.5 × 81.8cm (25 × 29.3 × 32.8 inch) |
| Weight w/o accessories |
98.5kg (217 lb) |
121kg (267 lb) |
| Temperature range |
Ambient +5°C to 80°C |
20°C below ambient to 80°C |
| Audible and visual alarms |
Yes |
| Temperature uniformity |
±0.25°C at 37°C |
| Available program modes |
Constant speed and temperature, Programmable multi-steps, RS-232 communication port |
| Drive mechanism |
Triple-eccentric counterbalanced drive |
| Gassing manifold |
Yes |
| Water/Humidity monitoring |
Yes |
| In chamber power receptacle |
Yes |
| Internal convenience light |
Yes |
| Memory |
Non volatile with automatic power failure restart |
| Motor Type |
Solid state, DC brushless motor |
| Photosynthetic lighting |
No |
Yes |
| Platform Size |
46 × 46cm (18 × 18 inch) |
| Refrigerated |
No |
Yes |
| Speed Range |
25 - 400 rpm; 25 - 300 rpm when using flasks >500mL in stacked devices |
| Multi-step programming |
Yes |
| Steps per program |
15 |
| Stored programs |
4 |
| cETLus and CE marked |
Yes |
| Agitation Orbit |
1.9cm (0.75 inch) |
2.5cm (1 inch) |
